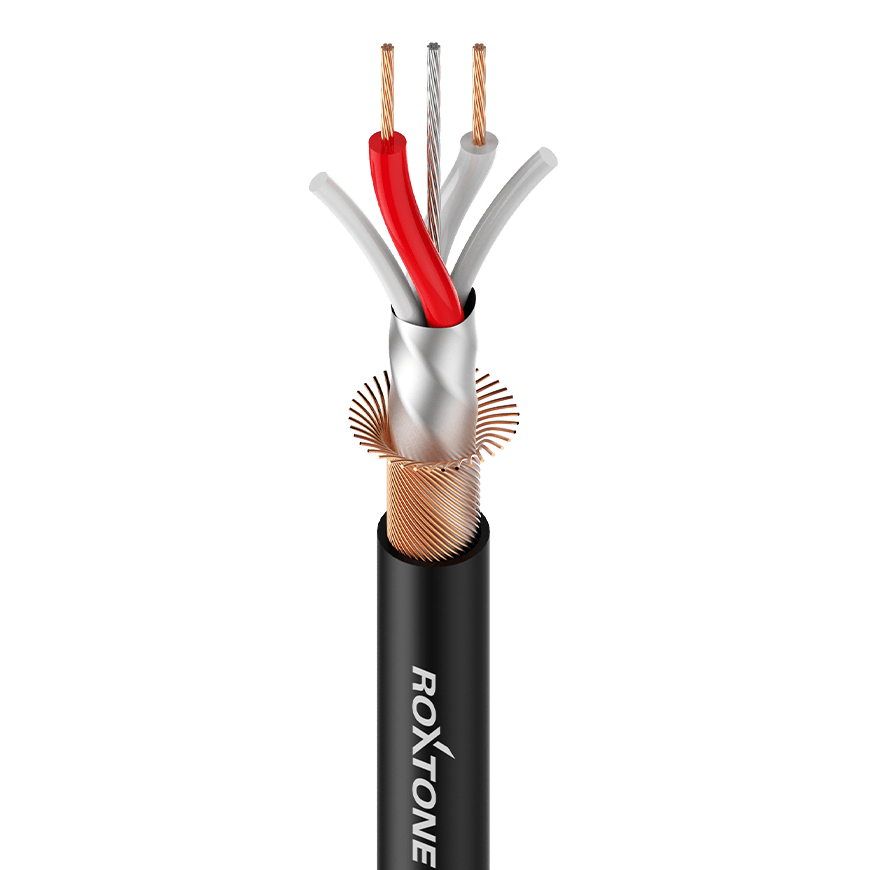

Key Specifications

Jacket Diameter

PVC 5.2 mm

AWG

24

No. of Inner Conductors

2 x 0.22 mm²

Copper Strand per Conductor

7 x 0.20 mm

Conductor Insulation

PE 1.70 mm

Drain Wire

Tin plated copper 10 x 0.15 mm

Shielding

Copper spiral shielding with 80 x 0.10 mm + AL/PT-foil + PE filler

Shielding Factor

100 %

Temperature Range

Min. -20 °C / Max. +70 °C

Packaging

100/300 m roll

Electrical Data

Capac. Cond./Cond. (per 1 m)

43 pF

Capac. Cond./Shield. (per 1 m)

104 pF

Cond. Resistance (per 1 m)

82 mΩ

Shield. Resistance (per 1 m)

23 mΩ
