Key Specifications

Product / Accessory Type

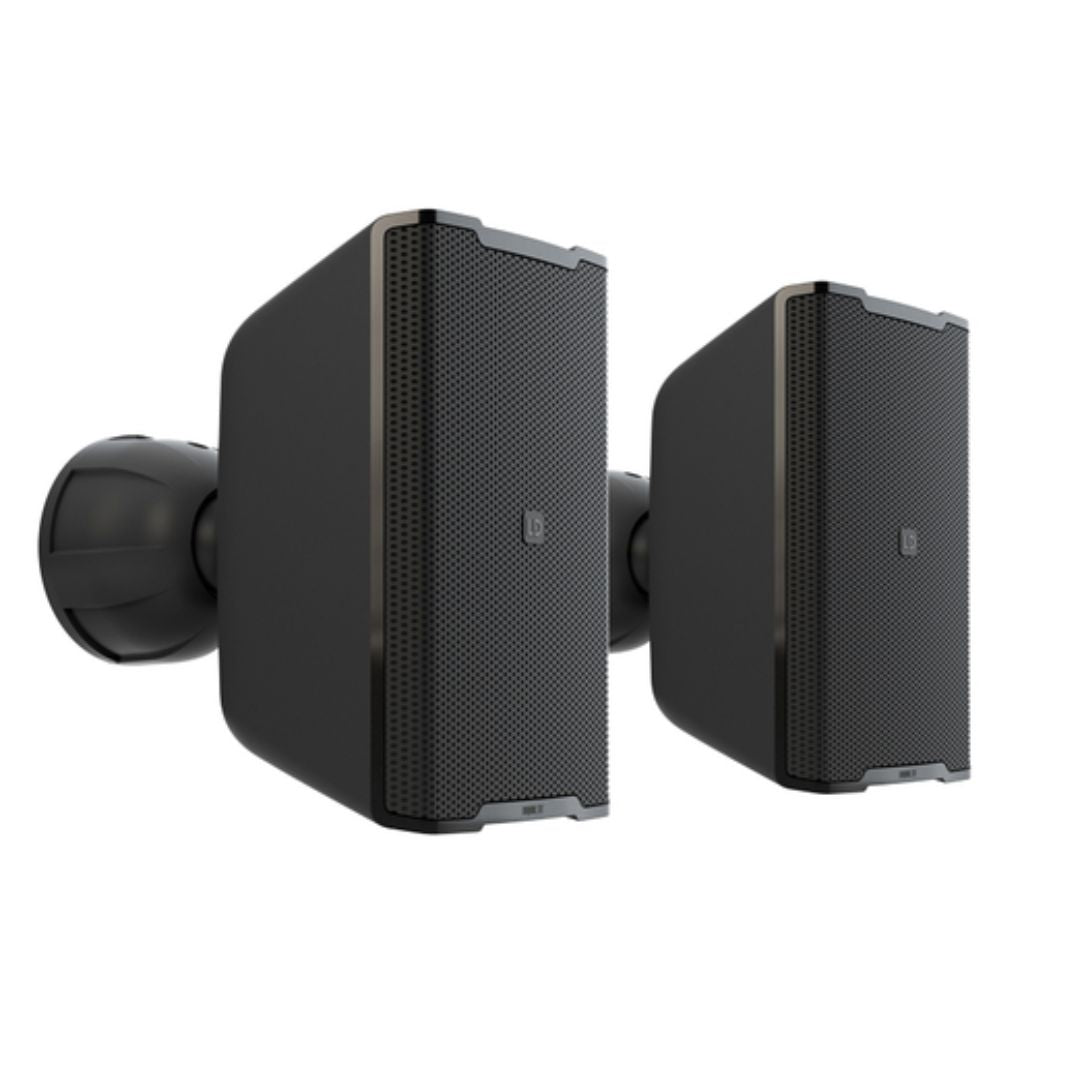

Passive 2-Way Outdoor / Commercial Surface-Mount Loudspeaker

Enclosure Material & Construction

ABS Enclosure (Closed Cabinet Design with Aluminum Front Grille & Wall Bracket Mounting)

Environmental Protection Rating

IP65 Weatherproof / Weather-Resistant Rating

Product Color & Finish

Black Finish (RAL 9005)

Acoustic & Electrical Performance Specifications

Power Handling Capacity (Low-Impedance)

30 W Continuous RMS / 60 W Peak

System Operating Modes

Low Impedance (16 Ohms), 70 V Line Transformer, 100 V Line Transformer

Transformer Power Taps (100 V / 70 V)

30 W, 6 W, 3 W, 1.5 W Switchable Taps

Nominal System Impedance

16 Ohms (Bypass Mode)

Sensitivity (1 W / 1 m)

80 dB SPL

Frequency Response

85 Hz to 20,000 Hz (-10 dB, rel. Avg)

Nominal Coverage Dispersion (H×V)

120° Horizontal x 80° Vertical

Crossover Frequency

2,200 Hz (2.20 kHz)

Speaker Component Specifications

Low-Frequency Transducers (Bass Driver)

1x 76.20 mm (3.00") Custom Woofer with 25.40 mm (1.00") Voice Coil & Ferrite Magnet

High-Frequency Transducers (Tweeter)

1x 25.40 mm (1.00") Custom Compression Driver / Tweeter with 25.40 mm (1.00") Voice Coil & Neodymium Magnet

Connectivity, Environment & Included Accessories

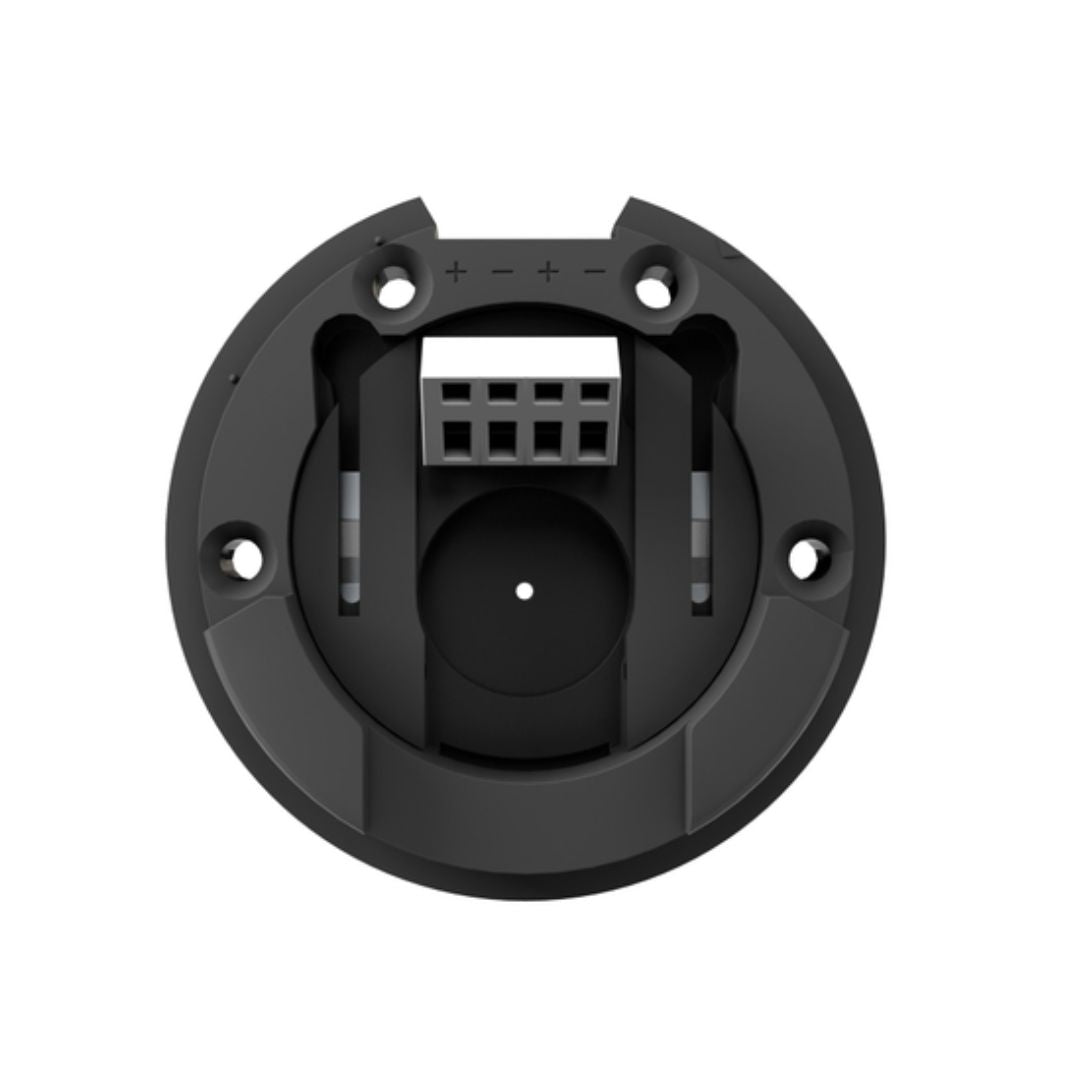

Audio Input Connector

4-Pin Terminal Block (Euroblock) / 5.08 mm Pitch Connector

Environmental Operating Limits

Operating Temperature Range: -30 °C to 50 °C (-22 °F to 122 °F)

Included Accessories

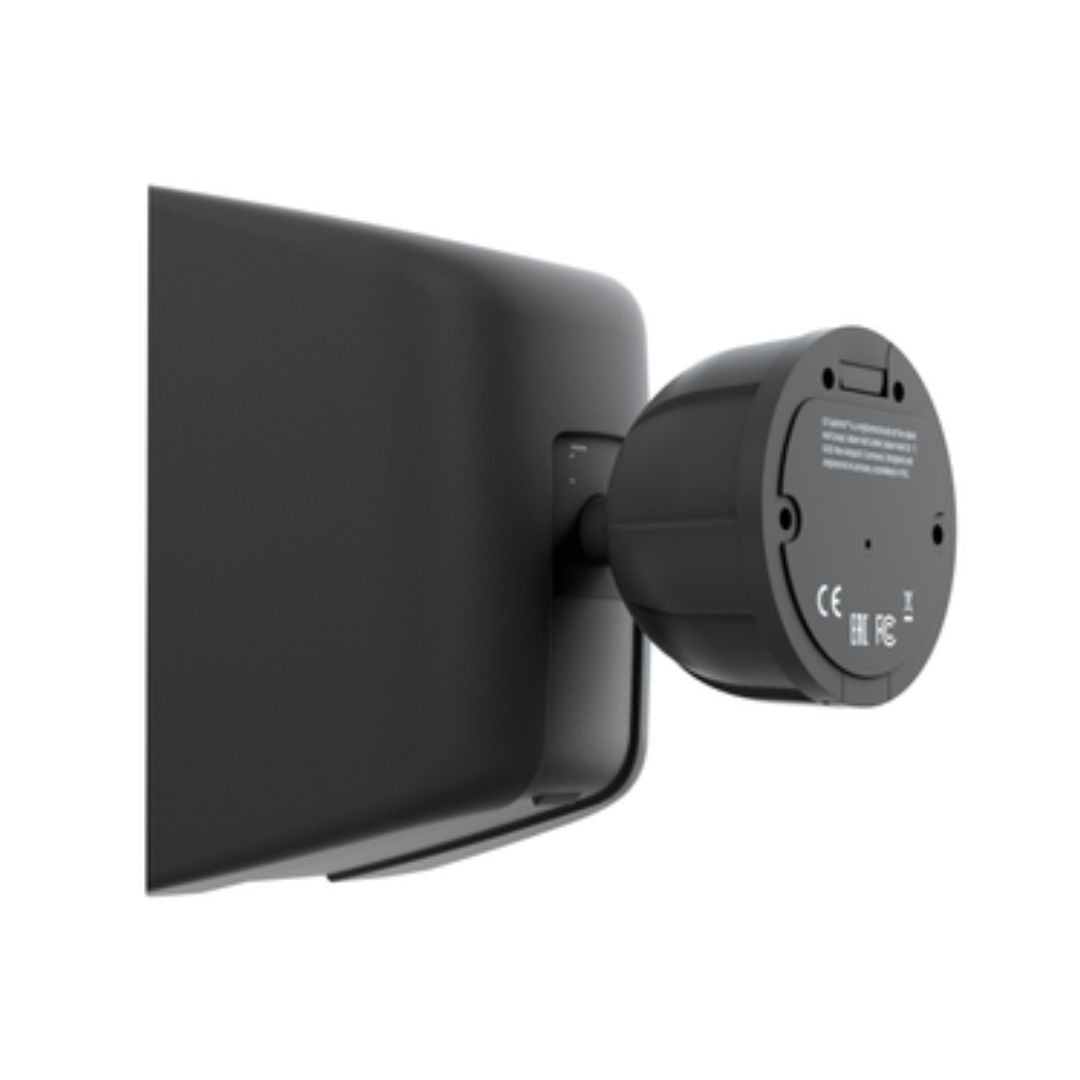

Wall Bracket Mounting Hardware, Hexagon Socket Spanner

Dimensions & Weight Specifications

Product Dimensions (W×H×D)

114.60 mm x 180.00 mm x 180.80 mm (4.51" x 7.09" x 7.12")

Product Net Weight

4.20 kg (9.26 lbs)
