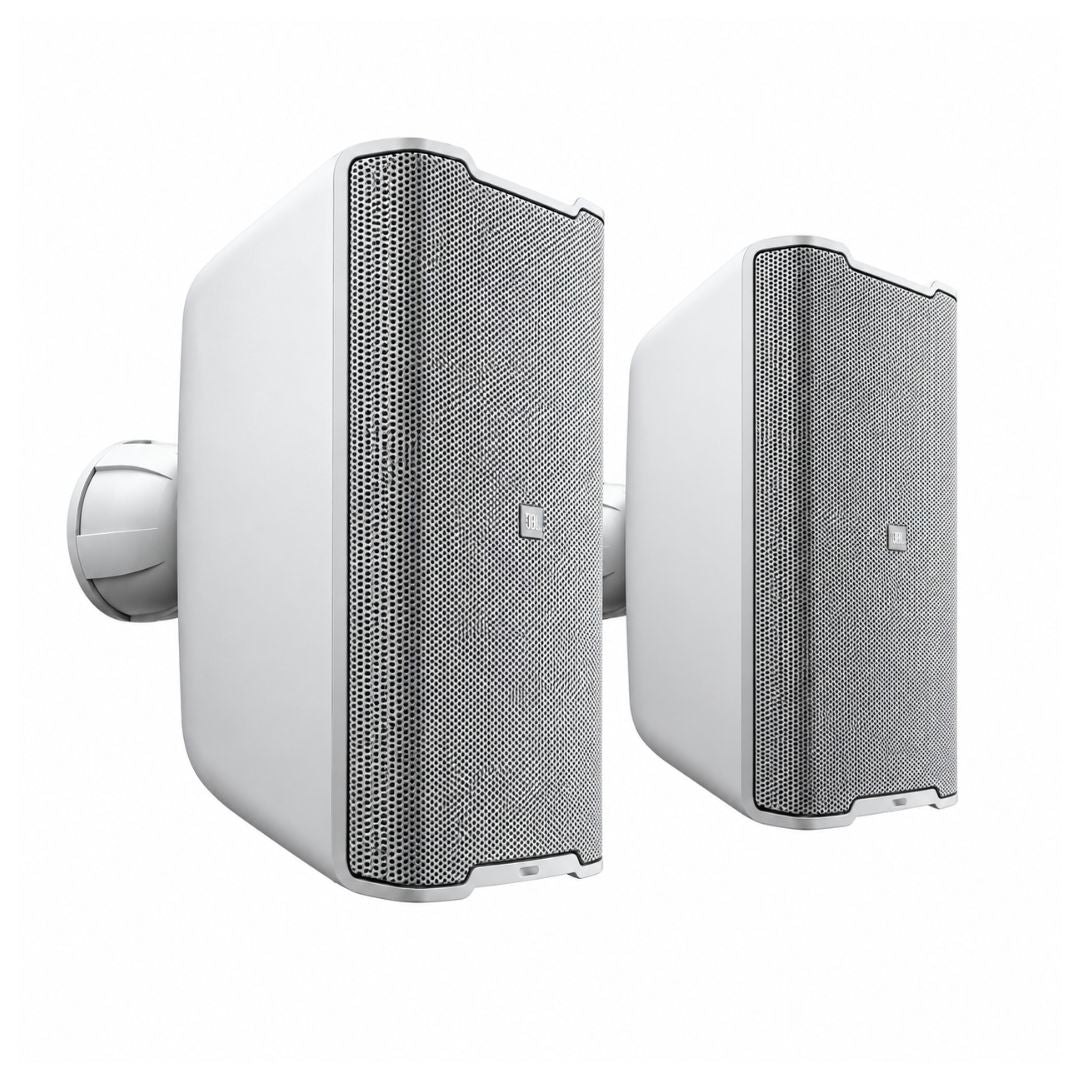

DQOR 5

1 1

For indoor and outdoor use, IP65 (DQOR 3) and IP55 (DQOR 5 & 8) certified
Corrosion-resistant aluminum front grille
Elegant, dynamic design to suit any environment
Available in black or white
Slide-and-lock wall mount with concealed integrated connections
Superb, balanced sound thanks to a 2-way system
Weather treated paper cone woofer and FerroFluid™-cooled titanium high frequency driver
Wide coverage angle (120° horizontal, 80° vertical)
BEM-optimized waveguide for balanced sound
3", 5" and 8" variants available

LD SYSTEMS

₱15,995.00 VAT INC.

₱15,995.00

SOLD BY: PAIR

Product Code: SKU:LDSYS-DQOR5W-CHN-2447

For indoor and outdoor use, IP65 (DQOR 3) and IP55 (DQOR 5 & 8) certified
Corrosion-resistant aluminum front grille
Elegant, dynamic design to suit any environment

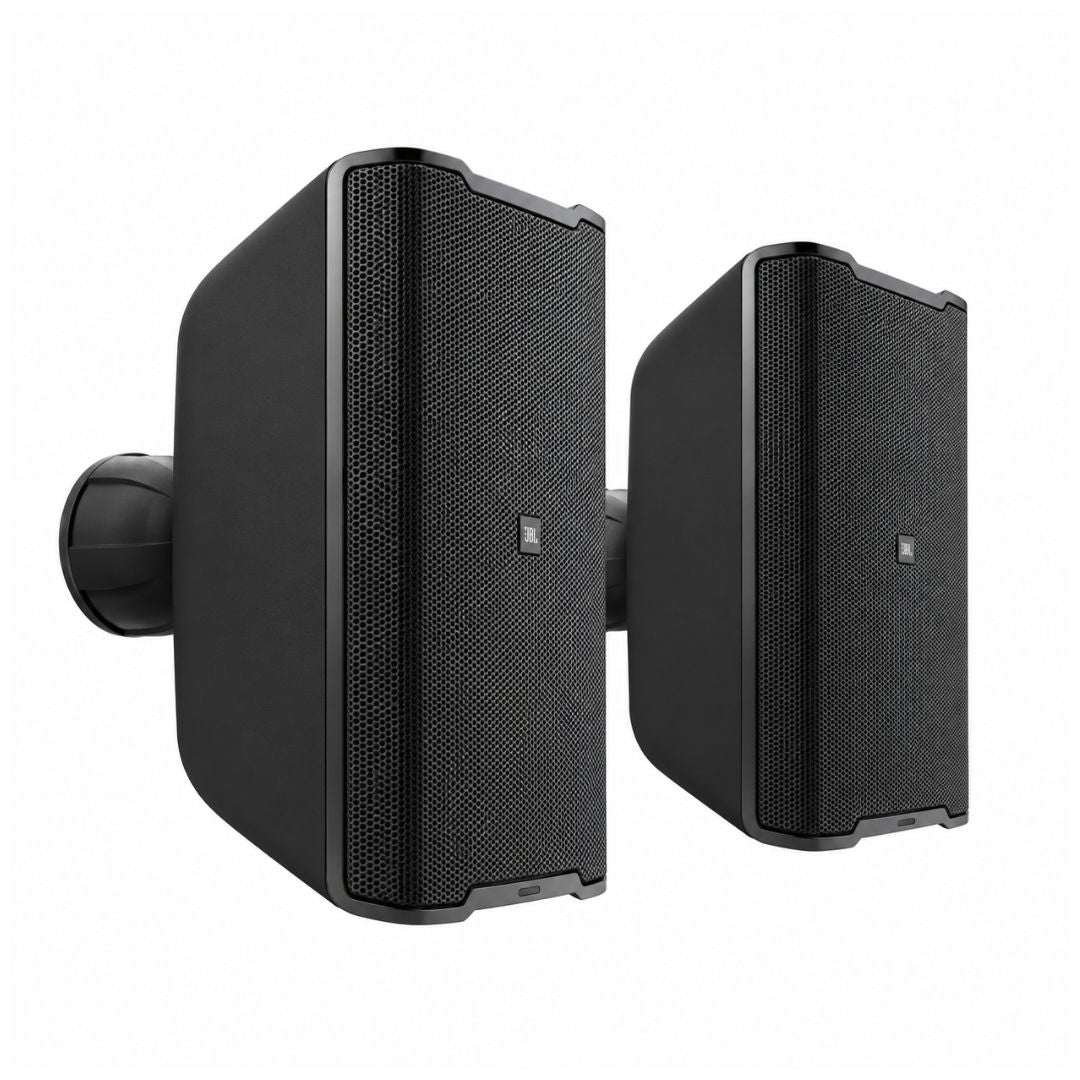

Available in black or white
Slide-and-lock wall mount with concealed integrated connections
Superb, balanced sound thanks to a 2-way system
Weather treated paper cone woofer and FerroFluid™-cooled titanium high frequency driver
Wide coverage angle (120° horizontal, 80° vertical)
BEM-optimized waveguide for balanced sound
3", 5" and 8" variants available

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

LD SYSTEMS DQOR 5

Key Specifications
Product / Accessory Type	Passive 2-Way Outdoor / Commercial Surface-Mount Loudspeaker
Enclosure Material & Construction	ABS Enclosure (Closed Cabinet Design with Aluminum Front Grille & Wall Bracket Mounting)
Environmental Protection Rating	IP55 Weather-Resistant Rating
Product Color & Finish	White Finish (RAL 9010)
Acoustic & Electrical Performance Specifications
Power Handling Capacity	70 W Continuous RMS / 140 W Peak
Nominal System Impedance	8 Ohms
Sensitivity (1 W / 1 m)	84 dB SPL
Frequency Response	74 Hz to 20,000 Hz (-10 dB, rel. Avg)
Nominal Coverage Dispersion (H×V)	120° Horizontal x 80° Vertical
Crossover Frequency	1,900 Hz (1.90 kHz)
Speaker Component Specifications
High-Frequency Transducers (Tweeter)	1x 25.40 mm (1.00") Custom Compression Driver / Tweeter with 25.40 mm (1.00") Voice Coil & Neodymium Magnet
Connectivity, Environment & Included Accessories
Audio Input Connector	4-Pin Terminal Block (Euroblock) / 5.08 mm Pitch Connector
Environmental Operating Limits	Operating Temperature Range: -30 °C to 50 °C (-22 °F to 122 °F)
Included Accessories	Wall Bracket Mounting Hardware, Hexagon Socket Spanner
Dimensions & Weight Specifications
Product Dimensions (W×H×D)	156.70 mm x 253.80 mm x 215.30 mm (6.17" x 9.99" x 8.48")
Product Net Weight	2.70 kg (5.95 lbs)
