Key Specifications

Product / Accessory Type

Passive 2-Way Outdoor / Commercial Surface-Mount Loudspeaker

Enclosure Material & Construction

ABS Enclosure (Closed Cabinet Design with Aluminum Front Grille & Wall Bracket Mounting)

Environmental Protection Rating

IP55 Weather-Resistant Rating

Product Color & Finish

Black Finish (RAL 9005)

Acoustic & Electrical Performance Specifications

Power Handling Capacity (Low-Impedance)

70 W Continuous RMS / 140 W Peak

System Operating Modes

Low Impedance (16 Ohms), 70 V Line Transformer, 100 V Line Transformer

Transformer Power Taps (100 V / 70 V)

70 W, 30 W, 15 W, 7.5 W, 3 W Switchable Taps

Nominal System Impedance

16 Ohms (Bypass Mode)

Sensitivity (1 W / 1 m)

84 dB SPL

Frequency Response

74 Hz to 20,000 Hz (-10 dB, rel. Avg)

Nominal Coverage Dispersion (H×V)

120° Horizontal x 80° Vertical

Crossover Frequency

1,900 Hz (1.90 kHz)

Speaker Component Specifications

Low-Frequency Transducers (Bass Driver)

1x 127.00 mm (5.00") Custom Woofer with 25.40 mm (1.00") Voice Coil & Ferrite Magnet

High-Frequency Transducers (Tweeter)

1x 25.40 mm (1.00") Custom Compression Driver / Tweeter with 25.40 mm (1.00") Voice Coil & Neodymium Magnet

Connectivity, Environment & Included Accessories

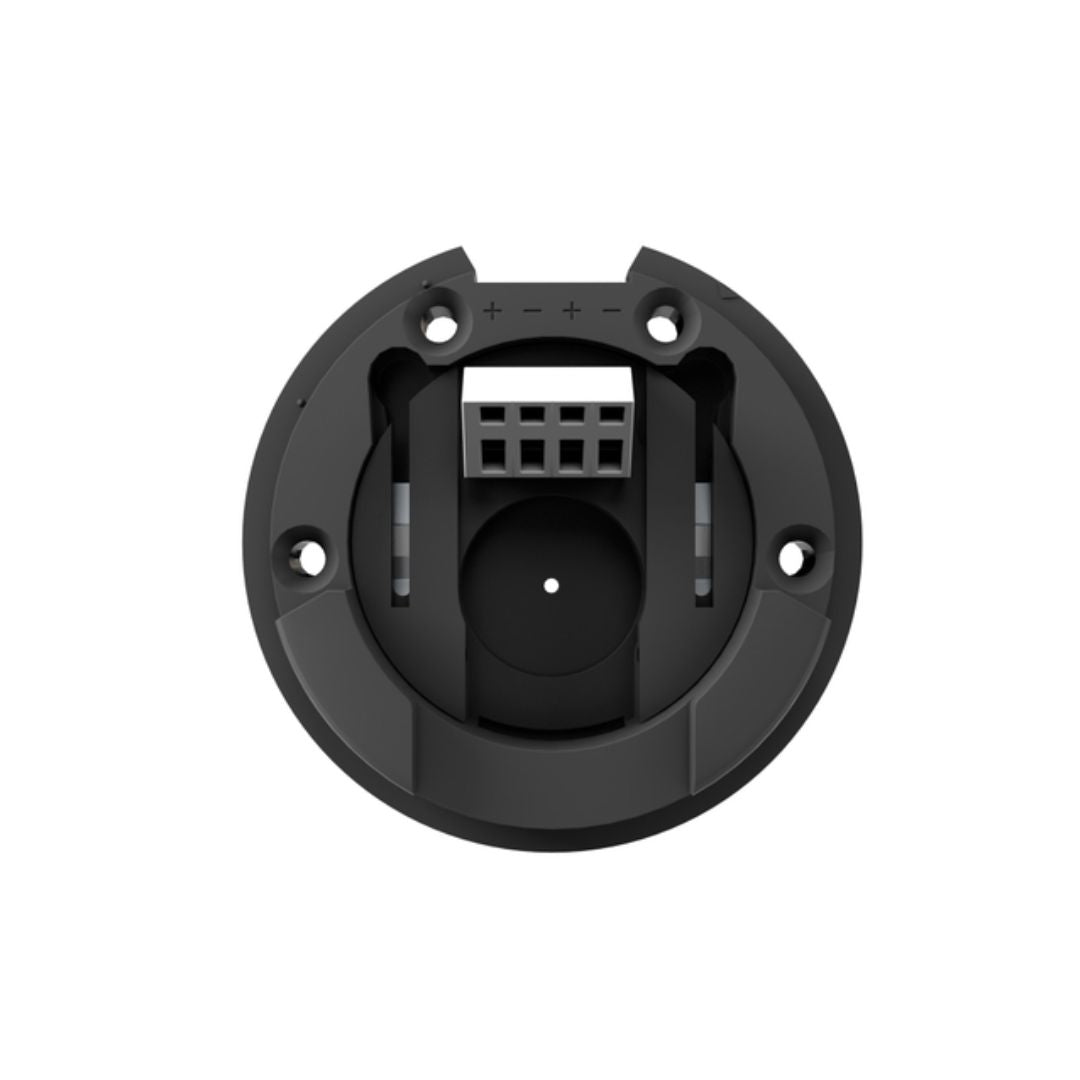

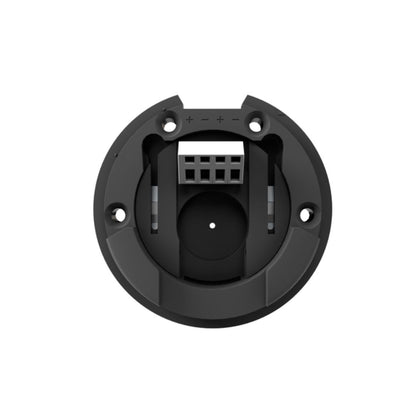

Audio Input Connector

4-Pin Terminal Block (Euroblock) / 5.08 mm Pitch Connector

Environmental Operating Limits

Operating Temperature Range: -30 °C to 50 °C (-22 °F to 122 °F)

Included Accessories

Wall Bracket Mounting Hardware, Hexagon Socket Spanner

Dimensions & Weight Specifications

Product Dimensions (W×H×D)

156.70 mm x 253.80 mm x 215.30 mm (6.17" x 9.99" x 8.48")

Product Net Weight

3.90 kg (8.60 lbs)
