Key Specifications

Product / Accessory Type

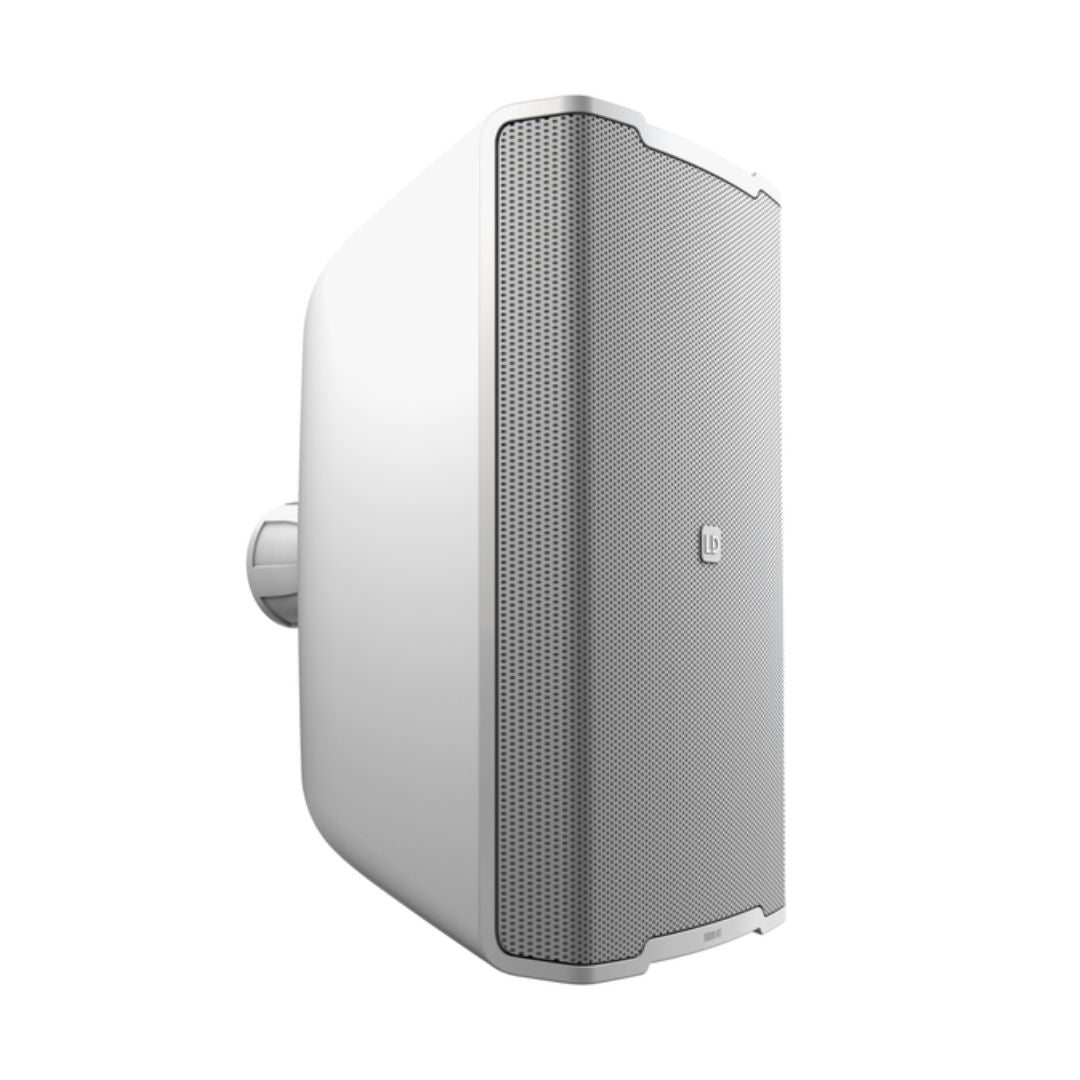

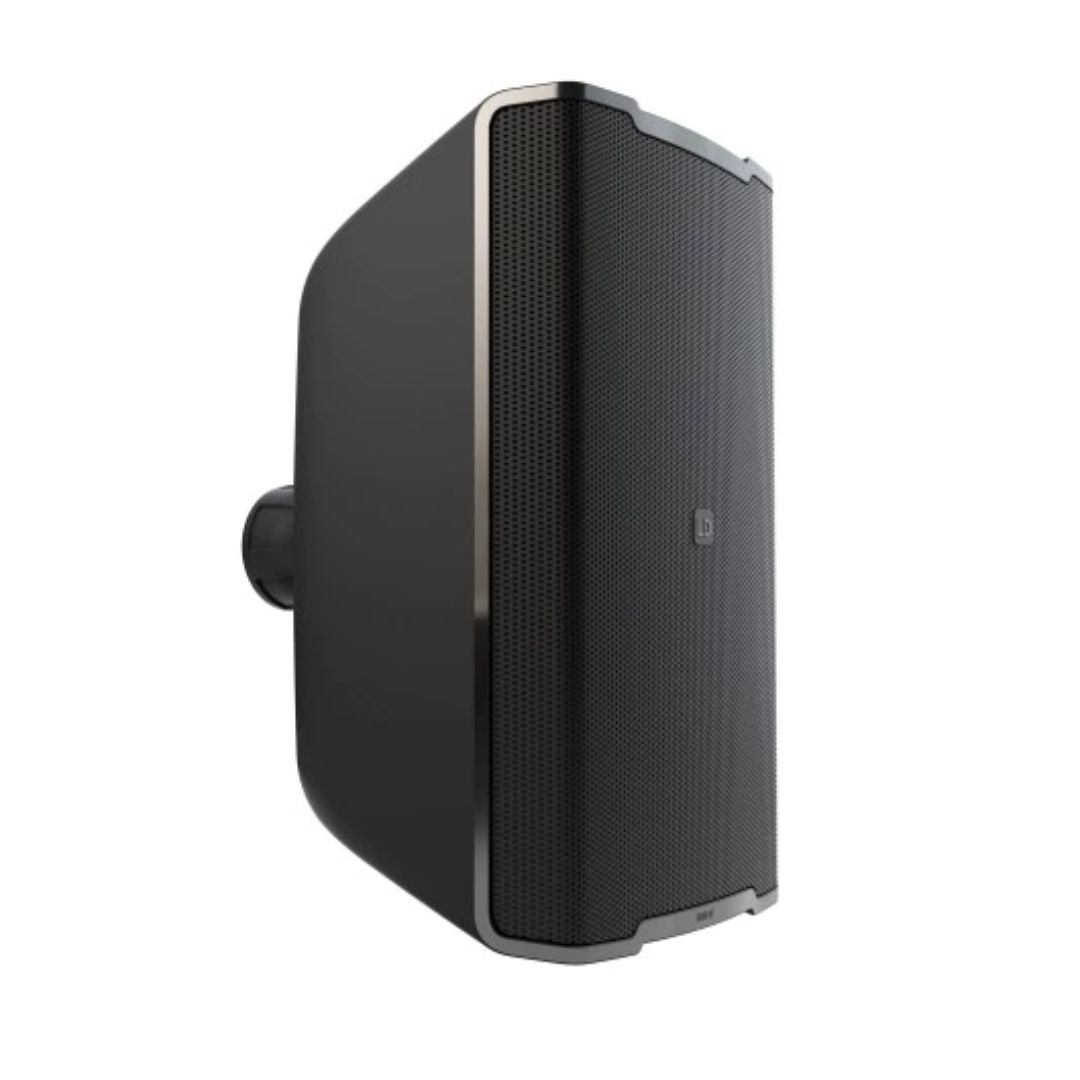

Passive 2-Way Outdoor / Commercial Surface-Mount Loudspeaker

Enclosure Material & Construction

ABS Enclosure (Closed Cabinet Design with Aluminum Front Grille & Wall Bracket Mounting)

Environmental Protection Rating

IP55 Weather-Resistant Rating

Product Color & Finish

White Finish (RAL 9010)

Acoustic & Electrical Performance Specifications

Power Handling Capacity (Low-Impedance)

120 W Continuous RMS / 240 W Peak

System Operating Modes

Low Impedance (16 Ohms), 70 V Line Transformer, 100 V Line Transformer

Transformer Power Taps (100 V / 70 V)

120 W, 70 W, 30 W, 15 W, 7.5 W, 3 W Switchable Taps

Nominal System Impedance

16 Ohms (Bypass Mode)

Sensitivity (1 W / 1 m)

88 dB SPL

Frequency Response

62 Hz to 20,000 Hz (-10 dB, rel. Avg)

Nominal Coverage Dispersion (H×V)

120° Horizontal x 80° Vertical

Crossover Frequency

1,800 Hz (1.80 kHz)

Speaker Component Specifications

Low-Frequency Transducers (Bass Driver)

1x 203.20 mm (8.00") Custom Woofer with 50.80 mm (2.00") Voice Coil & Ferrite Magnet

High-Frequency Transducers (Tweeter)

1x 25.40 mm (1.00") Custom Compression Driver / Tweeter with 25.40 mm (1.00") Voice Coil & Neodymium Magnet

Connectivity, Environment & Included Accessories

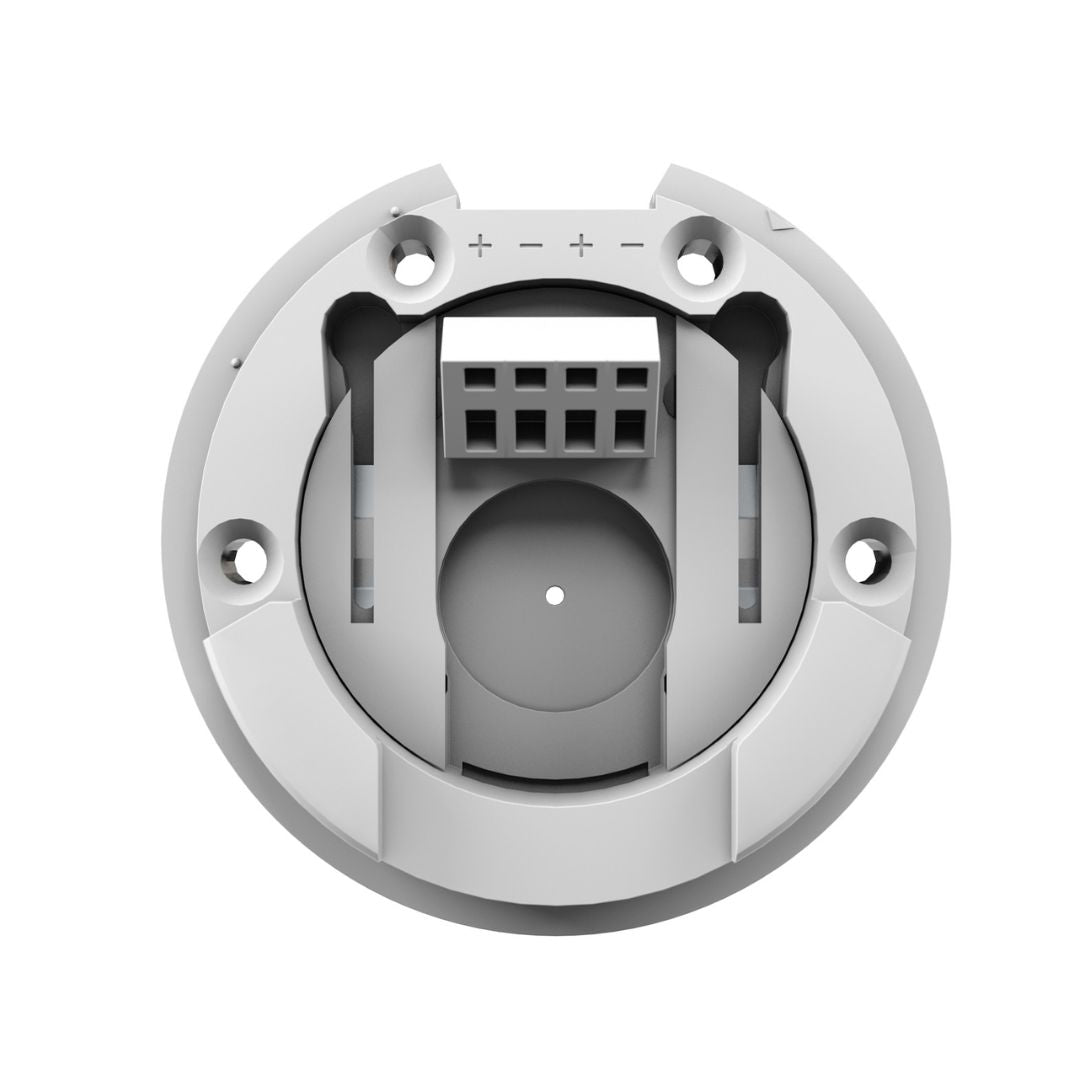

Audio Input Connector

4-Pin Terminal Block (Euroblock) / 5.08 mm Pitch Connector

Environmental Operating Limits

Operating Temperature Range: -30 °C to 50 °C (-22 °F to 122 °F)

Included Accessories

Wall Bracket Mounting Hardware, Hexagon Socket Spanner

Dimensions & Weight Specifications

Product Dimensions (W×H×D)

255.80 mm x 413.90 mm x 314.50 mm (10.07" x 16.30" x 12.38")

Product Net Weight

7.20 kg (15.87 lbs)
