Key Specifications

Product / Accessory Type

Passive Outdoor / Weather-Resistant Subwoofer

Speaker System Configuration

1x Passive Subwoofer (Sealed Enclosure Design)

Enclosure Material & Construction

Aluminum Cabinet with Aluminum Front Grille & Plastic Components

Environmental Protection Rating

IP55 Weather-Resistant Rating

Product Color & Finish

White Finish

Acoustic & Electrical Performance Specifications

Power Handling Capacity

240 W Continuous RMS / 400 W Peak

Nominal System Impedance

4 Ohms

Maximum Sound Pressure Level (SPL)

108 dB Peak SPL

Frequency Response

43 Hz to 200 Hz (-3 dB)

Integrated Low-Pass Crossover

200 Hz Low-Pass Filter

Speaker Component Specifications

Low-Frequency Transducers (Subwoofer)

1x 203.20 mm (8.00") Woofer & 1x 254.00 mm (10.00") Passive Radiator / Woofer with 63.50 mm (2.50") Voice Coil & Ferrite Magnet

Connectivity & Environmental Specifications

Audio Input / Output Connector

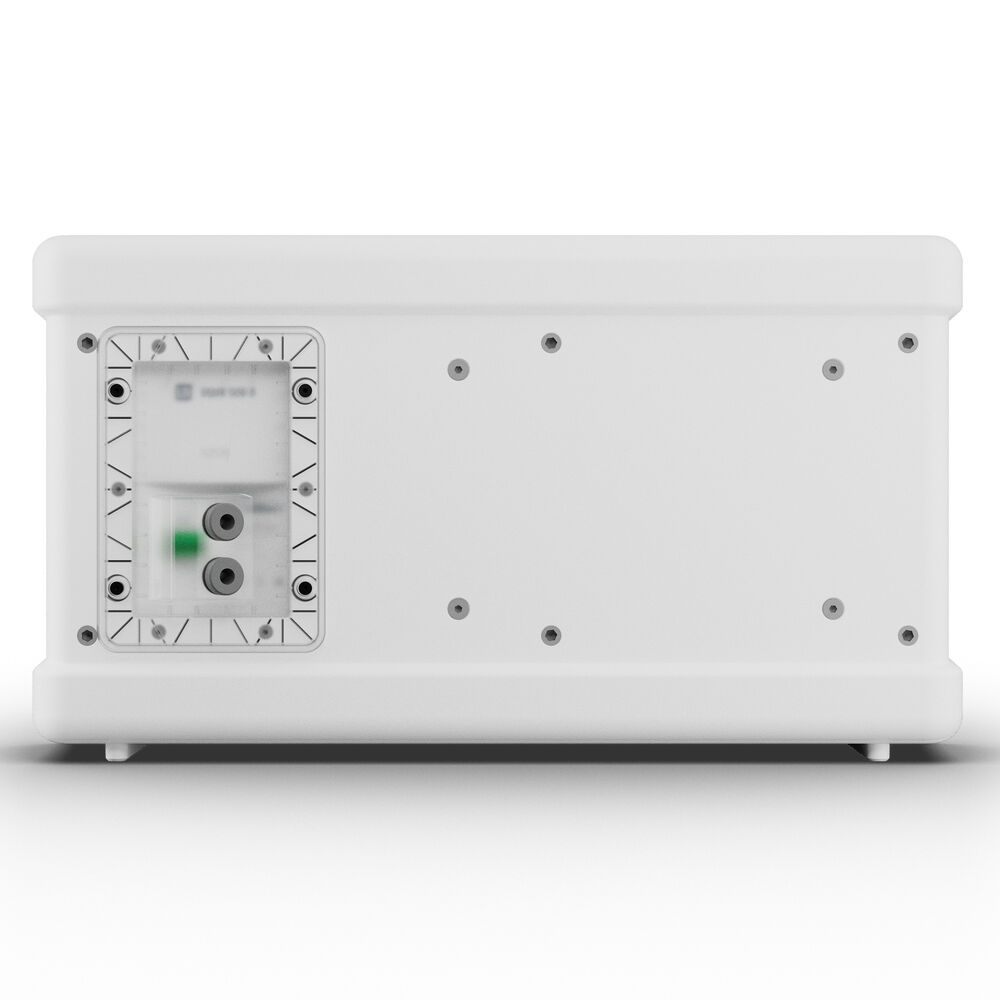

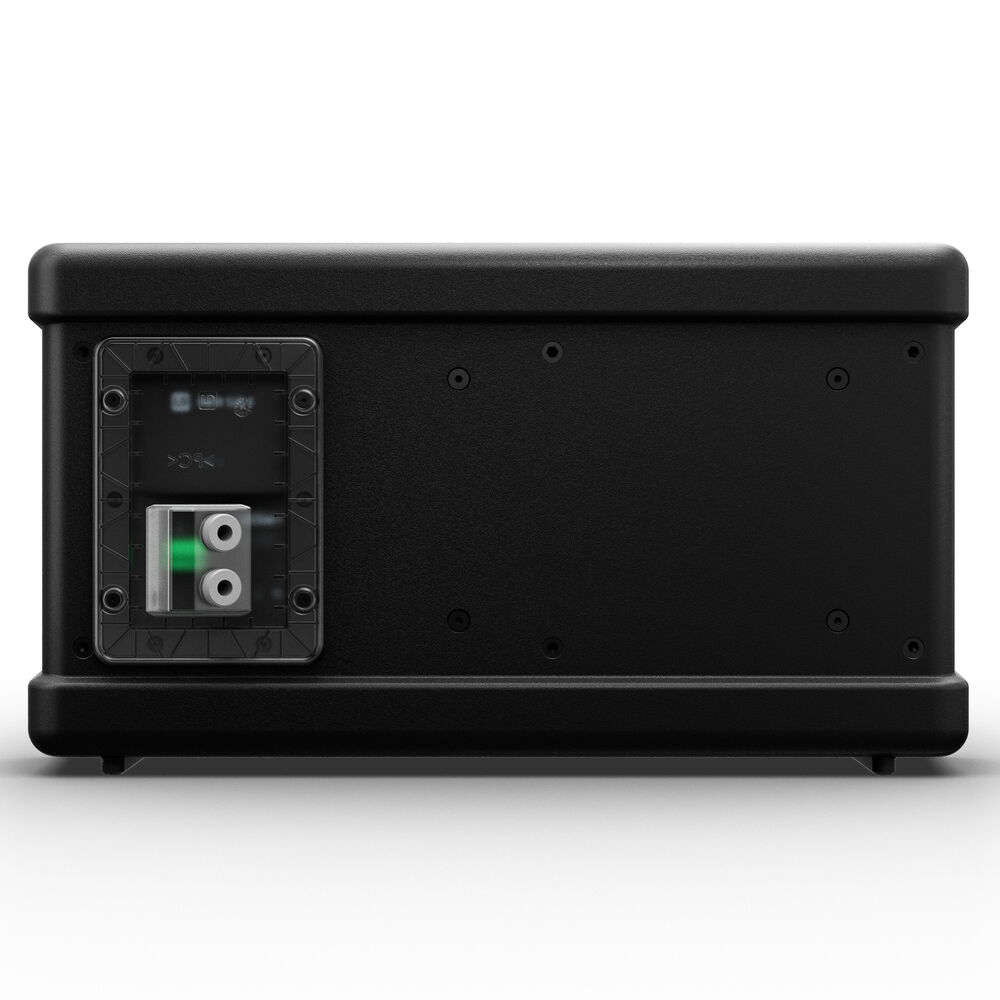

1x 4-Pin Terminal Block / Euroblock Speaker Input

Wireless & Mobile App Compatibility

None

Environmental Operating Limits

Operating Temperature: -30 °C to 50 °C (-22 °F to 122 °F);
Humidity: Up to 85% Relative Humidity (Non-Condensing)

Dimensions, Weight & Packaging Specifications

Product Dimensions (W×H×D)

303.00 mm x 537.00 mm x 205.00 mm (11.90" x 21.10" x 8.10")

Product Net Weight

13.70 kg (30.20 lbs)

Package Shipping Weight

15.34 kg (33.83 lbs)

Packaging Box Dimensions (L×W×H)

599.44 mm x 424.18 mm x 261.62 mm (23.60" x 16.70" x 10.30")
