Key Specifications

Product Type

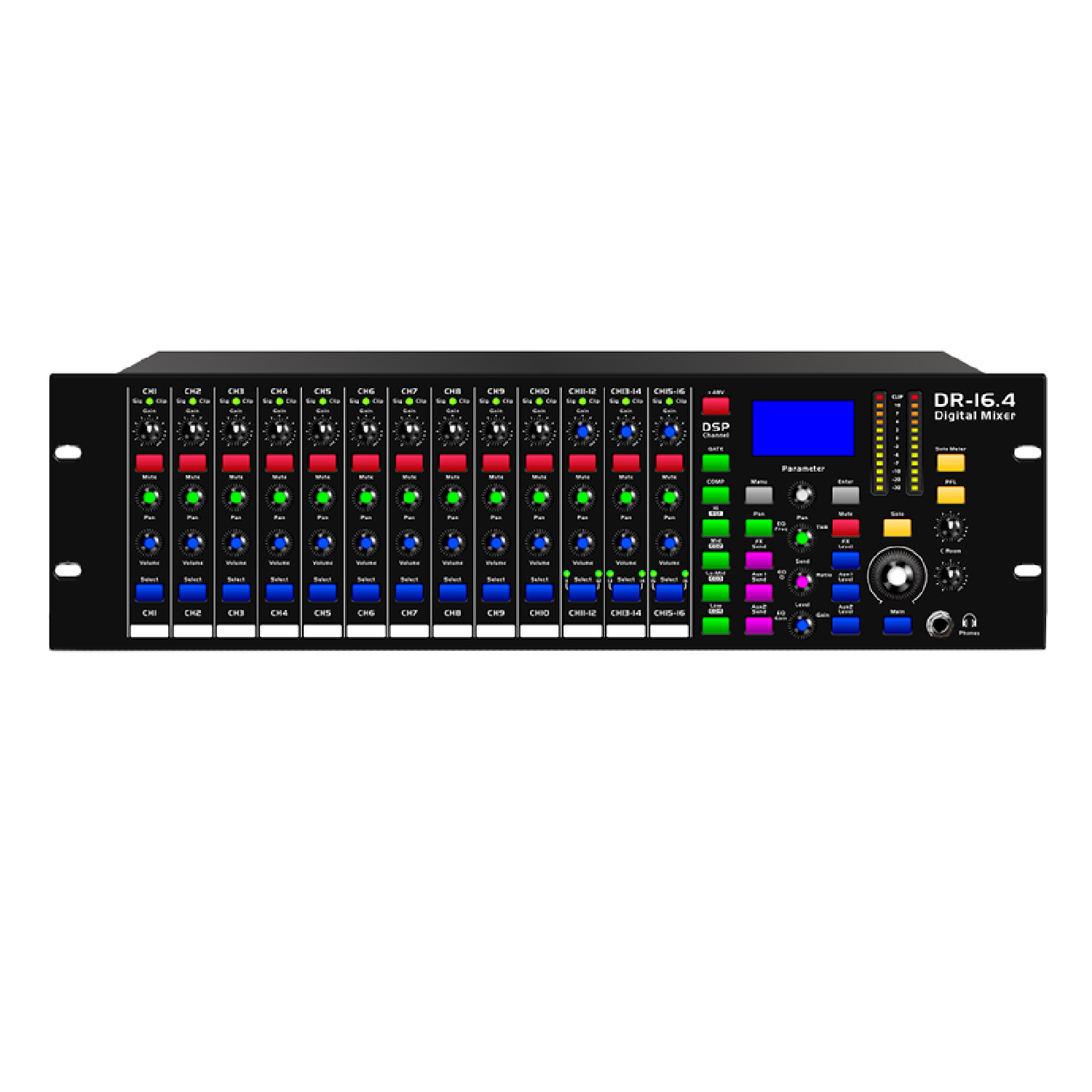

Professional Digital Mixing Console

Internal Processing

32-bit Floating Point

ADC / DAC Performance

24-bit Depth | 114 dB Dynamic Range

SNR (Signal to Noise Ratio)

108 dB

Audio Performance

Frequency Response

20 Hz to 20 kHz (±1.5 dBu)

Distortion (THD+N)

< 0.01% (@ 0 dBu, 1 kHz)

Crosstalk (Adjacent Ch)

-85 dBu (@ 1 kHz)

Max I/O Levels

+20 dBu (Main/AUX/Tape/CR)

Input Channel Strip

Mic Gain Range

0 dBu to 50 dBu

Line Gain Range

-20 dBu to +30 dBu

Phantom Power

+48V (±3V) Support

DSP & Signal Processing

4-Band Parametric EQ

21 Hz to 19.2 kHz (±24 dB Gain)

Compressor

Ratio 1:1 to Limit | Attack 10ms - 150ms

Noise Gate

Threshold -84 dBu to +20 dB | Attack 0.5ms

Impedance & Physical

Input Impedance

Mic: 6.8 kΩ | Line: 75 kΩ | Stereo: 27 kΩ

Output Impedance

240 Ω (All Outputs)

Operating Temp

0ºC to 40ºC (32ºF to 104ºF)
