DBX260V
DBX260V
DBX
Regular price
₱59,000.00 VAT INC.
Regular price
Sale price
₱59,000.00
Unit price
per
UNIT: PIECE/S
Product Code: SKU:DBX-DBX260V-CHN-689
Key Features
Authorized Dealer
Certified Quality Products
After-Sales Support
Secure Payments

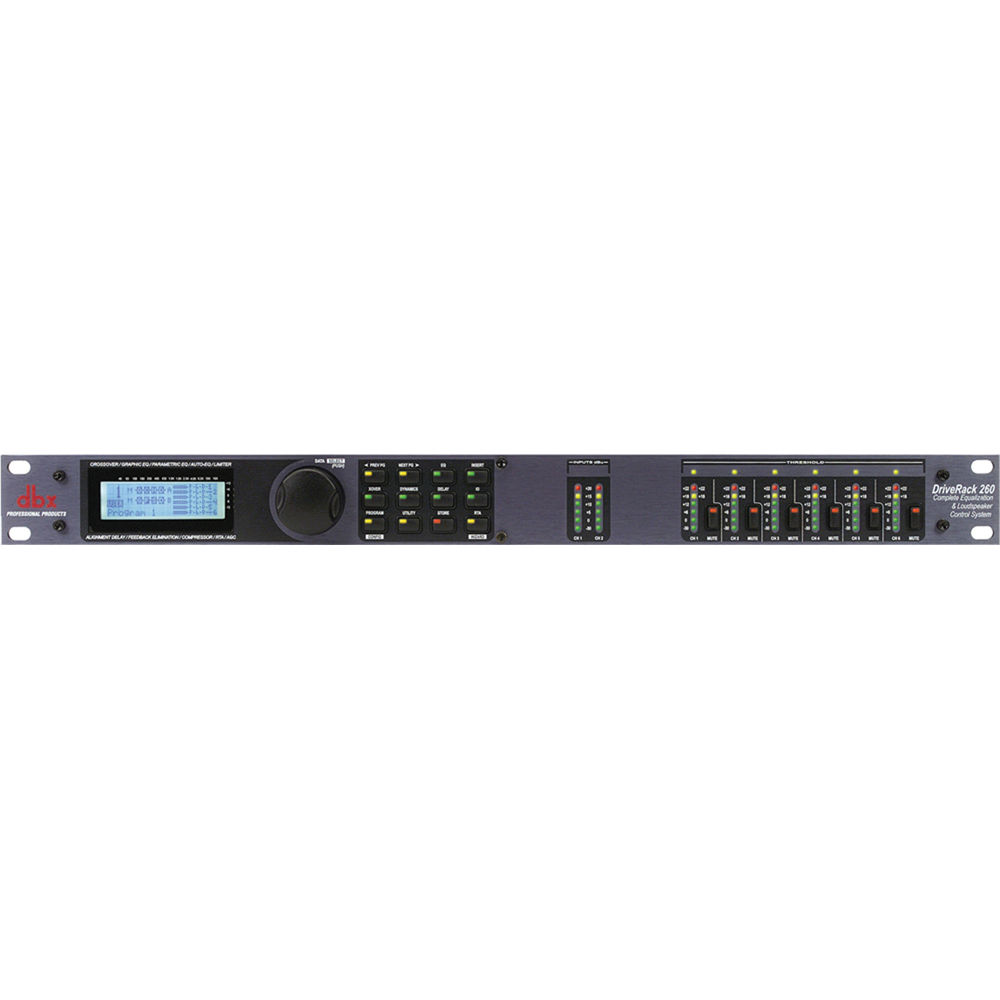

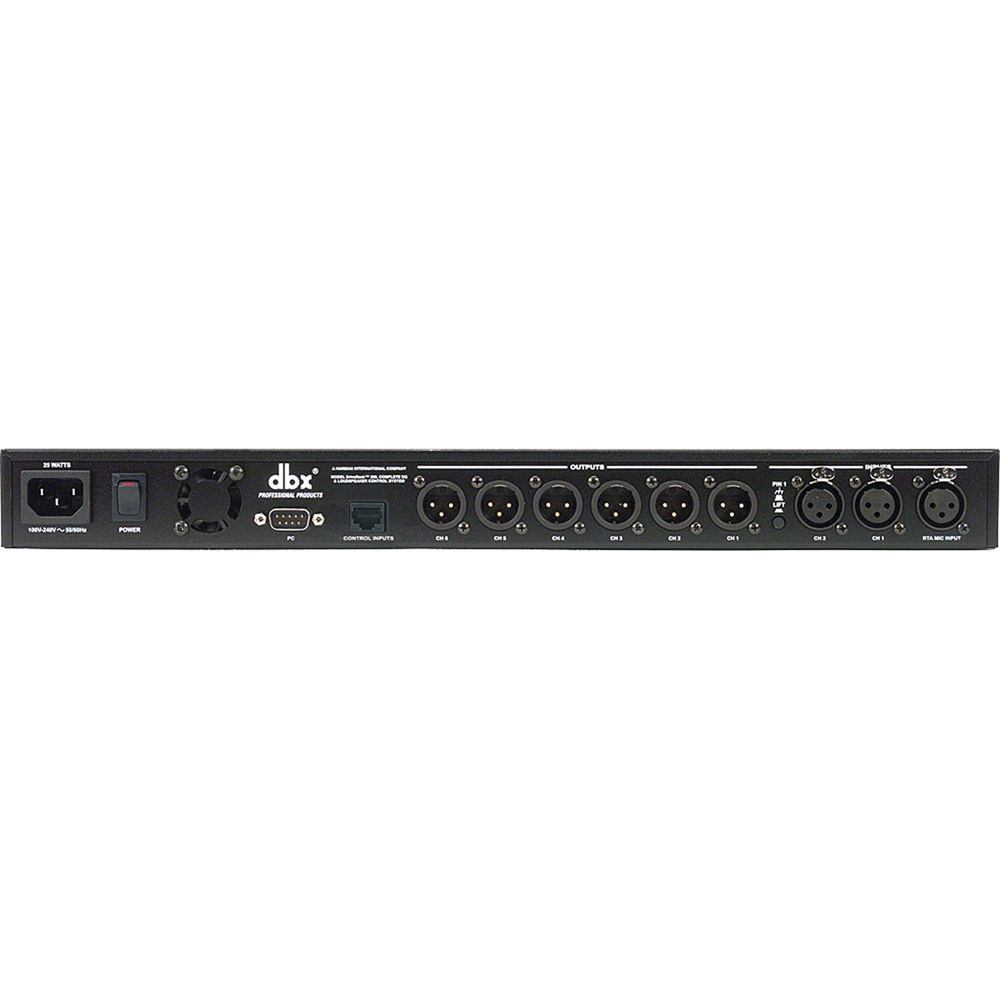

DBX DBX260V
DBX DBX260V
|
Key Specifications |
|
|
Product Model |
dbx DriveRack 260 |
|
Product Type |
Loudspeaker Control System / Digital Signal Processor |
|
I/O Configuration |
2 Input / 6 Output |
|
RTA Support |
Dedicated XLR Input with 15V Phantom Power |
|
Acoustic & Digital Performance |
|
|
Frequency Response |
20 Hz to 20 kHz |
|
Dynamic Range |
110 dB Unweighted (>107 dB Weighted) |
|
Sample Rate |
48 kHz |
|
THD + Noise |
0.002% Typical (at +4 dBu) |
|
Inputs / Outputs |
|
|
Input Impedance |
>40 kΩ |
|
Max Input Level |
+34 dBu (with internal +30 jumpers) |
|
Max Output Level |
+22 dBu |
|
Output Impedance |
120 Ω |
|
Physical Specifications |
|
|
Rack Space |
1U Rack Mountable |
|
Crosstalk |
>100 dB (Main Outputs) |
|
Shipping Weight |
3.95 kg (8.7 lbs) |
DBX DBX260V Accessories
- No accessories available.
