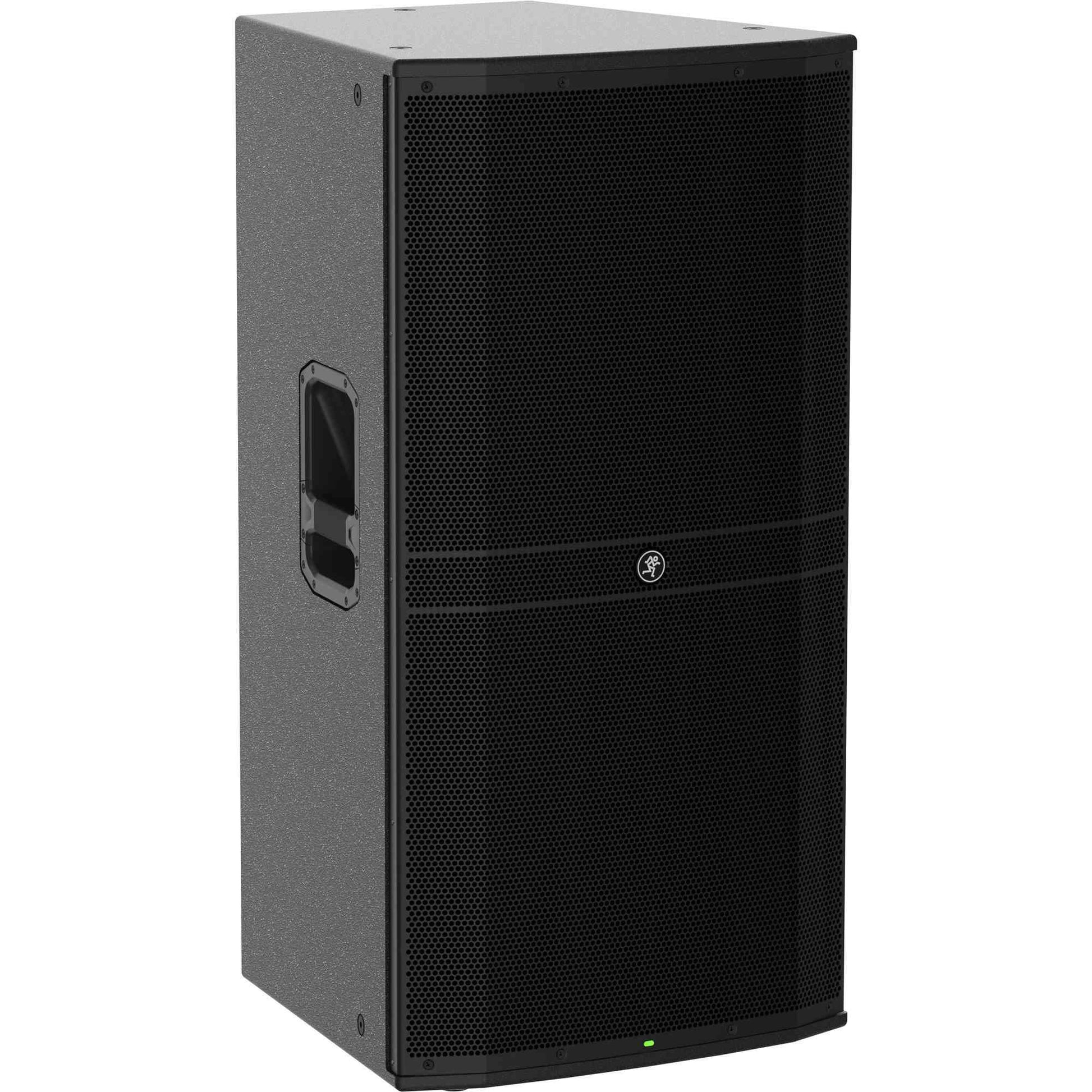

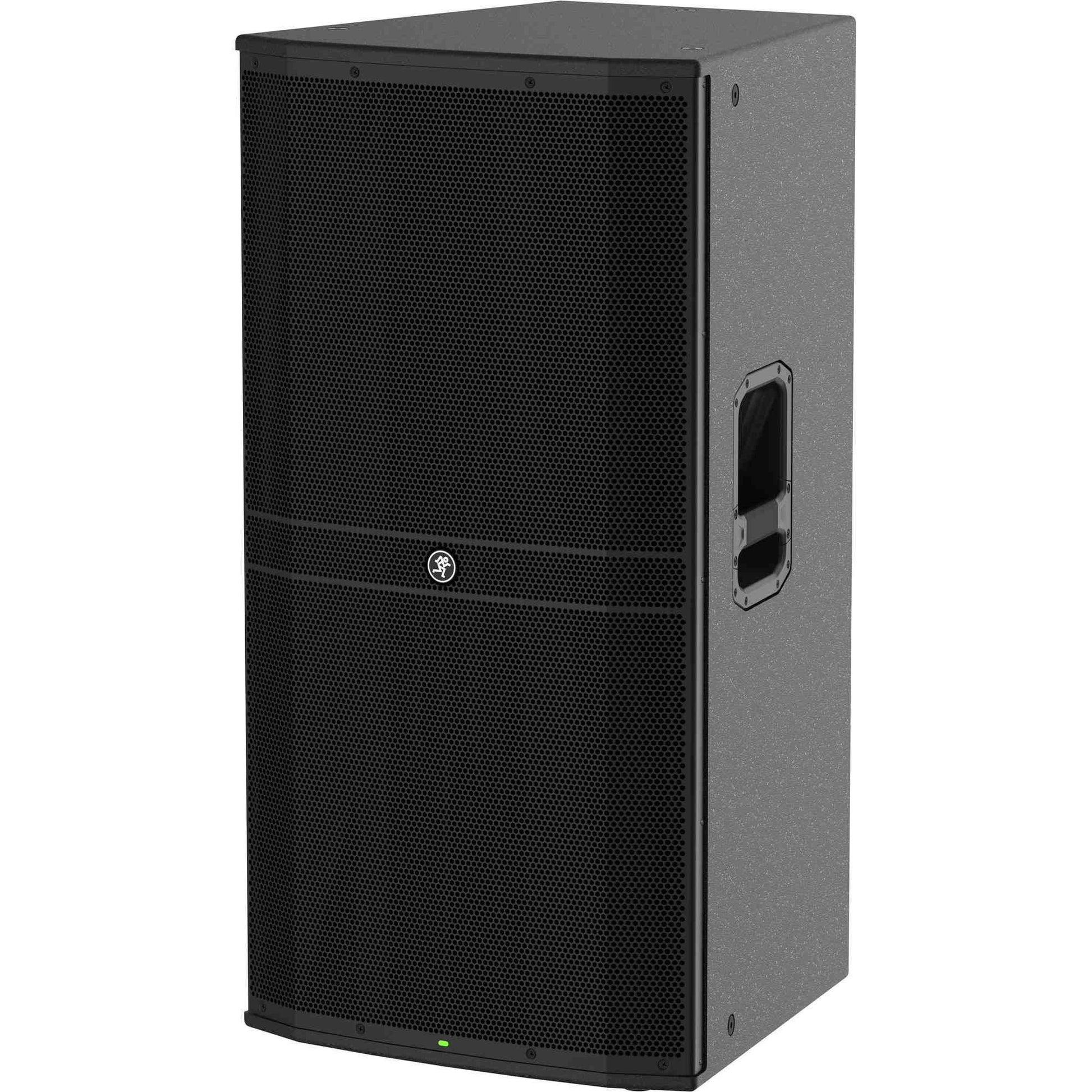

The Mackie DRM315 is a 2300W 15" powered loudspeaker designed for medium-sized theaters, large music venues, and outdoor sporting events as well as DJs, large clubs, houses of worship, rental systems, and more. The integrated Class-D amplifier utilizes professional-quality protection and Power Factor Correction (PFC) technology to ensure peak performance, while the Advanced Impulse DSP provides acoustic correction and time-alignment via precision tuned FIR filters for a clear, punchy sound. The DRM Control Dashboard features a high-contrast, full-color display for quick access to EQ, voicing modes and more.

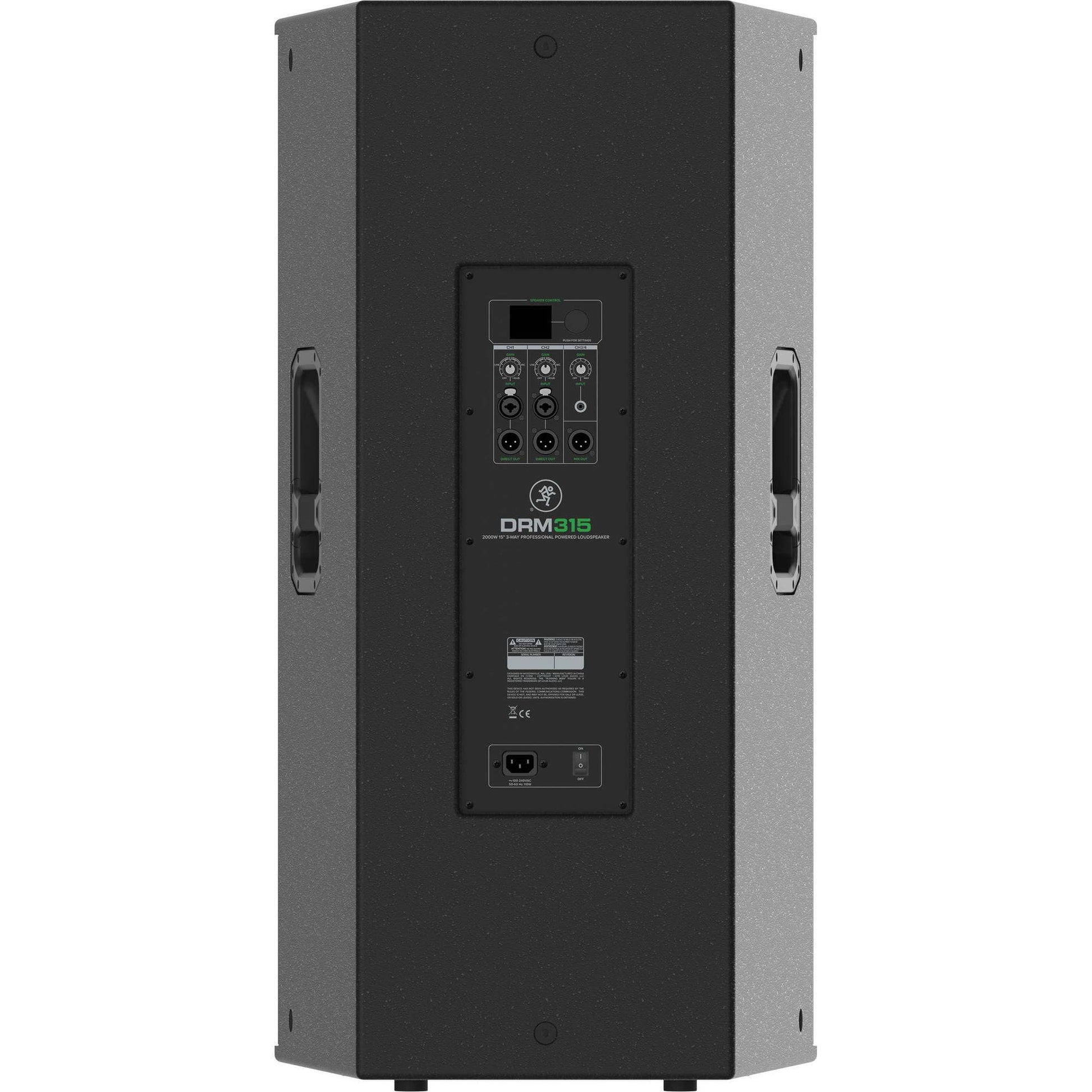

A professional-grade 15” woofer, 6.5" midrange transducer, and 1.4" compression driver are housed in the texture-coated 15mm plywood cabinet and when combined offer a frequency range of 35 Hz to 20 kHz (-10 dB) with a peak SPL of 137 dB. The rear panel includes dual combo XLR-1/4" inputs and will accept mic, line, and instrument signals. What's more, a dedicated 3.5mm stereo aux input is available for connecting portable music devices. The versatile enclosure features dual-angled pole-mount provides optimal coverage and minimal reflections in most venues. The Mackie DRM315 provides a rotatable horn allowing the loudspeaker to be flown both horizontally and vertically via twelve integrated M10 fly points.
MACKIE DRM315
Key Specification
Model
DRM315
Speaker Type
Active Loudspeaker
Configuration
3-Way
Total Output Power
2300 W Peak
LF Driver
1x 15" / 38 cm Woofer
MF Driver
1x 6.5" / 16 cm Cone
HF Driver
1x 1.4" / 35.6 mm Tweeter
Frequency Range / Response
-10 dB: 35 Hz – 20 kHz
Amplifier Class
Class-D
Maximum SPL
137 dB
Coverage Angle
90° H × 50° V (Rotatable Horn)
EQ & Filters
No
Alignment Delay
No
Digital Signal Processing
No
Audio I/O
2x Combo XLR-1/4" TRS Line/Mic Input 1x 1/8" / 3.5 mm TRS Aux Input
Network / USB / Wireless
No
Mobile App Compatible
No
AC Input Power
100–240 VAC, 50/60 Hz
AC Power I/O
1x IEC Input
Color
Black
Mounting
Stand Mount, 1x Dual-Angle Pole Socket (Bottom) 12x M10 Fly Points
