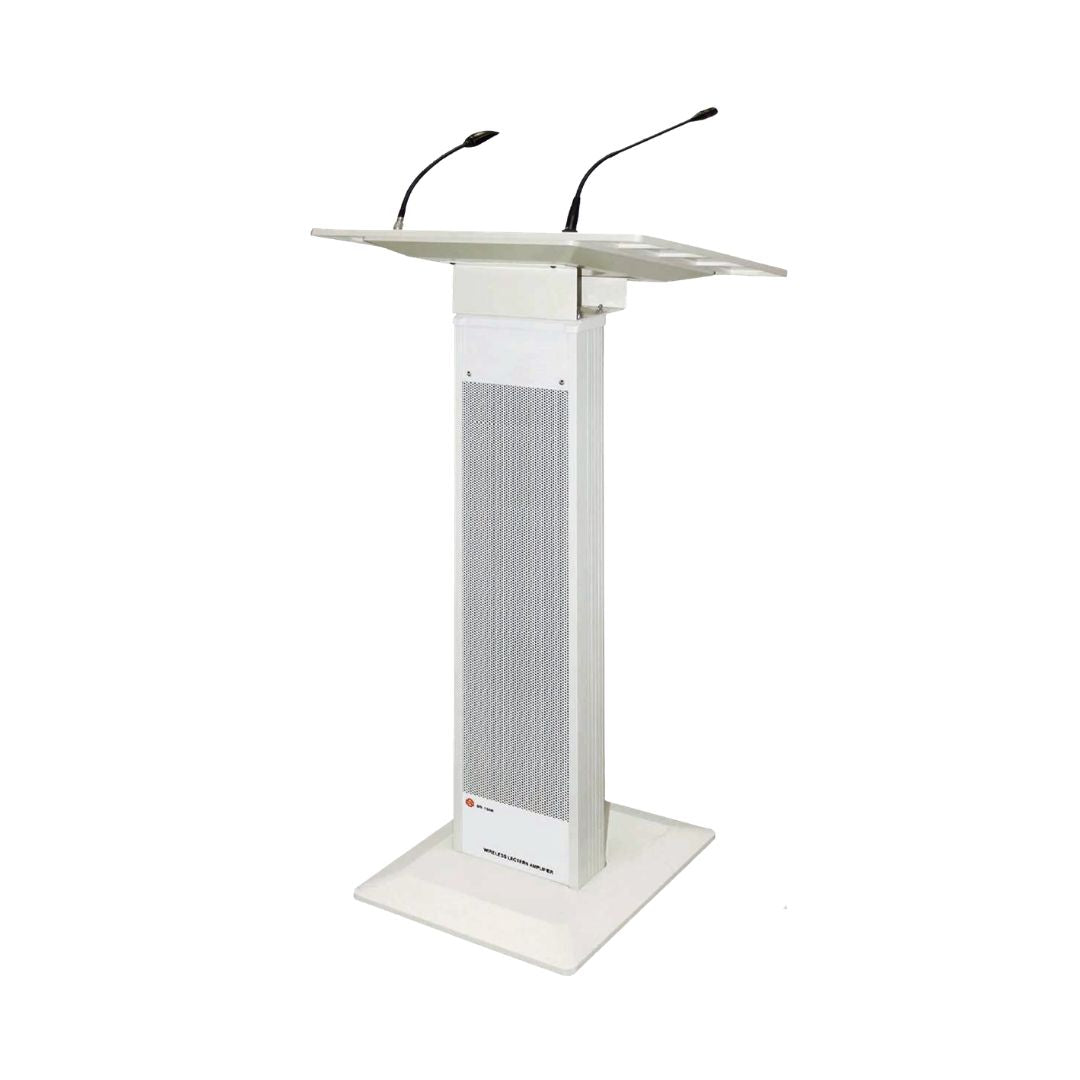

SHOW DS-150R
SHOW DS-150R
|
Key Specifications |
|
|
Product Model |
DS-150R |
|
System Type |
Full Range Powered Column Lectern System |
|
Target Applications |
Small Houses of Worship, Corporate Conference Rooms, Hotel Multi-Media Rooms, Schools, Convention Centers, Multi-Media Presentations |
|
Acoustic & Amplifier Specifications |
|
|
Low Transducers |
3x 6.5" Full Range Loudspeakers |
|
Power Amplifier System |
100 Watts Class-D Power Amplifier |
|
Frequency Response (-6 dB) |
100 Hz to 16 kHz |
|
Maximum SPL |
124 dB |
|
Inputs & Sensitivity Specifications |
|
|
MIC1 Input Sensitivity |
-30 dB ±2 dB |
|
Input 1 Sensitivity |
Line: -2 dBu ±2 dB | MIC: -30 dBu ±2 dB |
|
AUX Input Sensitivity |
-2 dBu ±2 dB |
|
Wireless Operating Frequency |
UHF Band (470 MHz – 900 MHz) |
|
Features, Accessories & Controls |
|
|
Included Lectern Accessories |
Gooseneck Speech Microphone (with On/Off Switch) |
|
Media Processing & USB |
Digital MP3 Player + Recording + Bluetooth (with Remote Control) |
|
External Controls & EQ |
2-Band EQ for Inputs, Voice Priority On/Off Switch, Input 1 / MIC / AUX Volume Controls, Master Volume Control |
|
Status LED Indicators |
Power On (Green LED), Limiter (Red LED) |
|
Connectivity & Interfaces |
|
|
Input Connections |
1x Combo XLR & 1/4" Jack Input |
|
Output Connections |
1x 1/4" Jack Mix Output |
|
Power, Construction & Physical Specifications |
|
|
Power Supply Input |
AC 110V – 240V (50/60 Hz) / Battery Powered |
|
Enclosure Construction |
Extruded Aluminum Body, Resistant Paint Finish, Metal Grille with Acoustic Foam |
|
Item Dimensions (W×H×D) |
420mm x 1135mm x 580mm (16.54" x 44.68" x 22.83") |
|
Net Weight |
15.2 kg (33.5 lbs) |
