Key Specifications

CPU

Intel Atom Dual Core 2.13 GHz

Floating Point

Yes

RAM Size

DDR3 2 GB (Expandable up to 4 GB)

Internal HDD/SSD

3.5” or 2.5” SATA(II) × 5 (hard drives not included)

Max Internal Capacity

20 TB (4 TB HDD × 5) (actual capacity will differ according to volume types)

Hot Swappable HDD

Yes

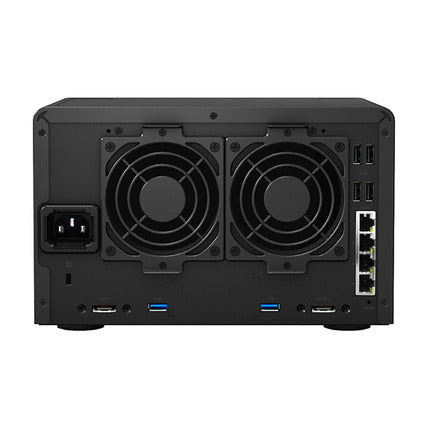

External HDD Interface

USB 3.0 ports × 2

USB 2.0 ports × 4

eSATA × 2

Size (H × W × D)

157 × 248 × 233 mm

Weight

4.25 kg

LAN

Gigabit × 4

Wake on LAN/WAN

Yes

Wireless Support

Yes (wireless dongles not included)

Noise Level

22.1 dB(A)

AC Input Power Voltage

100 V to 240 V

Power Frequency

50 Hz to 60 Hz, Single Phase

Operating Temperature

5°C to 35°C (40°F to 95°F)

Storage Temperature

-10°C to 70°C (15°F to 155°F)

Relative Humidity

5% to 95% RH

Power Consumption

51 W (Access)

25.75 W (HDD Hibernation)

Applications

File Station

Virtual Drive

Remote Folder

Backup Solutions

Network Backup

Local Backup

Desktop Backup (Windows: Synology Data Replicator; Mac®: Apple Time Machine backup application)

Shared Folder Sync - Max Task Number: 8

Configuration Backup

Mail Server

Supported Mail Server Protocols: POP3, SMTP, IMAP

FTP Server

Bandwidth Control

Custom FTP Passive Port Range

Anonymous FTP

Transfer Log

Web Station

Virtual Host (up to 30 websites)

PHP/MySQL

3rd-Party Applications Support

Printer Server

Max Printer #: 2

Printing Protocols: LPR, CIFS, IPP, Apple AirPrint™, Google Cloud Print™

Multi Functional Print Server (MFP functions are for Windows PC only)

iOS/Android™ Applications

DS audio

DS cam

DS cloud

DS download

DS file

DS finder

DS photo+

DS video

Windows Phone Applications

DS audio

DS finder

DS photo+

DS video

Add-on Packages

Surveillance Station

Default IP cam #: 1

MAX IP cam # (licenses required): 20

1 free license to install 1 IP camera. Additional licenses can be purchased to expand the license quota.

Directory Server

LDAP Directory Server, Backup and Restore LDAP Database

VPN Server

Maximum Connections: 20

VPN Method: PPTP, OpenVPN™

DHCP Server

Independent DHCP Server on Different Network Interfaces

Multiple Subnets Support

Address Reservation

Syslog Server

SSL Connection

Log Rotation: 6 months, 1 year, 2 years, 3 years

Email Notification

Mail Station

Webmail Interface for Mail Server

Receiving Mails from Multiple POP3 Mailboxes

Customizable SMTP Server

Antivirus Essential

Full System Scan

Scheduled Scan

White List Customization

Virus Definition Auto Update

Time Backup

Maximum Task Number: 8

Multiple File Versions Retained

Instant File Restoration

Cloud Station

Maximum User Accounts: 32

Retain Historical and Deleted File Versions

DLNA®/UPnP® Media Server

DLNA compliant, PS3®/Xbox 360® supported

Download Station

Supported Download Protocols: BT/HTTP/FTP/NZB/eMule

Maximum Concurrent Download Tasks: 80

Other Packages

Photo Station, Audio Station, iTunes® Server, 3rd-party packages

General

Networking Protocols

CIFS, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN)

File System

EXT4, EXT3 (External Disk Only), FAT (External Disk Only), NTFS (External Disk Only)

Storage Management

Max File System Size: 108 TB

Max Internal Volume #: 512

Max iSCSI Target #: 32

Max iSCSI LUN #: 256

Raid Clone/Snapshot support

Supported RAID Type: Synology Hybrid RAID, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10

Synology Expansion Unit Support: DX513, DX213

File Sharing Capability

Max User Account: 2048

Max Group: 256

Max Shared Folder: 256

Max Concurrent CIFS/AFP/FTP Connections: 512

Privilege

Windows Access Control List (ACL)

Directory Service

Windows AD Domain Integration, LDAP Integration

Virtualization

VMware vSphere 4, Microsoft Hyper-V, Citrix Ready

Security

FTP over SSL/TLS, IP Auto-Block, Firewall, Encrypted Network Backup over Rsync, HTTPS Connection

Utilities

Synology Assistant, Synology Data Replicator

Supported Clients

Windows XP onward, Mac OS X 10.5 onward, Ubuntu 9.04 onward

Supported Browsers

Chrome, Internet Explorer® 8 onwards, Firefox®, Safari®

Language

English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svensk, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český

Environment and Packaging

Environment

RoHS Compliant

Package Content

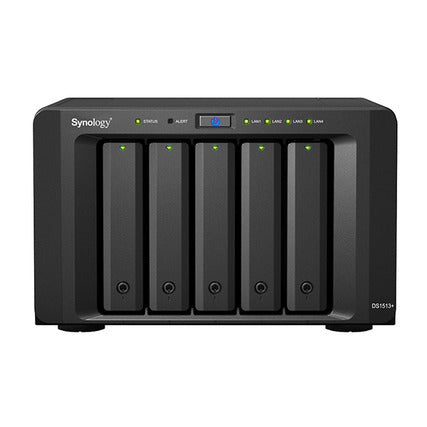

DS1513+ Main Unit

Welcome Note

Assembling Kit

AC Power Cord

RJ-45 LAN Cable × 2

Optional Accessories

Remote, Camera License Pack, Expansion Unit (DX513, DX213)
