Key Specifications

Tone Generation & Kits

Tone Generator Type

AWM2 (Advanced Wave Memory 2)

Maximum Polyphony

256 Notes

Drum/Percussion Sounds

733 Sounds

Kit Quantity

>70 Preset Kits / 200 User Kits

Effects Engine

Instrument Effects

EQ, Compressor, Transient, Insertion

Kit & Master Effects

Ambience, 2x Kit Effects, Master Comp/Effect

Overall Output Effects

Master EQ, Dedicated Phones EQ

Metronome & Training

Tempo Range / Click

30 to 300 BPM; Tap Tempo; 30 User Click Sets

Subdivisions

Accents, 1/4, 1/8, 1/16, and 1/8 Triplets

Training System

10 Types; 37 Preset Songs / 1 User Song

Sampling & Recording

WAV Import Limit

1000 Files (44.1 kHz, 16-Bit)

Max Sample Time

50m 40s (Mono) / 25m 20s (Stereo)

Internal Recorder

90 Seconds (Internal); 90 Minutes (USB Flash)

Connectivity & Bluetooth

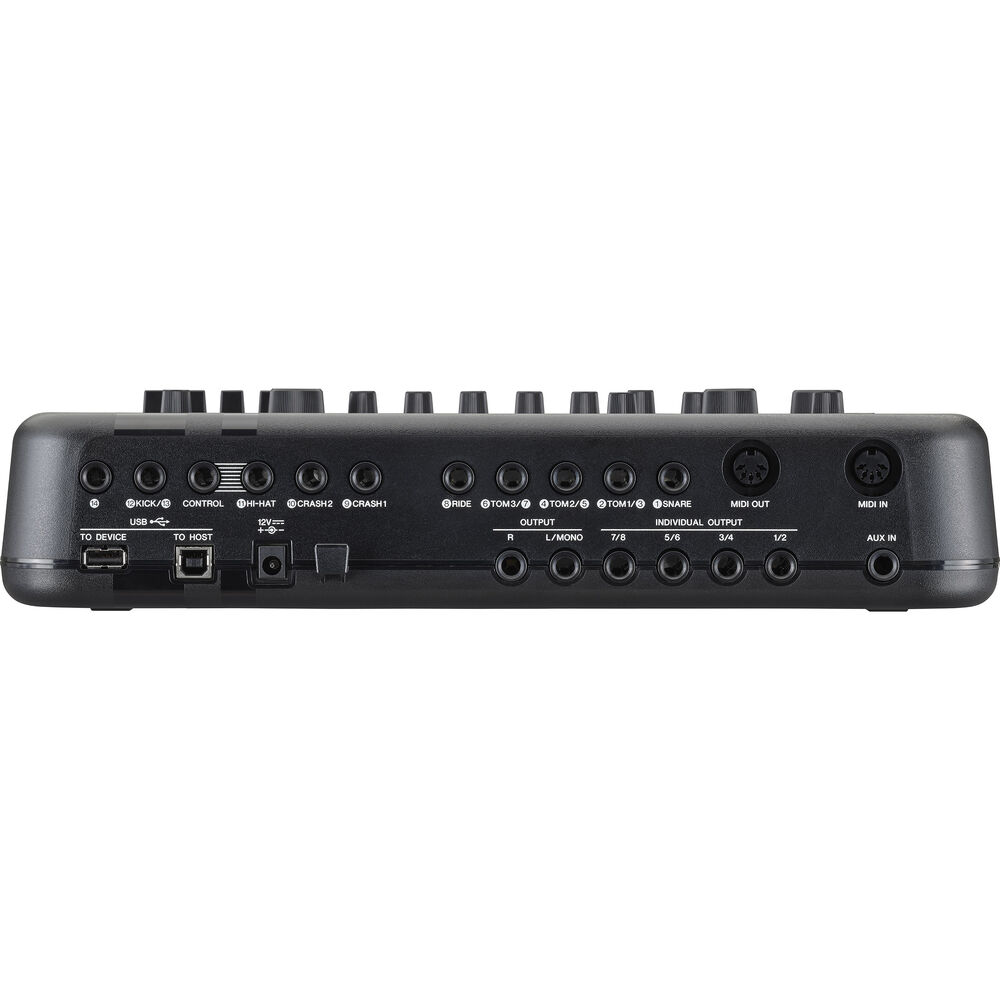

Trigger Inputs

10 x 1/4" TRS (Max 14 Pads via Y-Cables)

Audio Outputs

L/Mono+R Out; 4 x 1/4" TRS Individual Outputs

Bluetooth (v4.1)

A2DP Profile; SBC Codec (10m range)

Digital I/O

USB to Device, USB to Host, 5-Pin MIDI Out

Physical & Packaging

Unit Dimensions / Weight

34.2 x 19.6 x 6.6 cm (13.5 x 7.7 x 2.6") / 2 kg (4.4 lb)

Package Weight

6.785 lb

Box Dimensions

17.8 x 10.7 x 6.7"
