Key Specifications

Product Model

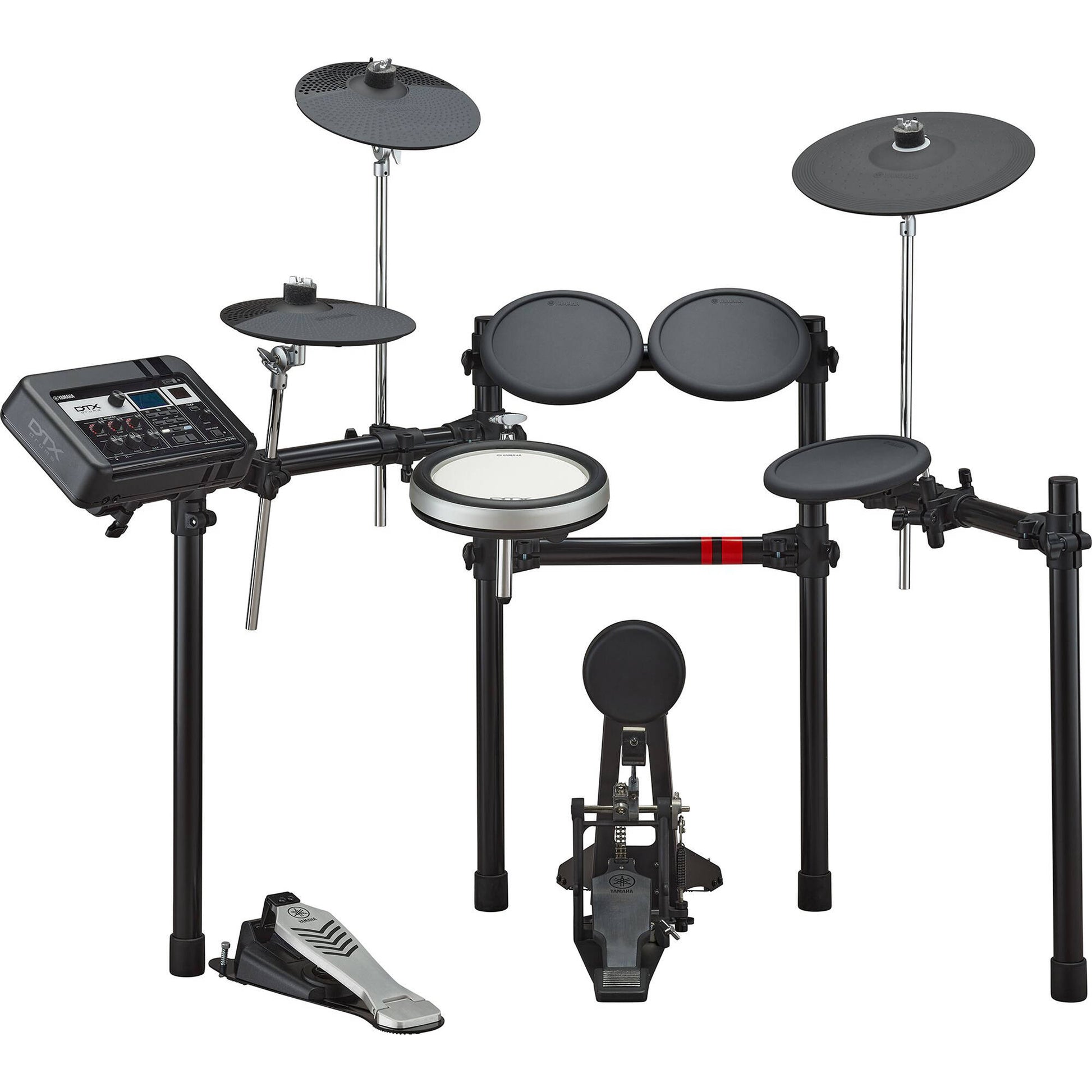

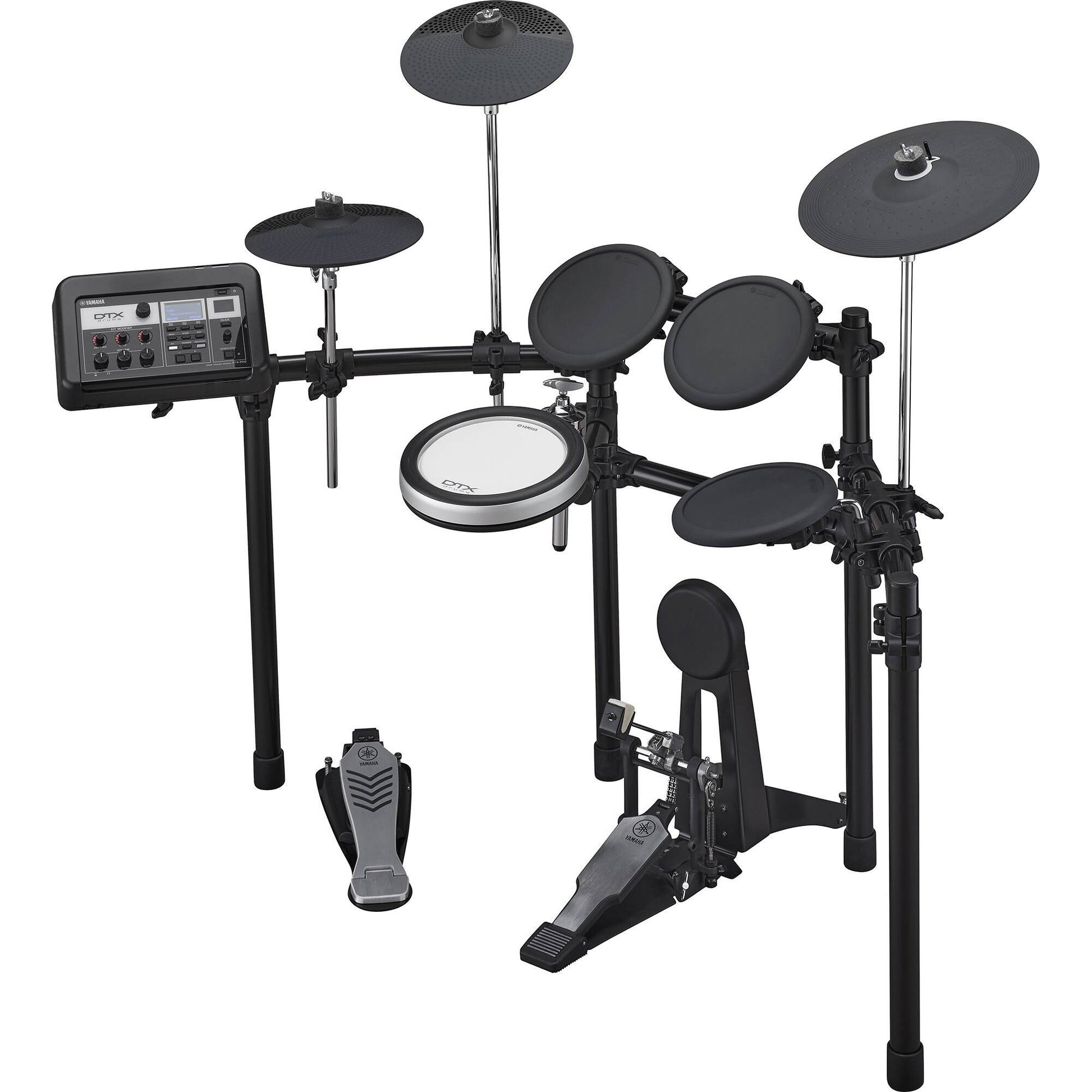

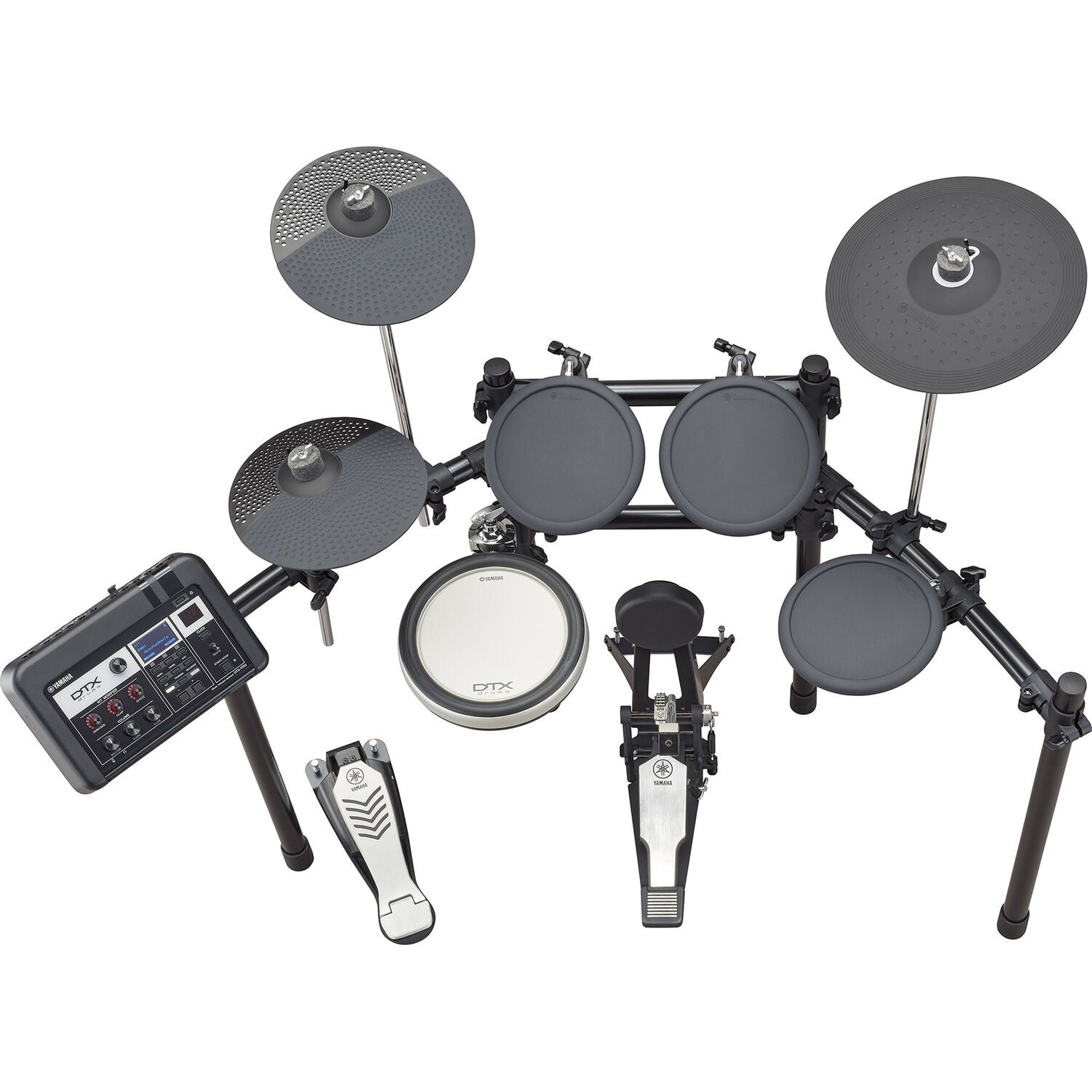

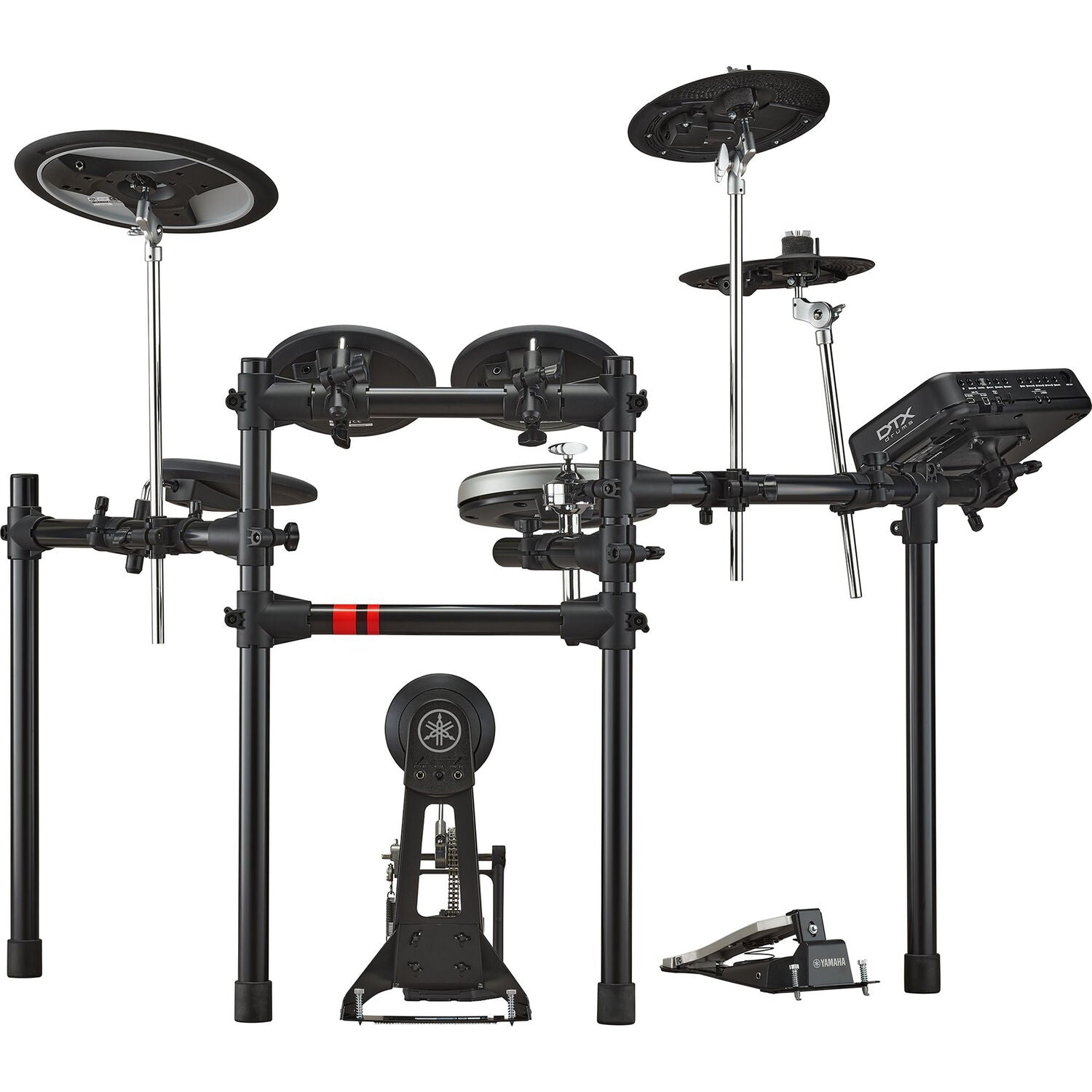

Yamaha DTX6K-X

Kick Pad

1x 5" Rubber Kick Pad

Kick Pedal

Not Included

Snare

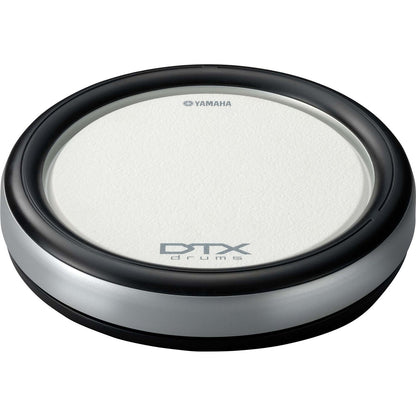

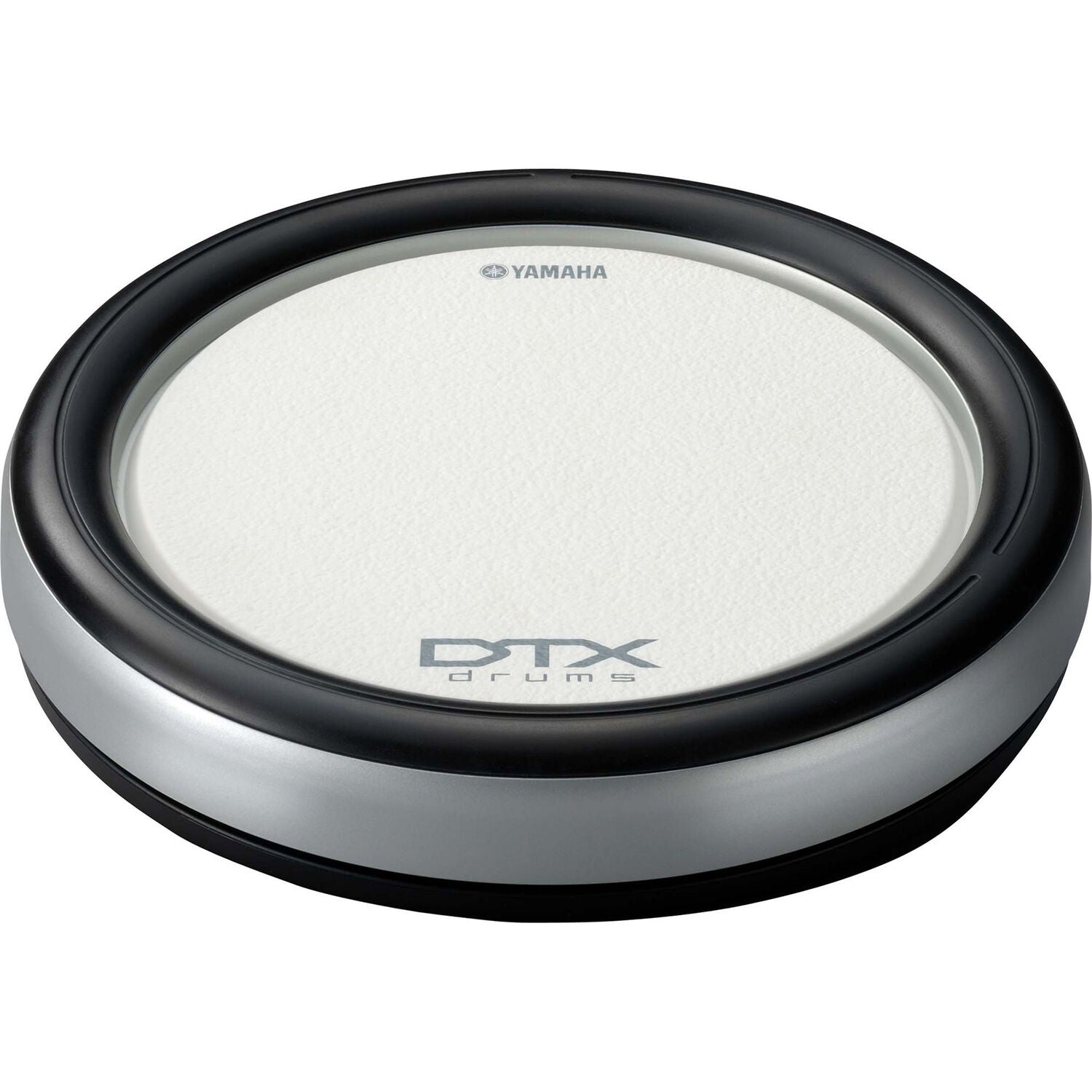

1x 8" Triple-Zone TCS Snare Pad

Hi-Hat

1x 10" Single-Zone Hi-Hat Pad

Hi-Hat Pedal

Included

Toms

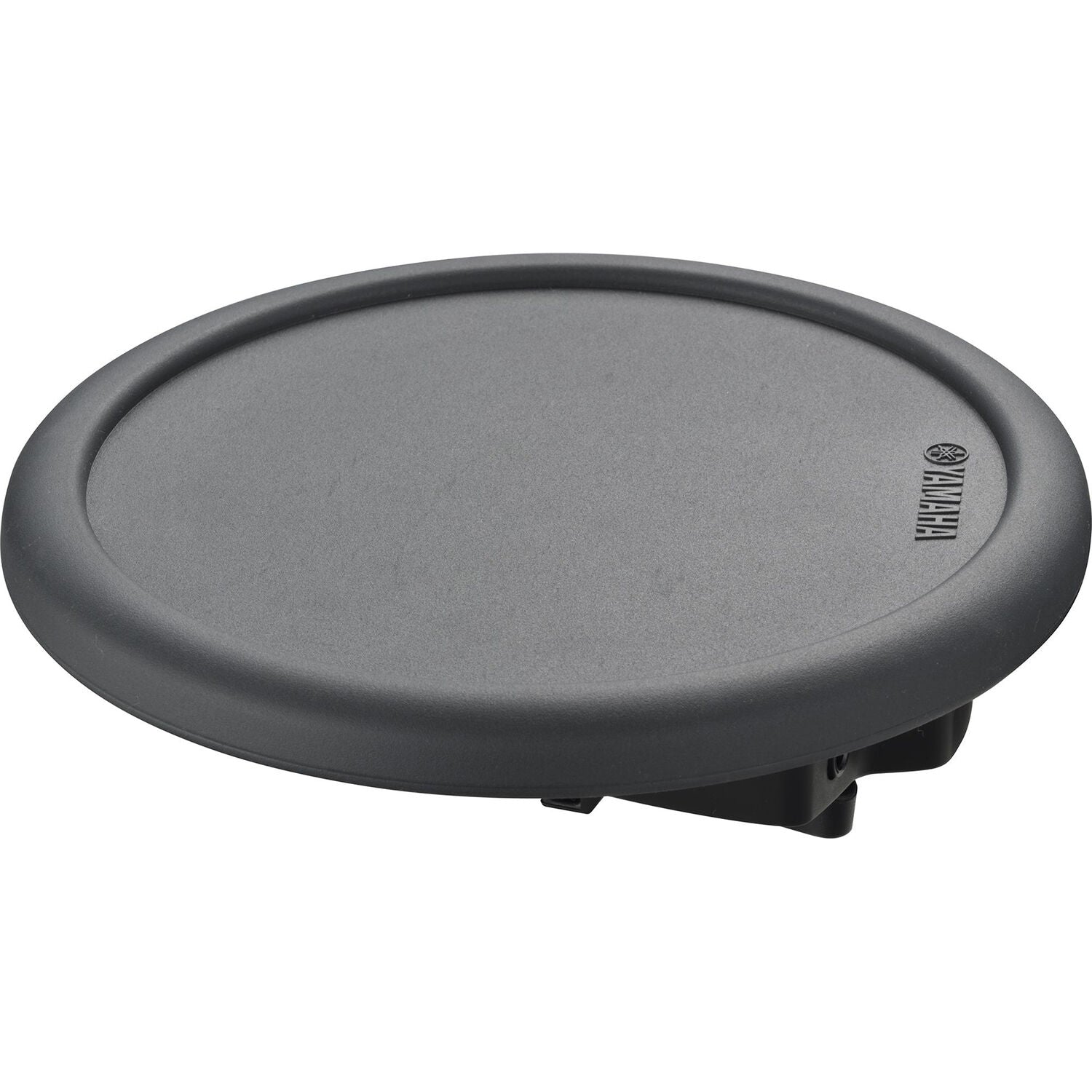

3x 7" Single-Zone TCS Tom Pad

Crash Cymbal

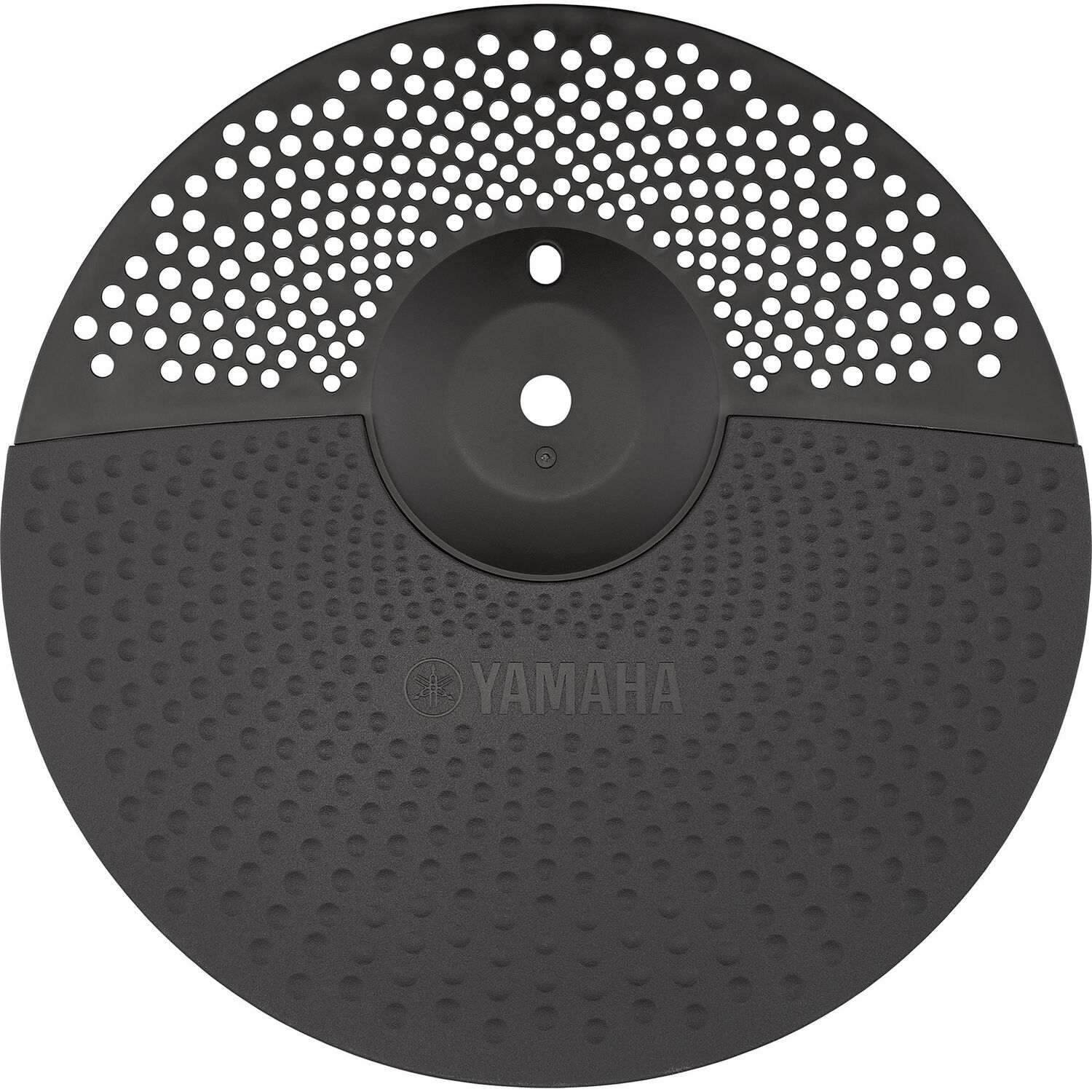

1x 10" Dual-Zone Crash Cymbal Pad with Choke

Ride Cymbal

1x 13" Triple-Zone Ride Cymbal Pad

Display

LCD

Sound Presets

712

Factory Drum Kits

400

User Drum Kits

200

Samples

1000

Tempo Range

30 – 300 BPM

Preset Songs

37 Factory

User Songs

1

Built-In Effects

Multi-FX, Compressor, EQ, Transient

Practice Features

Play-Along / Backing Tracks, Metronome

Audio Recording Format

WAV (44.1 kHz / 16-Bit)

Max Recording Time (Internal Memory)

1.5 Minutes

Max Recording Time (External Memory)

90 Minutes per File

Headphone Output

1x 1/4" TRS

Aux Input

1x 1/8" (3.5 mm) TRS Stereo

Main Output

2x 1/4" TS (Stereo Pair)

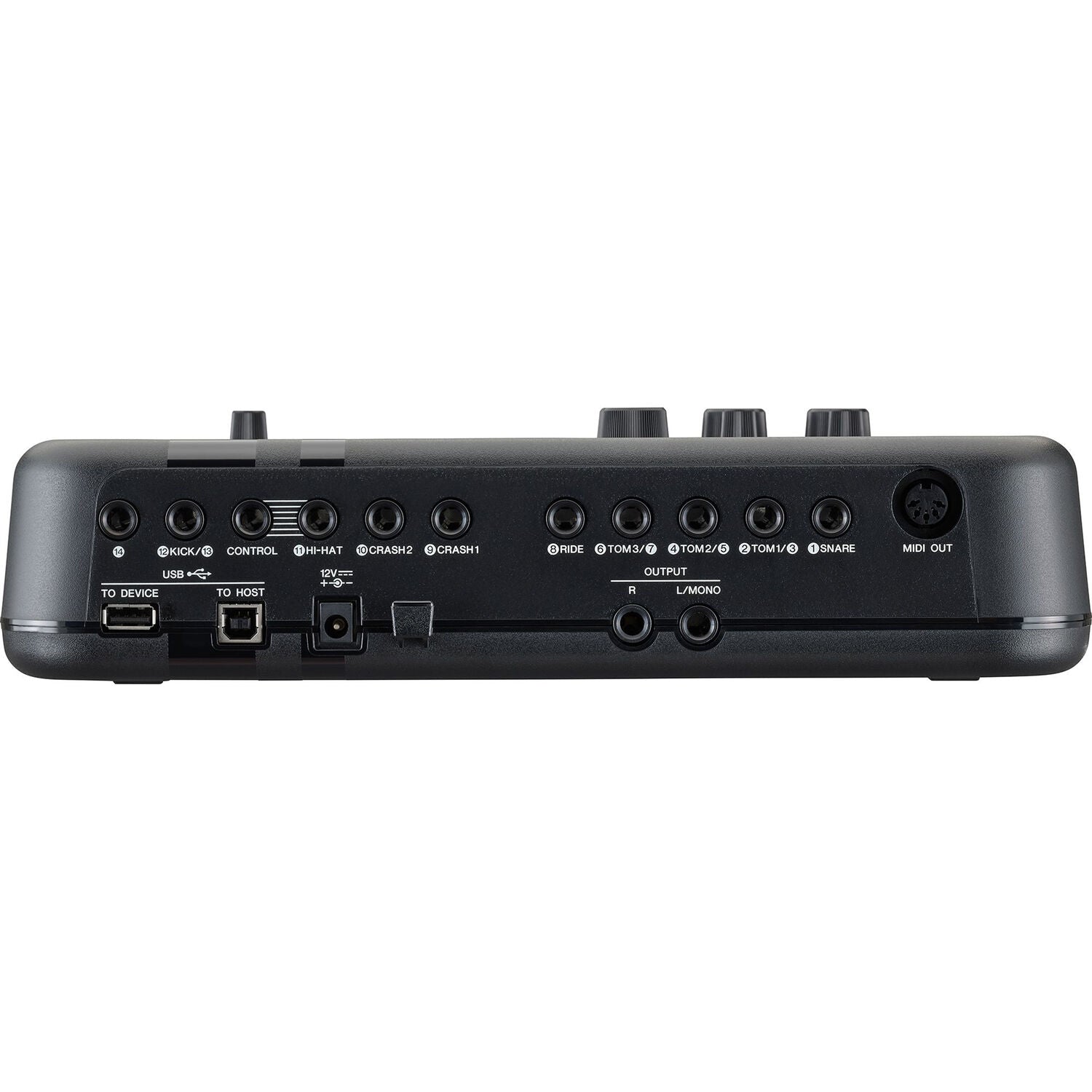

Trigger Inputs

9x 1/4" TRS Trigger Pad Input

Hi-Hat Pedal Input

1x 1/4" TS

MIDI Output

1x DIN 5-Pin

USB Ports

1x USB-A (Device/Controller), 1x USB-B (Host)

Power Supply

12 VDC Adapter (Included)

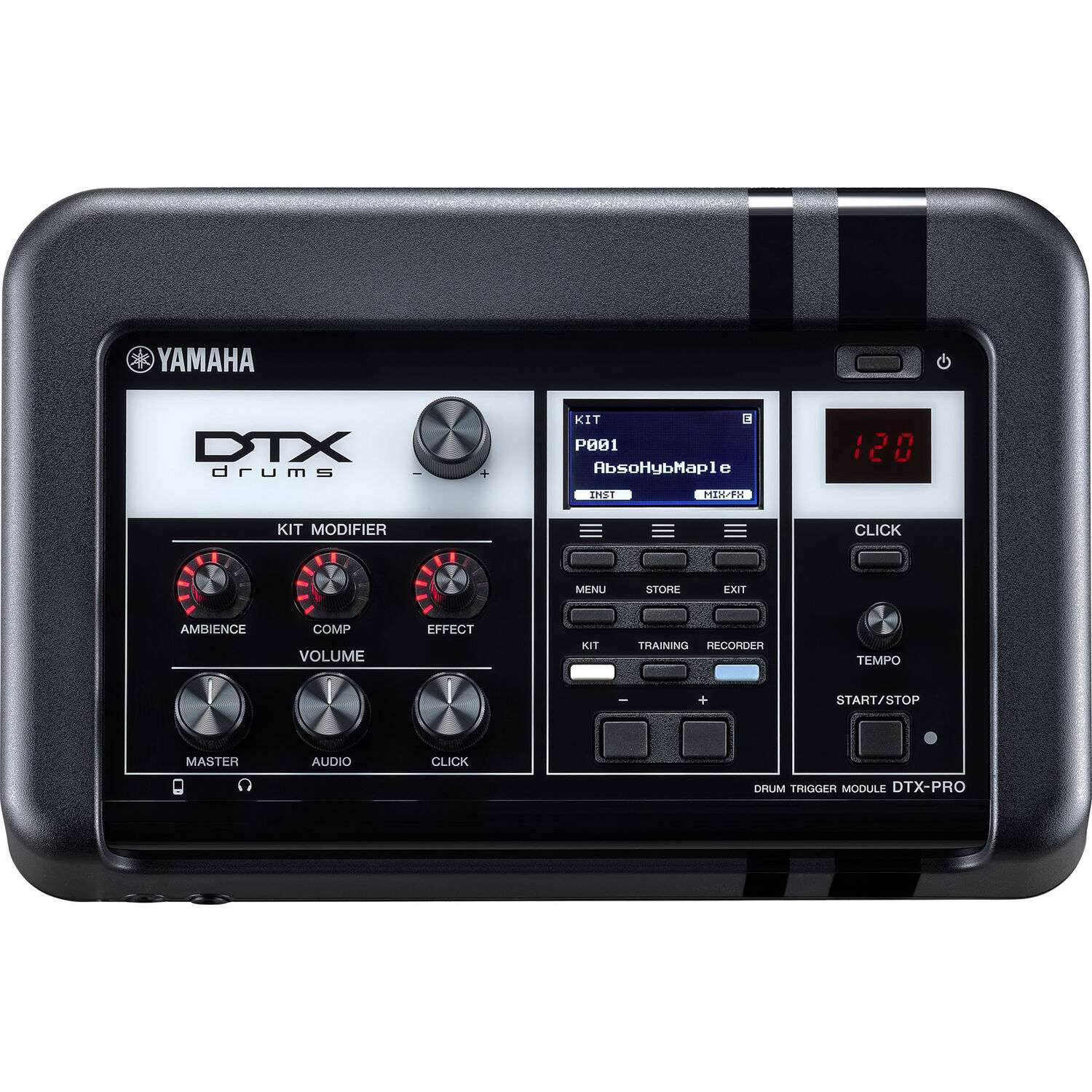

Sound Module Dimensions

11.9 x 7.7 x 2.6" / 30.3 x 19.6 x 6.6 cm

Weight

3.3 lb / 1.5 kg

Package Weight

79.5 lb

Box Dimensions

42 x 21.5 x 15.75"
