Key Specifications

Core Performance & Triggers

Built-in Pads

12 Pads

Pad Functions

Kit/Pattern/Tempo Inc/Dec; Tap Tempo; Click On/Off; Control Change Messages

Polyphony

64 Notes

Sampling Format

16-Bit WAV / AIFF

Kits & Effects

Drum Kits

50 Presets / 200 User-defined

User Memory

200 User Slots

Effects Engine

Variation (42 types); Chorus (6 types); Reverb (6 types); 5-band Master EQ

Sequencer & Patterns

Sequence Capacity

152,000 Notes (Resolution: 480 per quarter note)

Recording Method

Real-time Overdubbing

Patterns

128 Preset (inc. 3 demo); 50 User-defined

Sequence Formats

Proprietary SMF Format 0 (Loading only)

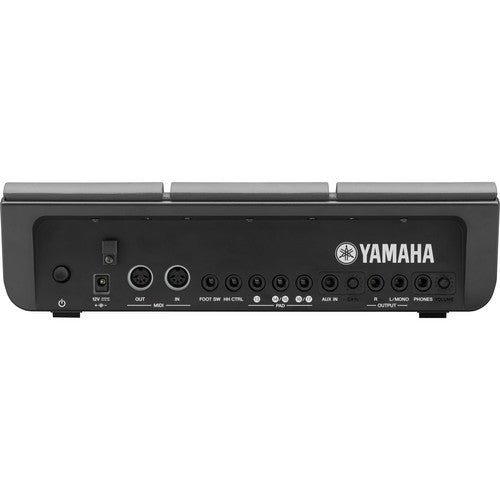

Connectivity & Ports

External Pad Inputs

PAD (13) Stereo; PAD (14/15) & (16/17) Dual Mono

Control Inputs

HI-HAT CONTROL; FOOT SW (Standard Stereo)

Audio I/O

OUTPUT L/MONO & R; PHONES; AUX IN

Data & MIDI

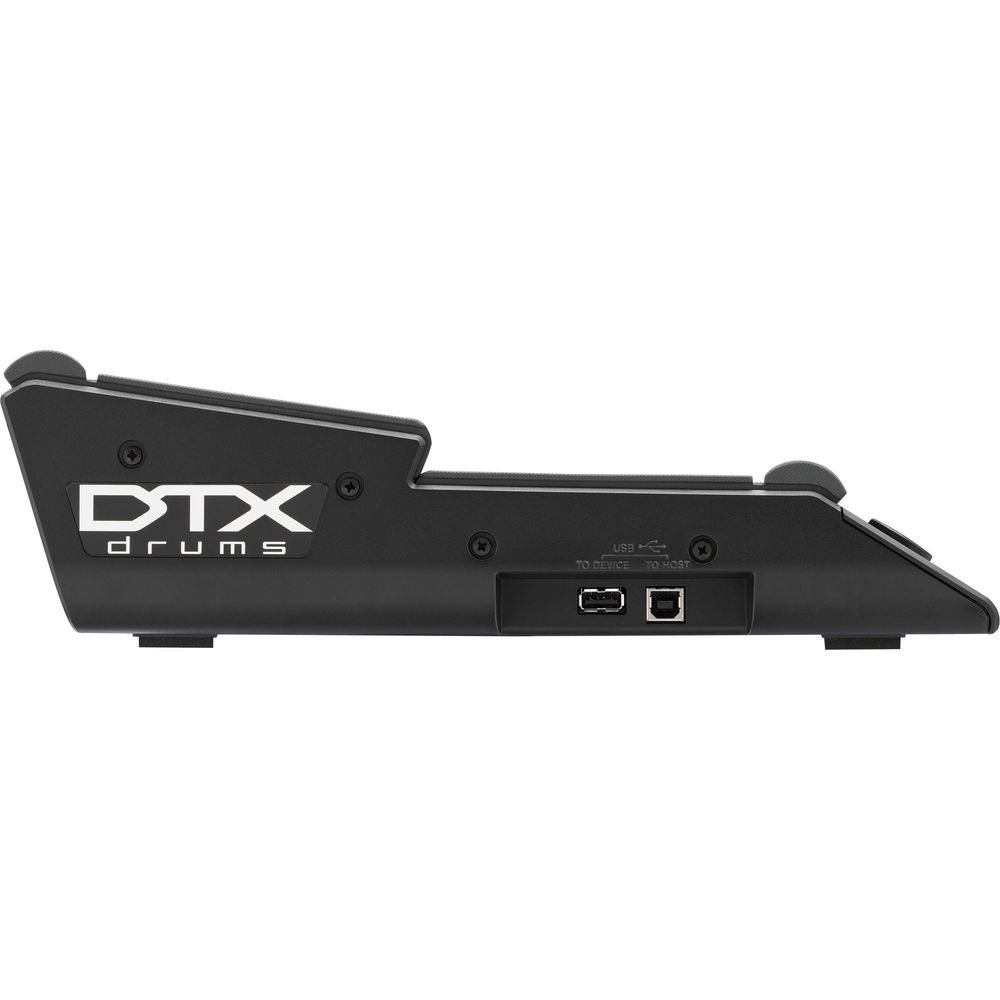

MIDI IN/OUT; USB TO HOST; USB TO DEVICE; DC IN

Physical & Packaging

Unit Dimensions / Weight

345 x 96 x 319 mm (13.58 x 3.77 x 12.55") / 3.3 kg (7.25 lb)

Package Weight

11.4 lb

Box Dimensions

21.5 x 16.5 x 10"
