Key Specifications

Number of Channels

2

Connections

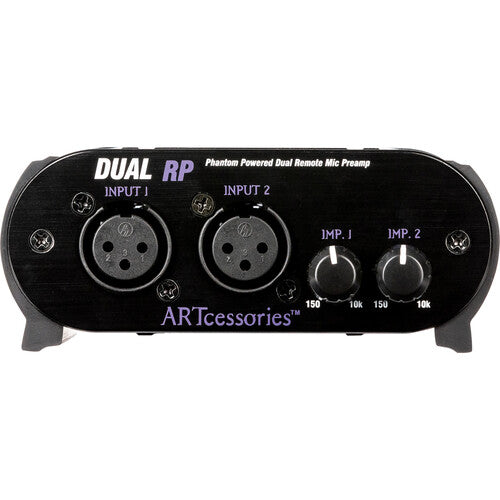

Inputs

2 x XLR Inputs

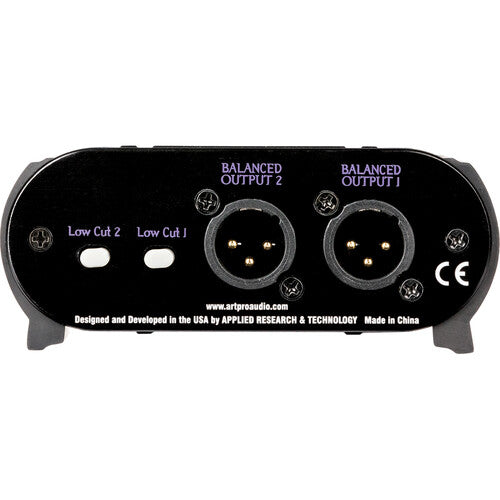

Outputs

2 x XLR Outputs

Performance

Input Impedance

150 Ohms to 10 Kilohms, Variable

Maximum Input Level

-18 dBu

Maximum Output Level

+1 dBm at 600-Ohm Load, +10 dBu at 10-Kilohm Load

Gain

20 dB at 600-Ohm Load, +28 dB at 10-Kilohm Load

THD

≤ 0.002% at 1 kHz, Typical

EIN

-129 dBu, C-Weighted

CMRR

> 40 dB, 20 Hz to 20 kHz

Power

Power Requirements

Standard 48V Phantom Power Supply, 8 mA per Channel

Physical

Dimensions (H × W × D)

1.9 x 4.6 x 3.9" / 4.7 x 11.7 x 9.9 cm

Packaging Info

Package Weight

0.885 lb

Box Dimensions (L × W × H)

6.6 x 5 x 2.8"
