Key Specifications

Active or Passive

Active

System Type

Full-Range

Configuration

2-way

System Continuous Power

570 W

System Peak Power

1140 W

Max SPL @ 1m

133 dB

Freq Range (-10 dB)

40 Hz - 20 KHz

Freq Response (+/-3 dB)

45 Hz - 18 KHz

Bi-amp Mode Switch

No

Bluetooth

No

IP Certification

None

Driver Brand

Wharfedale Pro

LF Driver Size

2 x 15"

LF Voice Coil Size

2.5"

LF Rated Impedance

2 x 8 Ω

LF Power (RE:AES2-2012)

2 x 350 W

HF Driver Type

Compression Driver

HF Voice Coil Size

1.75"

HF Diaphragm Material

Titanium

HF Exit Size

1"

HF Power (RE:AES2-2012)

40 W

HF Rated Impedance

8 Ω

HF Nominal Coverage (H x V)

90° x 60°

Preset Library

No

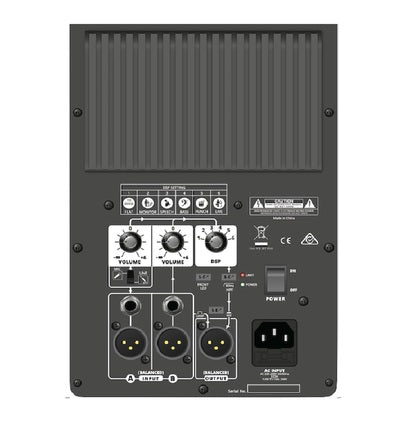

Input Connector

2 x XLR & 2 x 1/4″ (Line/MIC)

Waveguide Type

Elliptical

Enclosure Material

MDF

Grille Material and Finish

Steel Black

Finish

Black Paint

Handles

2

Deployment

Ground

Pole Mount

None

Brackets Included

No

Rigging

No

Sensitivity 2.83v / 1m

n/a dB

System Rated Impedance

n/a

Recommended HPF = BW 18 dB/OCT.

40 Hz

Transformer (T)

No

Transformer Taps (70 V)

No

Transformer Taps (100 V)

No

Input Connectors (T)

No

Amplifier design

Class D

DSP Controls

Flat / Monitor / Speech / Bass / Punch / Live

Preset List

Flat / Monitor / Speech / Bass / Punch / Live

Active Loudspeaker Input Impedance

Balanced: 20 K

Link Connector

Pin XLR

Input Sensitivity

775 mv

Max Input Level

4 v

Line Output

Switchable LOOP/MIX Balanced Socket XLR

Main Power

220-240 V 50/60 Hz

Power Supply

SMPS

Included Accessory

User Manual, AC Cable

Unpacked - Height (mm)

1058

Unpacked - Width Front (mm)

444.5

Unpacked - Width Rear (mm)

245.3

Unpacked - Depth (mm)

429

Packed - Height (mm)

1125

Packed - Width Front (mm)

520

Packed - Width Rear (mm)

290

Packed - Depth (mm)

496

Weight - Nett (kg)

34.3

Weight - Gross (kg)

38.7
