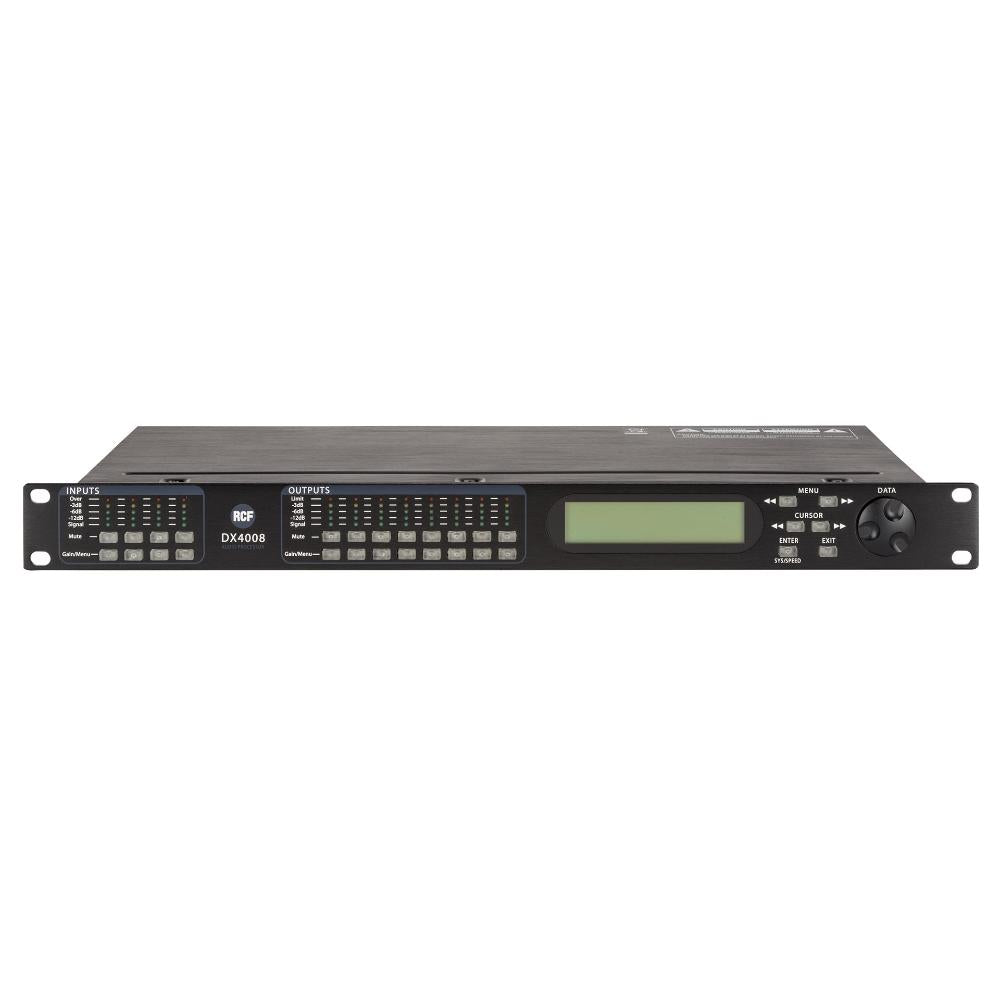

DX 4008

The DX 4008 is a complete 4 input - 8 output digital loudspeaker management system designed for the touring or fixed sound installation markets
Sampling rate can be set to 96kHz
Precise frequency control is achieved with its 1 Hz resolution
Inputs and outputs can be routed in multiple configuration to meet any requirements
The DX 4008 is shipped with a special PC Graphic User Interface (GUI) application - XLink
XLink gives the user an option to control the DX 4008 unit from a remote PC via the RS232 serial communication link
The GUI application makes much easier control and monitor the device, allowing the user to get the whole picture on one screen
Programs can be recalled and stored from/to PC's hard drive, thus expanding the storage to become virtuality limitless

₱198,000.00 VAT INC.

₱198,000.00

UNIT: PIECE/S

Product Code: SKU:RCF-DX4008-CHN-1907

The DX 4008 is a complete 4 input - 8 output digital loudspeaker management system designed for the touring or fixed sound installation markets
Sampling rate can be set to 96kHz
Precise frequency control is achieved with its 1 Hz resolution
Inputs and outputs can be routed in multiple configuration to meet any requirements
The DX 4008 is shipped with a special PC Graphic User Interface (GUI) application - XLink
XLink gives the user an option to control the DX 4008 unit from a remote PC via the RS232 serial communication link
The GUI application makes much easier control and monitor the device, allowing the user to get the whole picture on one screen
Programs can be recalled and stored from/to PC's hard drive, thus expanding the storage to become virtuality limitless

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

RCF DX 4008

Key Specifications
Audio Performance
Frequency Response (-3 dB)	20 Hz - 20 kHz
Crosstalk	< -100 dB
Distortion (THD+N) @ 1 kHz Nominal Power	< 0.001%
Dynamic Range	> 115 dB
Common Mode Rejection Ratio (50 Hz to 10 kHz)	> 60 dB
Digital Audio Performance
Resolution	40-Bit
Sampling Rate	96 kHz
A/D - D/A Converters	24-Bit
Propagation Delay	3 ms

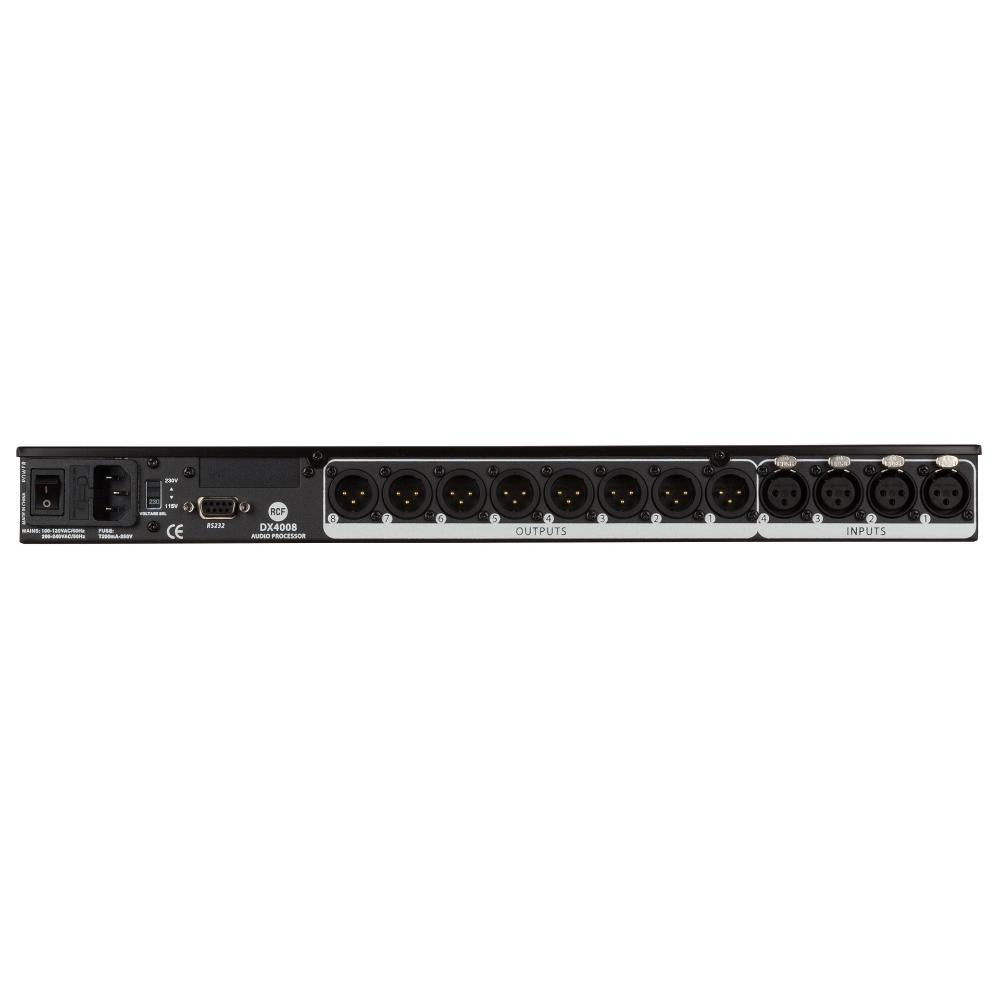

Input Section
Total Number of Inputs	4
Balanced Inputs	4
Mono Inputs	4
Line Inputs	4
Line Connectors	XLR
Output Section
Signal Output Number	8
Signal Output Connectors	XLR
Processing
DSP	Yes
EQ Filters	Yes
Delay	Yes
Tone Controls	Yes
High-Pass Filter	20 Hz - 20 kHz
Crossover	20 Hz - 20 kHz
Controls
Configuration	Front Panel, PC Software
Number of Programs / Presets	30
Protocols for System Integration	ASCII
Protections
Cooling	Convection
Fuses	Yes
Power Requirement
Operating Voltage	220-240 / 115 V~ 50/60 Hz
Voltage Selection	External
Power Consumption (Max)	20 W
Standard Compliance
Safety Agency	CE Compliant
Physical Specifications
Cabinet / Case Material	Metal
Color	Black
Rack Mounting	19", 1U
Size / Weight
Height	44 mm / 1.73"
Width	483 mm / 19.02"
Depth	203 mm / 7.99"
Weight	2.96 kg / 6.53 lb
