Key Specifications

Speaker Type

Active Loudspeaker

Configuration

2-Way

Total Output Power

700 W RMS / 1100 W Peak

Amplifier Class

Class-D

Drivers

LF Driver

1 × 10" / 25.4 cm Woofer, Voice Coil: 2" / 5.08 cm, Magnet: Ferrite

HF Driver

1 × 1.75" / 44.45 mm Compression Driver, Throat: 1" / 25 mm, Magnet: Neodymium

Performance

Frequency Range/Response

56 Hz to 20 kHz (-10 dB)

Maximum SPL

132 dB SPL

Coverage Angle

90° H × 60° V (Horn)

Protections

AC Coupling, Crossover Overload, DC Fault

Signal Processing

Crossover Frequency

2300 Hz

EQ & Filters

High-Pass Filter

Dynamic Processing

Compression, Multiband Limiter

Digital Signal Processing

Venue Settings, 48-Bit DSP, FIR Filter

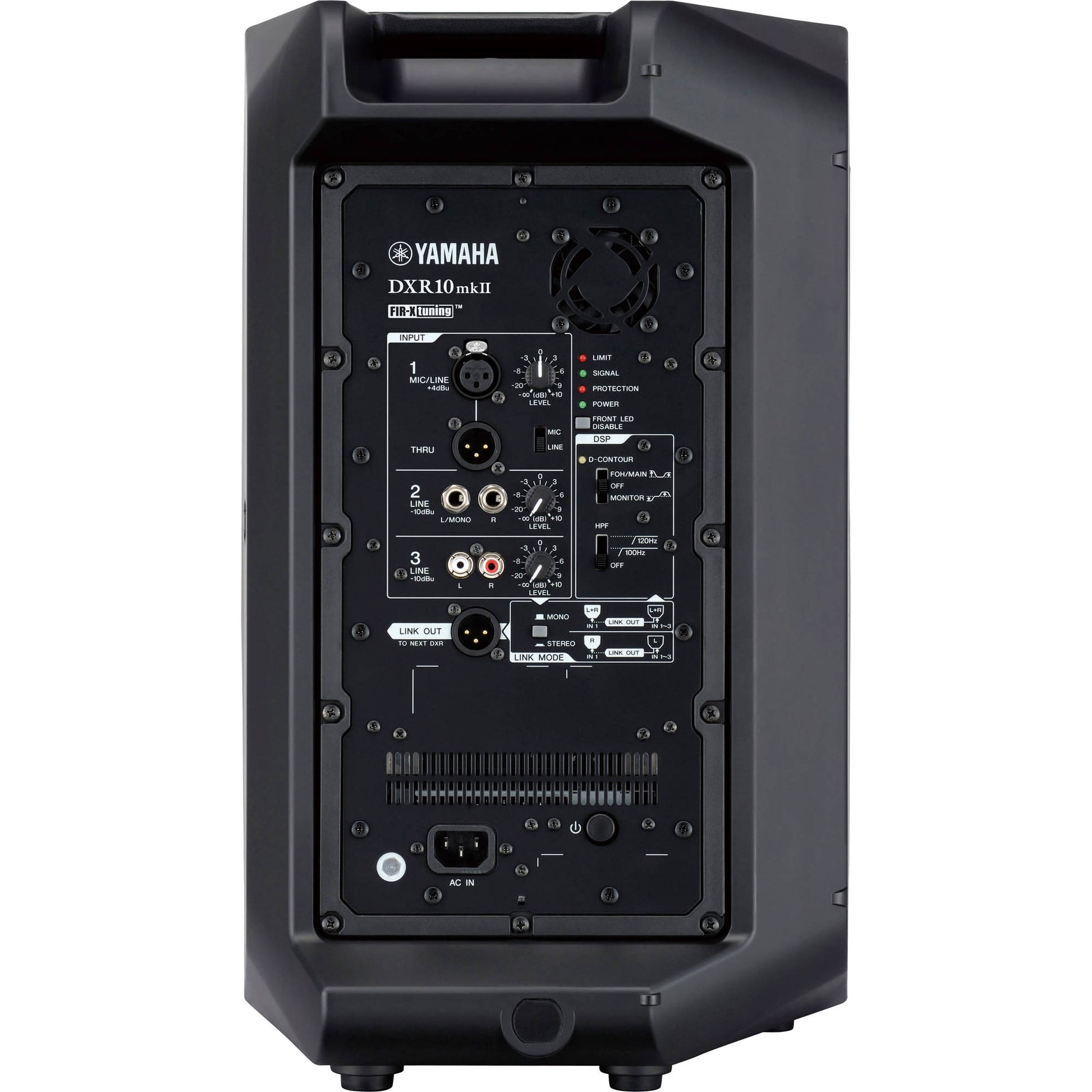

Connectivity

Audio I/O

1 × XLR 3-Pin Input
2 × 1/4" TS Input
1 × Stereo RCA Input
1 × XLR 3-Pin Thru
1 × XLR 3-Pin Link Output

Network I/O

No

USB I/O

No

Wireless

No

Mobile App Compatible

No

Power

AC Input Power

100–240 VAC, 50 / 60 Hz

AC Power I/O

1 × IEC Input

Power Consumption

90 W

Physical

Color

Black

Mounting

Stand Mount, 1 × 1.38" / 35 mm Dual-Angle Pole Socket, Suspension Points: 2 × M8 Fly Point (Top), 1 × M8 Fly Point (Rear)

Handles

1 × Top

Construction Material

ABS

Environmental Resistance

No

Dimensions

12 × 19.8 × 12.2" / 305 × 502 × 310 mm

Weight

30.6 lb / 13.9 kg

Packaging Info

Package Weight

37.35 lb

Box Dimensions (L × W × H)

25 × 15.25 × 15"
