Key Specifications

Frequency Range / Response

42 Hz – 150 Hz

Enclosure Type

Bass-Reflex

Total Output Power

800 W RMS / 1020 W Peak

Drivers

LF Driver

1x 12" / 30 cm Woofer
Voice Coil: 2.5" / 6.35 cm

Performance

Frequency Range / Response

42 Hz – 150 Hz

Maximum SPL

134 dB

Signal Processing

EQ & Filters

No

Alignment Delay

No

Digital Signal Processing

No

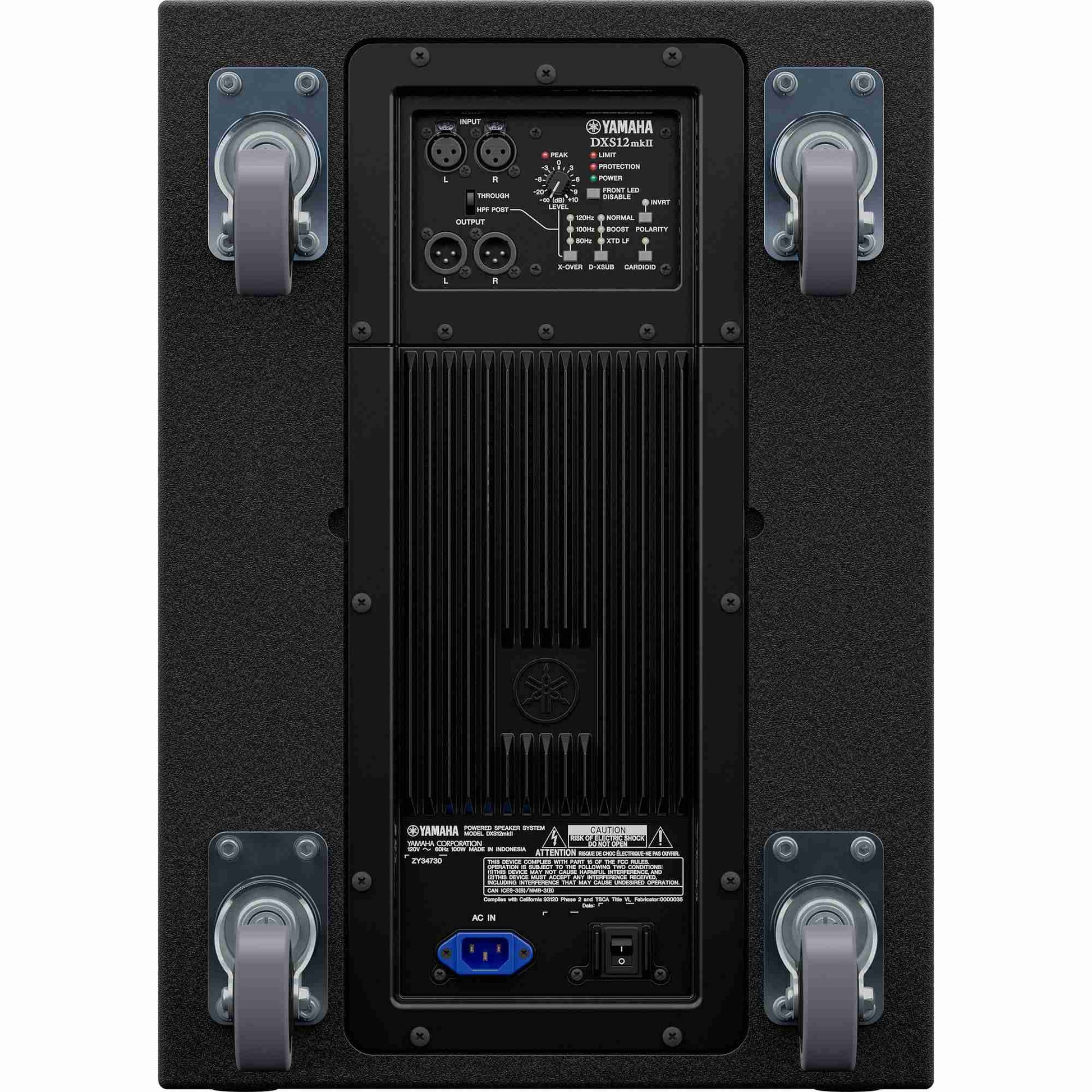

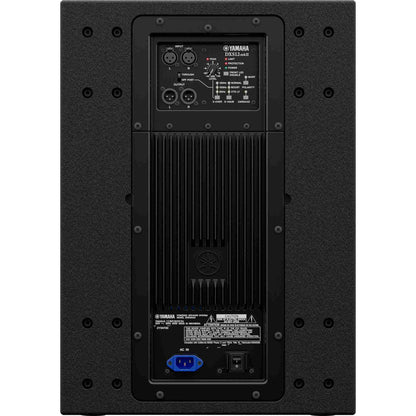

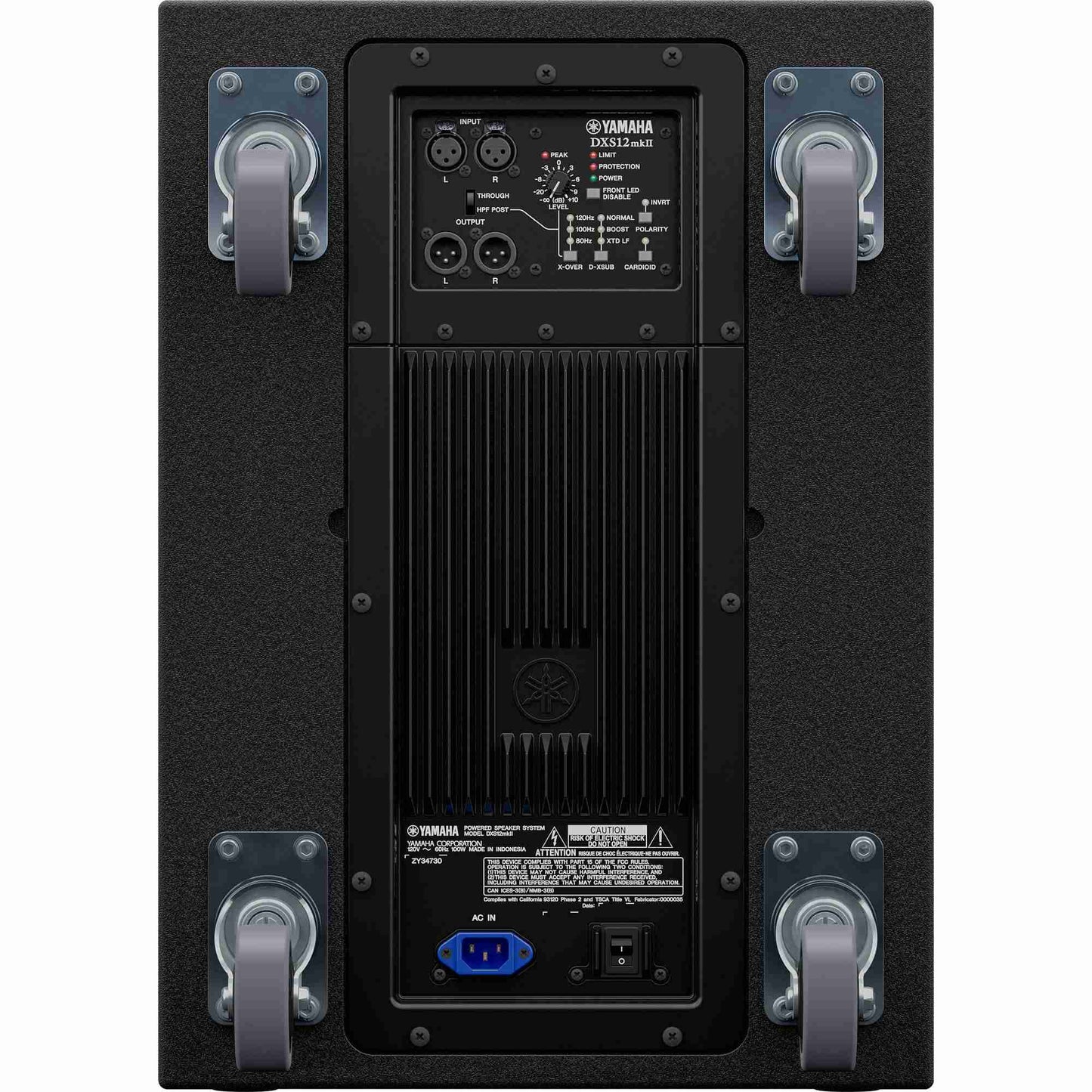

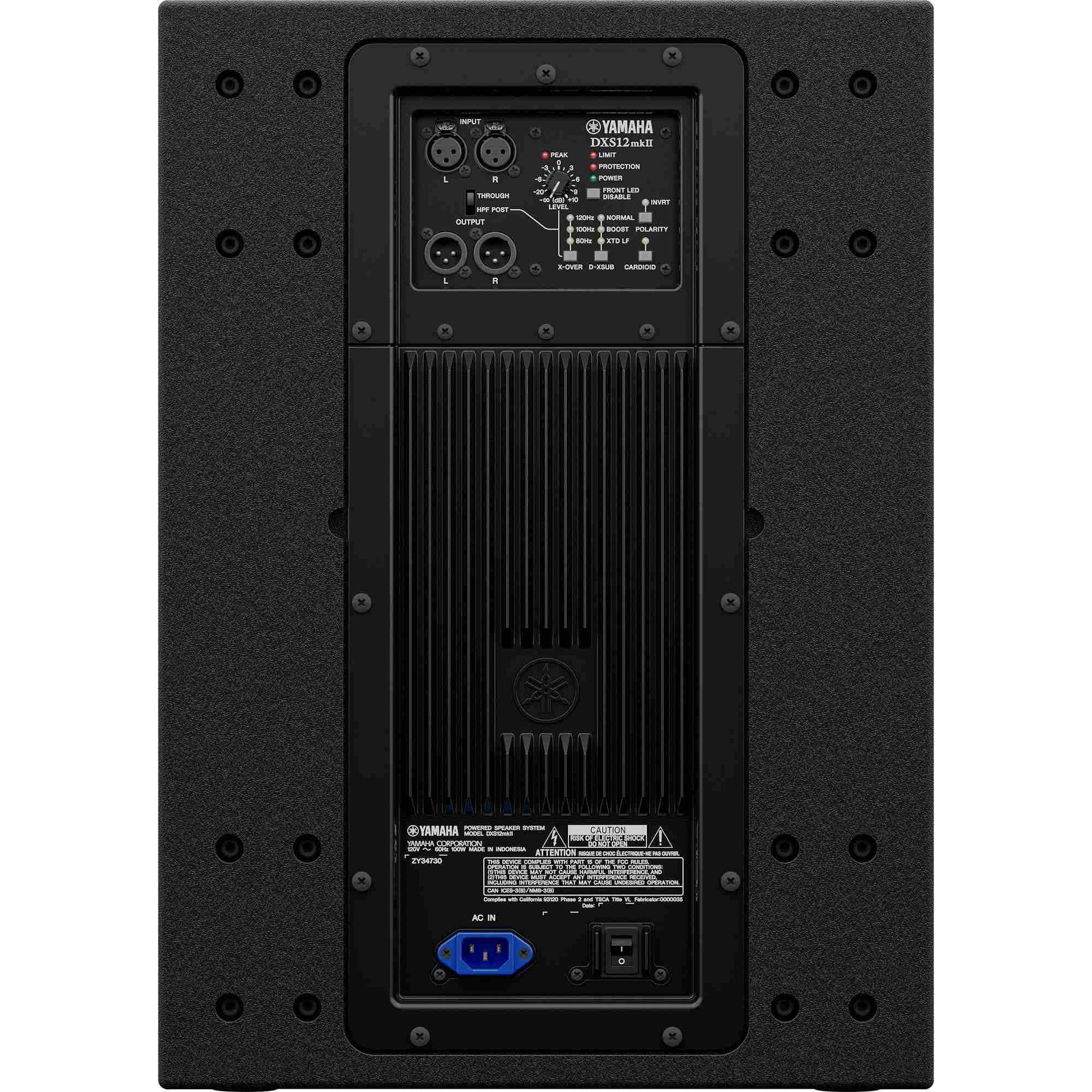

Connectivity

Audio I/O

2x XLR 3-Pin Input
2x XLR 3-Pin Thru

Network I/O

No

USB I/O

No

Wireless

No

Mobile App Compatible

No

Power

AC Input Power

100 to 240 VAC, 50 / 60 Hz

AC Power I/O

1x IEC Input

Power Consumption

100 W

Physical

Color

Black

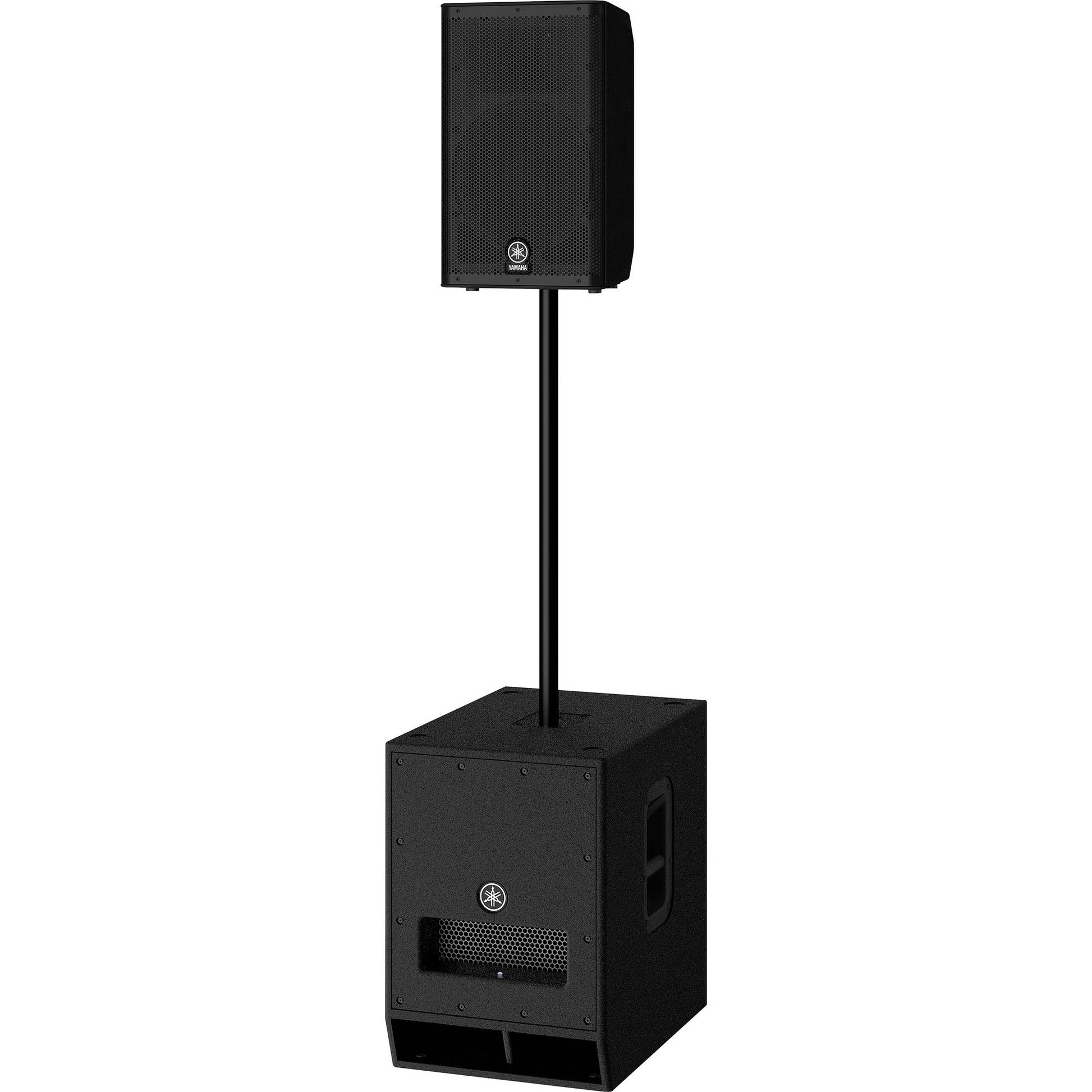

Mounting

1 × 1.38" / 35 mm Pole Socket
1 × M20-Threaded Pole Socket

Construction Material

Plywood

Environmental Resistance

No

Dimensions (H × W × D)

15.8 × 22.3 × 22.4" / 400 × 567 × 570 mm

Weight

66.1 lb / 30 kg

Packaging Info

Package Weight

74.6 lb

Box Dimensions (L × W × H)

28 × 26 × 19"
