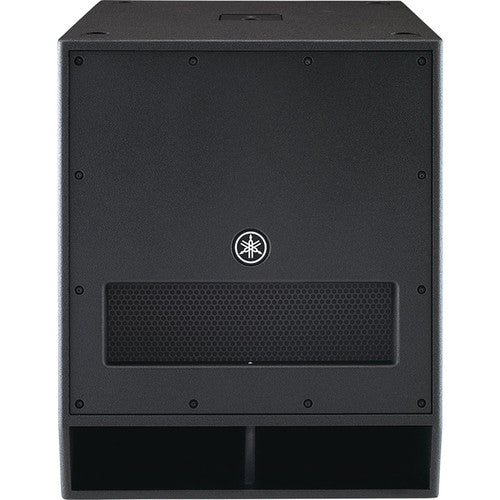

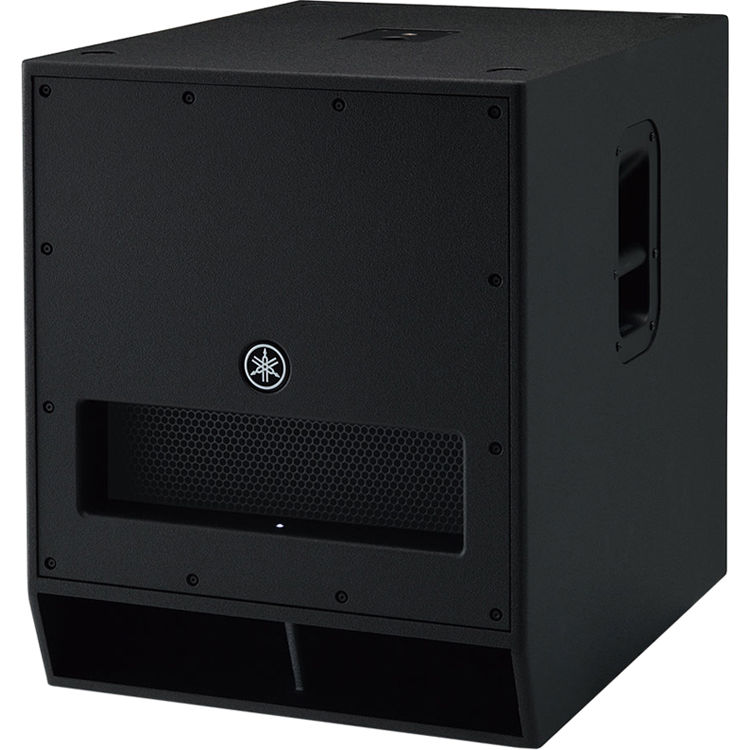

The DXS18 18" 1020W Active Subwoofer from Yamaha provides powerful bass reinforcement in a compact design, ideal for use alongside the DXR and DSR full-range loudspeakers. The subwoofer has a wooden enclosure with an optimized bandpass design that delivers high SPL levels with minimal distortion. The high-power 18" woofer is capable of reproducing frequencies as low as 32Hz. It is finished with a durable Line-X elastomeric coating.

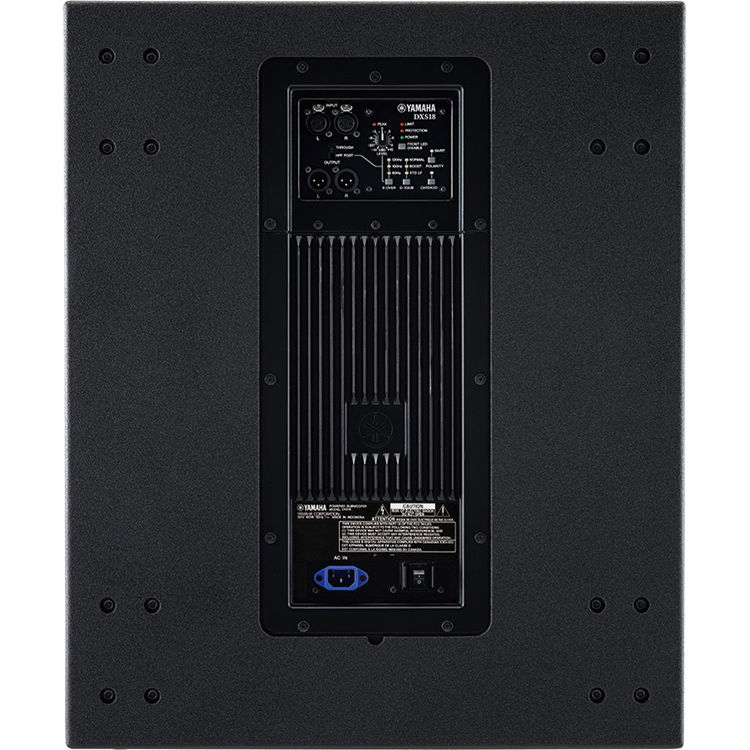

The subwoofer is driven by a Class-D amplifier with a peak power rating of 1020W for clear, powerful bass. D-XSUB processing is built into the subwoofer, allowing you to choose between Normal, Boost, or Xtended LF modes. For setups consisting of two or more DXS18 subwoofers, selecting the Cardioid Mode function effectively decreases stage-side sound pressure while increasing the bottom-end output directed towards the audience, resulting in a clearer stage monitoring environment and a more pronounced bass experience out front. The rear panel has XLR input and thru connectors for compatibility with a variety of speakers and sound systems. Standard M20 and 35mm pole sockets allow you to mount a full-range speaker on top of the subwoofer, while integrated handles offer convenient transportation.
YAMAHA DXS18
Key Specifications
Frequency Range / Response
32 Hz – 120 Hz (-10 dB)
Enclosure Type
Bandpass
Total Output Power
1020 W
Amplifier Class
Class-D
Drivers
LF Driver
1x 18" / 45.7 cm Woofer Voice Coil: 4" / 10.16 cm
Performance
Frequency Range / Response
32 Hz – 120 Hz (-10 dB)
Maximum SPL
136 dB
Protections
Overcurrent, Thermal
Signal Processing
Crossover Frequency
120 / 100 / 80 Hz
EQ & Filters
No
Alignment Delay
No
Connectivity
Audio I/O
2x XLR 3-Pin Line Input 2x XLR 3-Pin High-Pass / Line Thru / Output
Network I/O
No
USB I/O
No
Wireless
No
Mobile App Compatible
No
Power
AC Input Power
100 to 240 VAC, 50 / 60 Hz
AC Power I/O
1x IEC Input
Power Consumption
100 W
Physical
Color
Black
Mounting
1 × 1.38" / 35 mm Pole Socket (Top) 1 × M20-Threaded Pole Socket (Top)
