Key Specifications

Frequency Range

30 Hz – 150 Hz (-10 dB)

Enclosure Type

Bass-Reflex

Total Output Power

1200 W RMS / 1600 W Peak

Amplifier Class

Class-D

Drivers

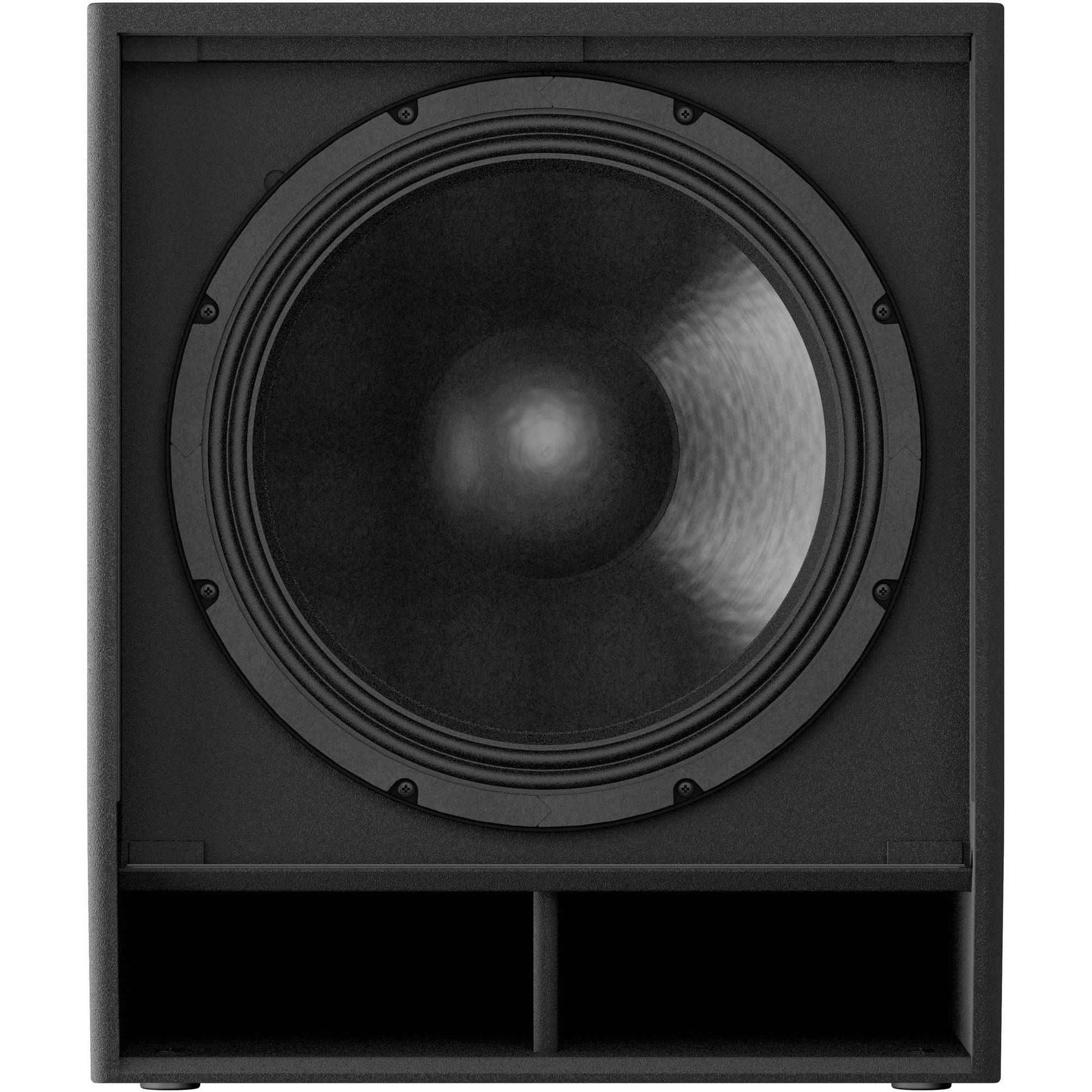

LF Driver

1× 18" Woofer
4" Voice Coil
Ferrite Magnet

Performance

Frequency Range

30 Hz – 150 Hz (-10 dB)

Maximum SPL

136 dB

Signal Processing

EQ & Filters

No

Alignment Delay

No

Digital Signal Processing

No

Connectivity

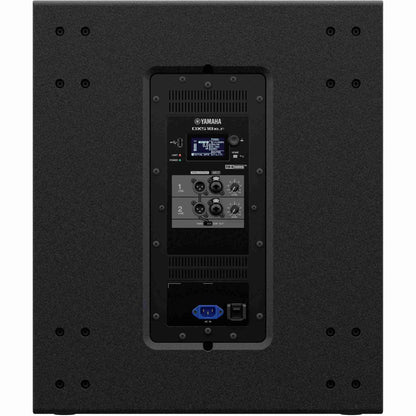

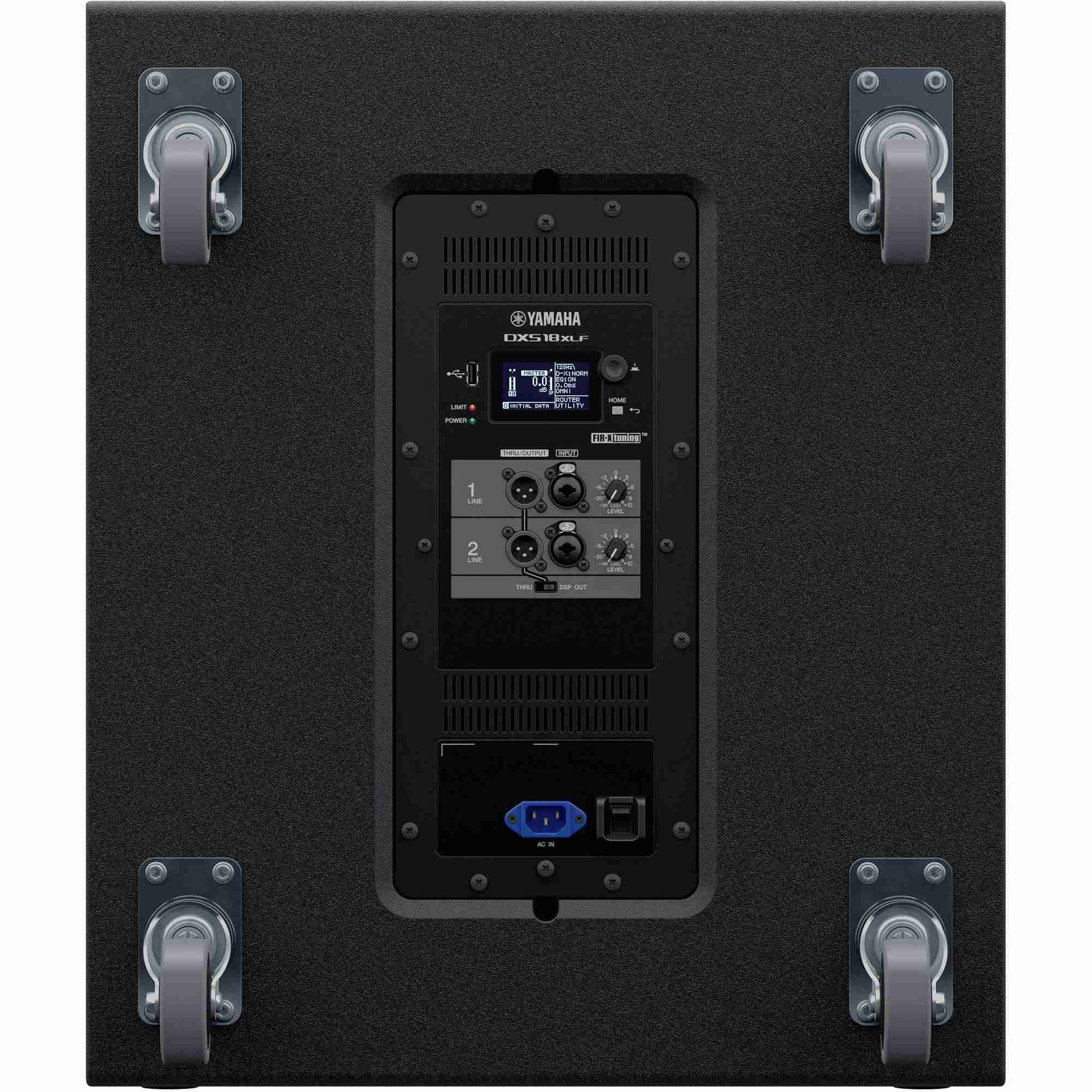

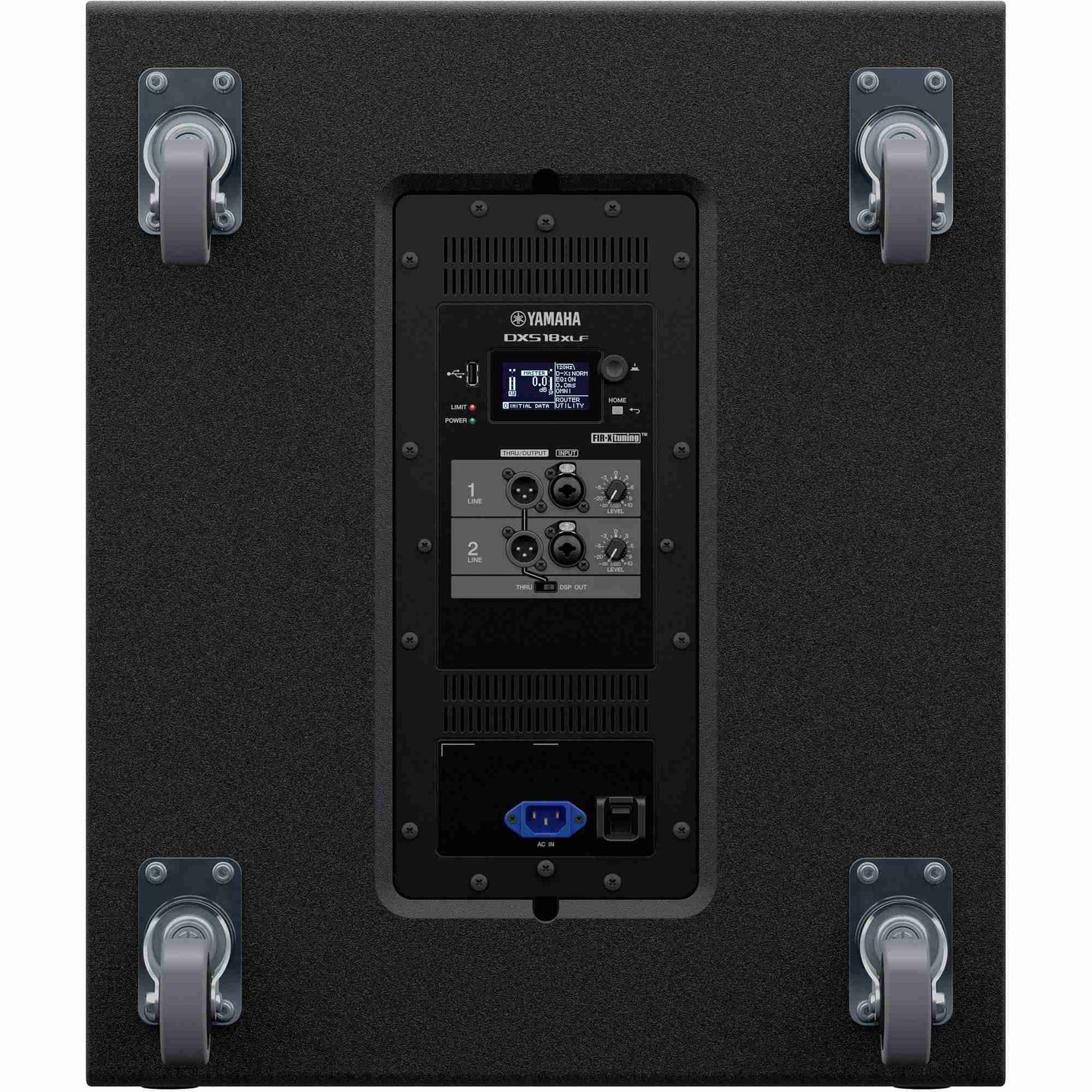

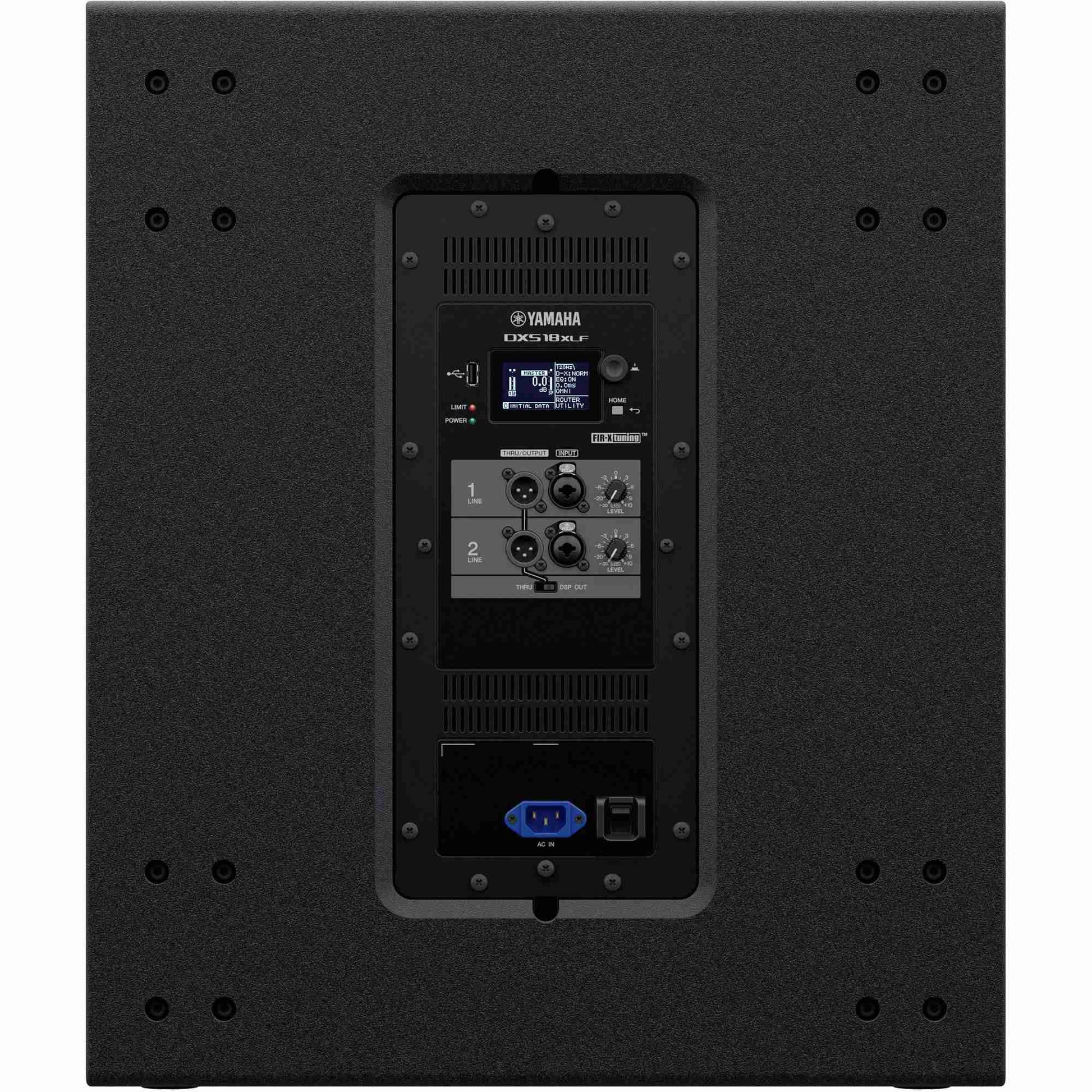

Audio I/O

2× Combo XLR-1/4" TRS Input
2× XLR 3-Pin Output

Network I/O

No

USB I/O

1× USB-A (External Memory)

Wireless

No

Mobile App Compatible

No

Power

AC Input Power

100–240 VAC, 50/60 Hz

AC Power I/O

1× IEC (Locking)

Power Consumption

40 W (Idle)
180 W (1/8 Power)

Physical

Color

Black

Mounting

1× 35 mm Pole Socket (Top)
1× M20 Threaded Pole Socket (Top)

Handles

1× Each Side

Construction Material

Plywood

Environmental Resistance

No

Dimensions (H × W × D)

21.7 × 25.9 × 28.3"
550 × 657 × 720 mm

Weight

107.8 lb / 48.9 kg

Packaging

Package Weight

129 lb

Box Dimensions (L × W × H)

33 × 31 × 26.25"
