Key Specifications

Speaker Type

Active Loudspeaker

Configuration

2-Way

Total Output Power

950 W RMS / 2000 W Peak

Enclosure Type

Bass-Reflex

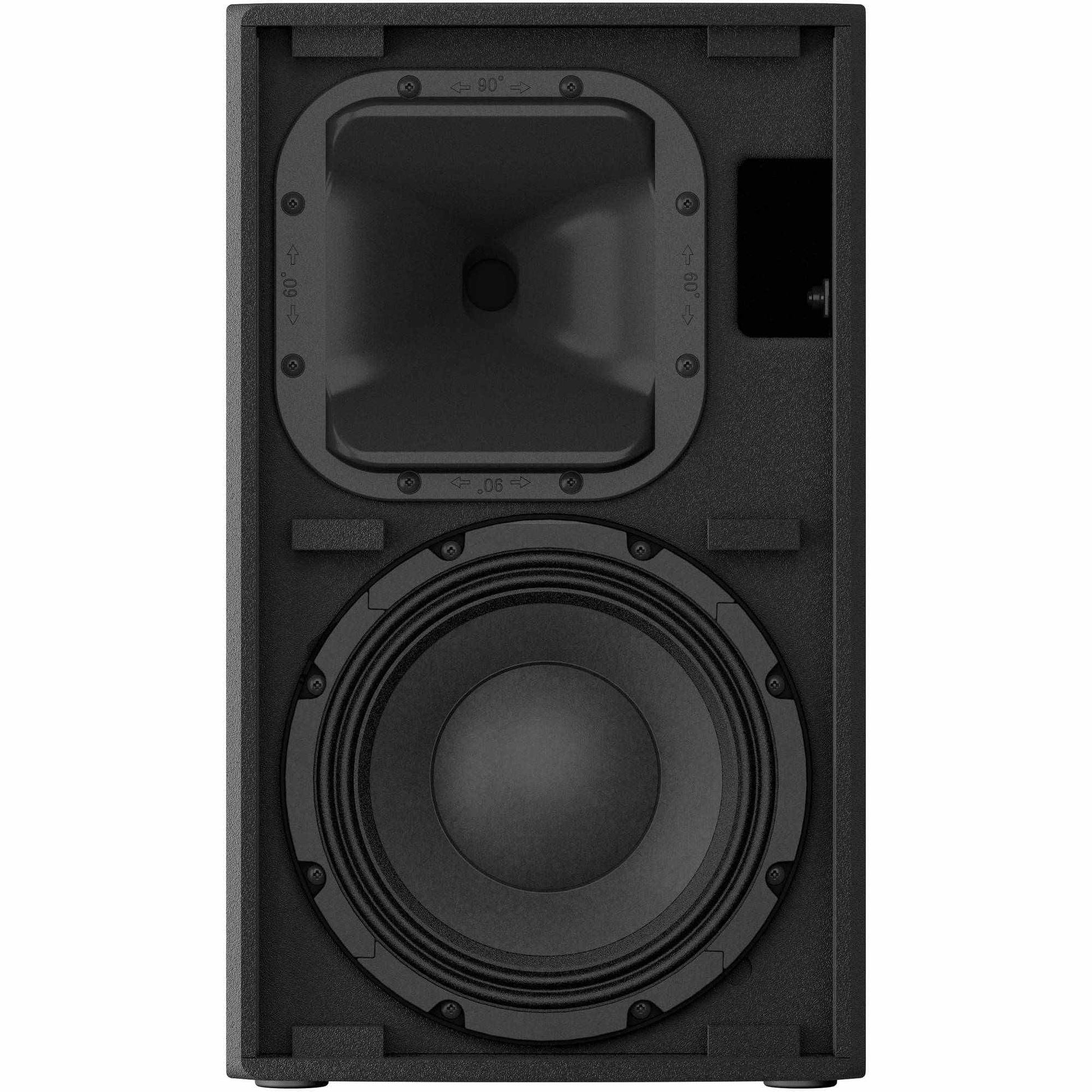

Drivers

Low Frequency (LF)

1x 10" / 25.4 cm Woofer, 3" / 76.2 mm Voice Coil, Neodymium Magnet

High Frequency (HF)

1x Titanium Compression Driver, 1" / 25.4 mm Throat, 2" / 50.8 mm Voice Coil, Neodymium Magnet

Performance

Frequency Range/Response

44 Hz to 20 kHz (-10 dB)

Maximum SPL

137 dB

Coverage Angle

90° H × 60° V (Rotatable Horn), 60° H × 90° V (Monitor)

Crossover Frequency

1800 Hz

Signal Processing

EQ & Filters

No

Digital Signal Processing

No

Alignment Delay

No

Connectivity

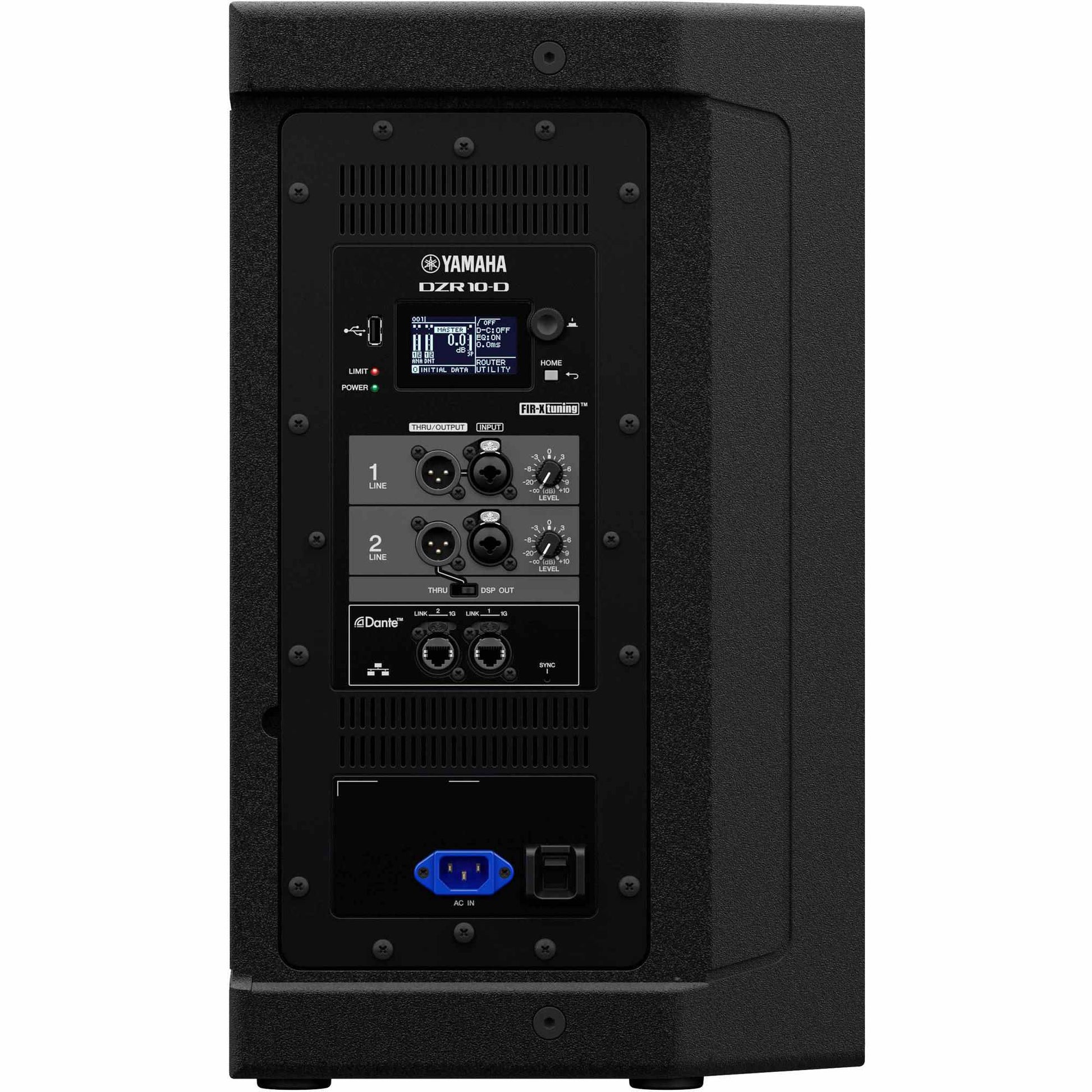

Audio I/O

2x Combo XLR-1/4" TRS Input, 2x XLR 3-Pin Output

Network I/O

2x etherCON/RJ45 (Dante)

USB I/O

1x USB-A (External Memory / Host Connection)

Wireless / App

No

Power

AC Input Power

100–240 VAC, 50 / 60 Hz

AC Power I/O

1x IEC Input (Locking)

Power Consumption

45 W (Idle), 150 W (1/8 Power)

Physical

Color

Black

Mounting / Fly Points

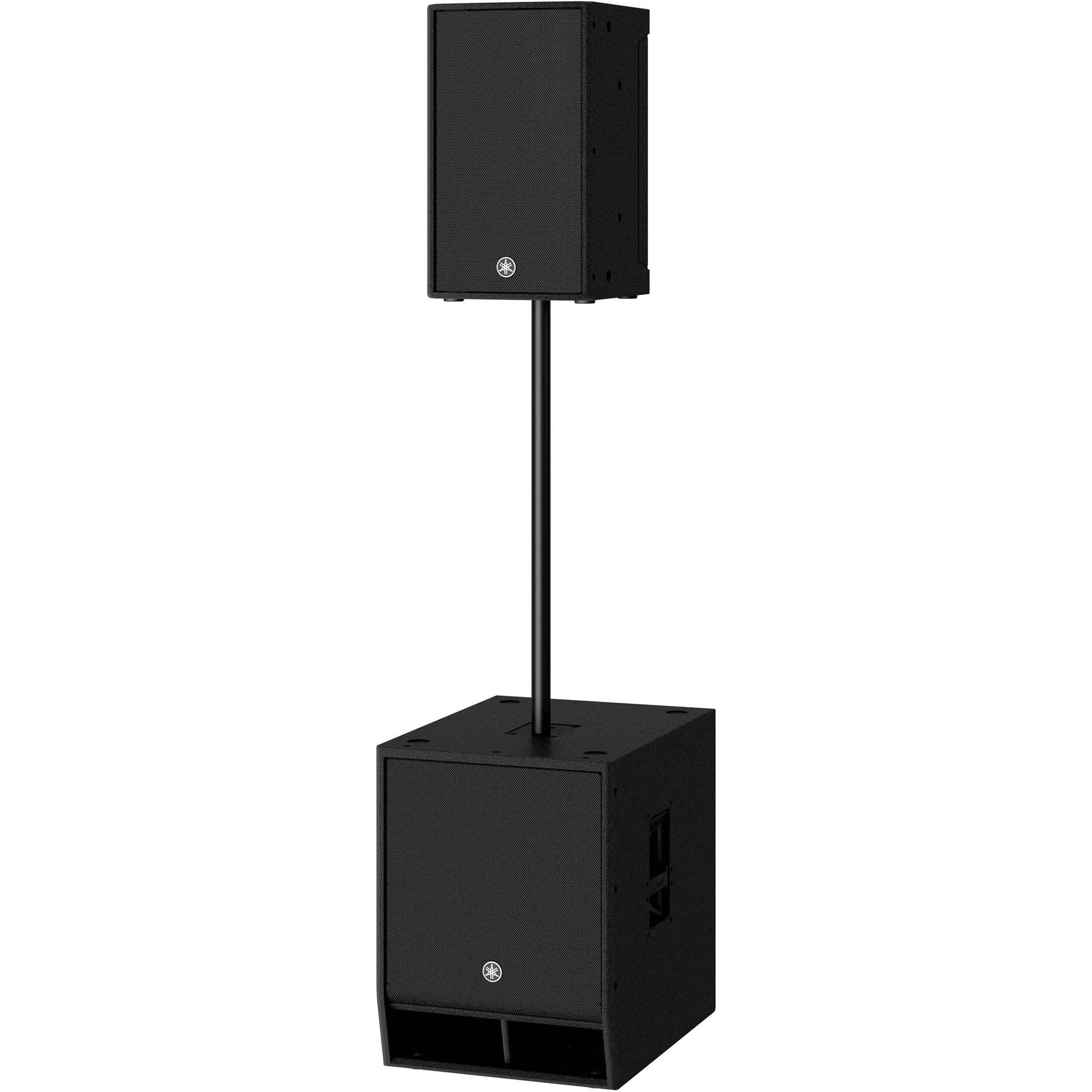

2 x 1.38" / 35 mm Dual-Angle Pole Socket (Bottom), 8 x M10 Fly Point, 2 x M8 Fly Point

Handles

1x Each Side

Construction Material

Plywood

Environmental Resistance

No

Dimensions (H × W × D)

12.4 × 21.1 × 13.6" / 315 × 536 × 346 mm

Weight

39.5 lb / 17.9 kg

Packaging

Package Weight

47 lb

Box Dimensions

26.5 × 16.88 × 16.25"
