Key Specifications

Speaker Type

Active Loudspeaker

Configuration

2-Way

Total Output Power

950 W RMS / 2000 W Peak

Amplifier Class

Class-D

Drivers

LF Driver

1 × 15" / 38 cm Woofer, Voice Coil: 3" / 76.2 mm, Magnet: Neodymium

HF Driver

1 × Rotatable-Horn Titanium Compression Driver, Throat: 1" / 25.4 mm, Voice Coil: 2" / 50.8 mm, Magnet: Neodymium

Performance

Frequency Range/Response

34 Hz to 20 kHz (-10 dB)

Maximum SPL

139 dB

Coverage Angle

90° H × 50° V (Rotatable Horn), 50° H × 90° V (Monitor)

Signal Processing

Crossover Frequency

1700 Hz

EQ & Filters

No

Digital Signal Processing

No

Connectivity

Audio I/O

2 × Combo XLR-1/4" TRS Input
2 × XLR 3-Pin Output

Network I/O

No

USB I/O

1 × USB-A (External Memory / Host Connection)

Wireless

No

Mobile App Compatible

No

Power

AC Input Power

100–240 VAC, 50 / 60 Hz

AC Power I/O

1 × IEC Input (Locking)

Power Consumption

45 W (Idle), 150 W (1/8 Power)

Physical

Color

Black

Mounting

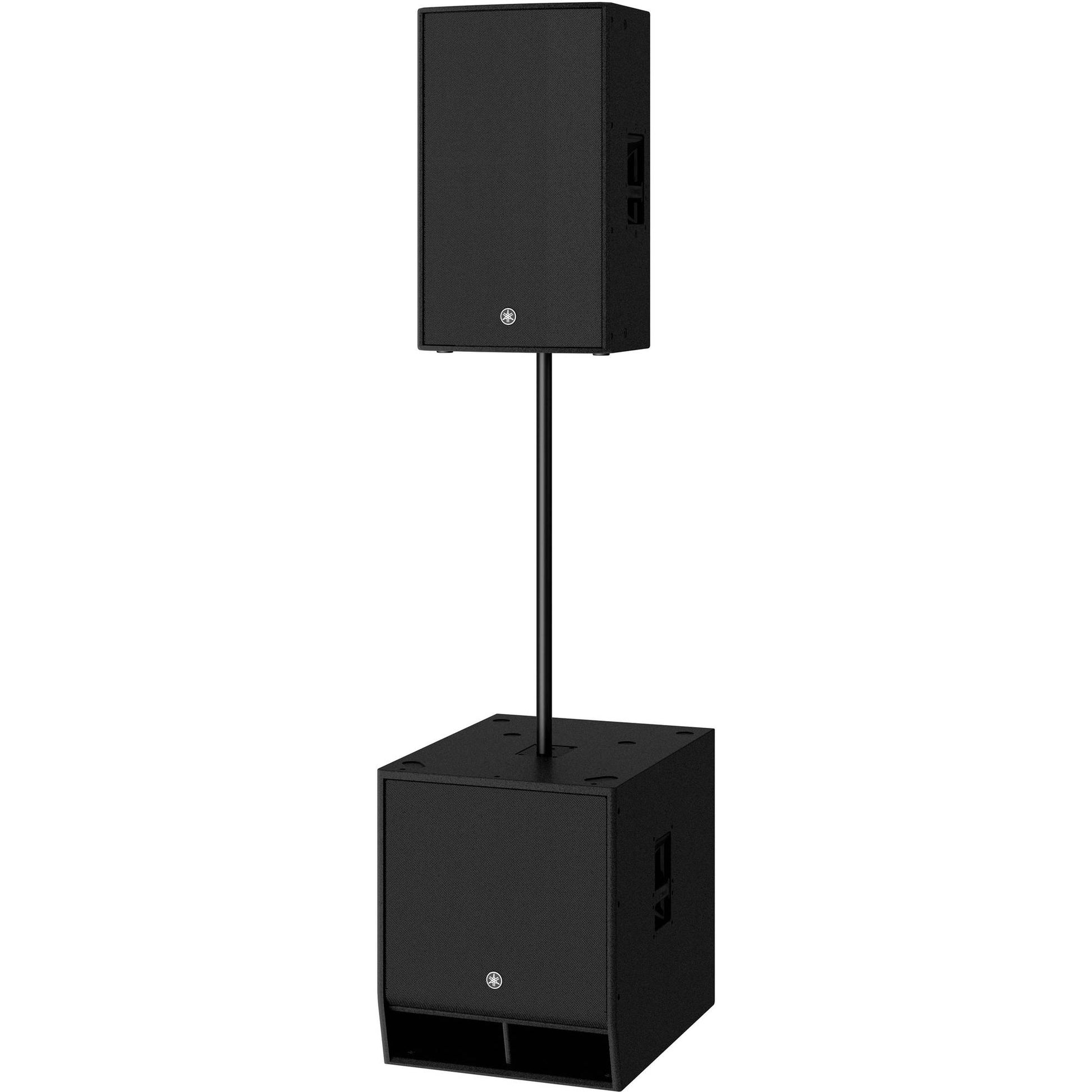

Stand Mount, 2 × 1.38" / 35 mm Dual-Angle Pole Socket (Bottom)

Suspension Points

12 × M10 Fly Point

Handles

1 × Each Side

Construction Material

Plywood

Environmental Resistance

No

Dimensions

17.7 × 30 × 18.1" / 450 × 761 × 460 mm

Weight

55.6 lb / 25.2 kg

Packaging Info

Package Weight

69 lb

Box Dimensions (L × W × H)

35 × 22 × 21.75"
