Key Specifications

Speaker Type

Active Loudspeaker

Configuration

2-Way

Total Output Power

950 W RMS / 2000 W Peak

Enclosure Type

Bass-Reflex

Drivers

Low Frequency (LF)

1× 15" / 38 cm Woofer, 3" Voice Coil, Neodymium Magnet

High Frequency (HF)

1× Rotatable-Horn Titanium Compression Driver, 1" Throat, 2" Voice Coil, Neodymium Magnet

Performance

Frequency Range/Response

34 Hz to 20 kHz (-10 dB)

Maximum SPL

139 dB

Coverage Angle

90° H × 50° V (Rotatable Horn)

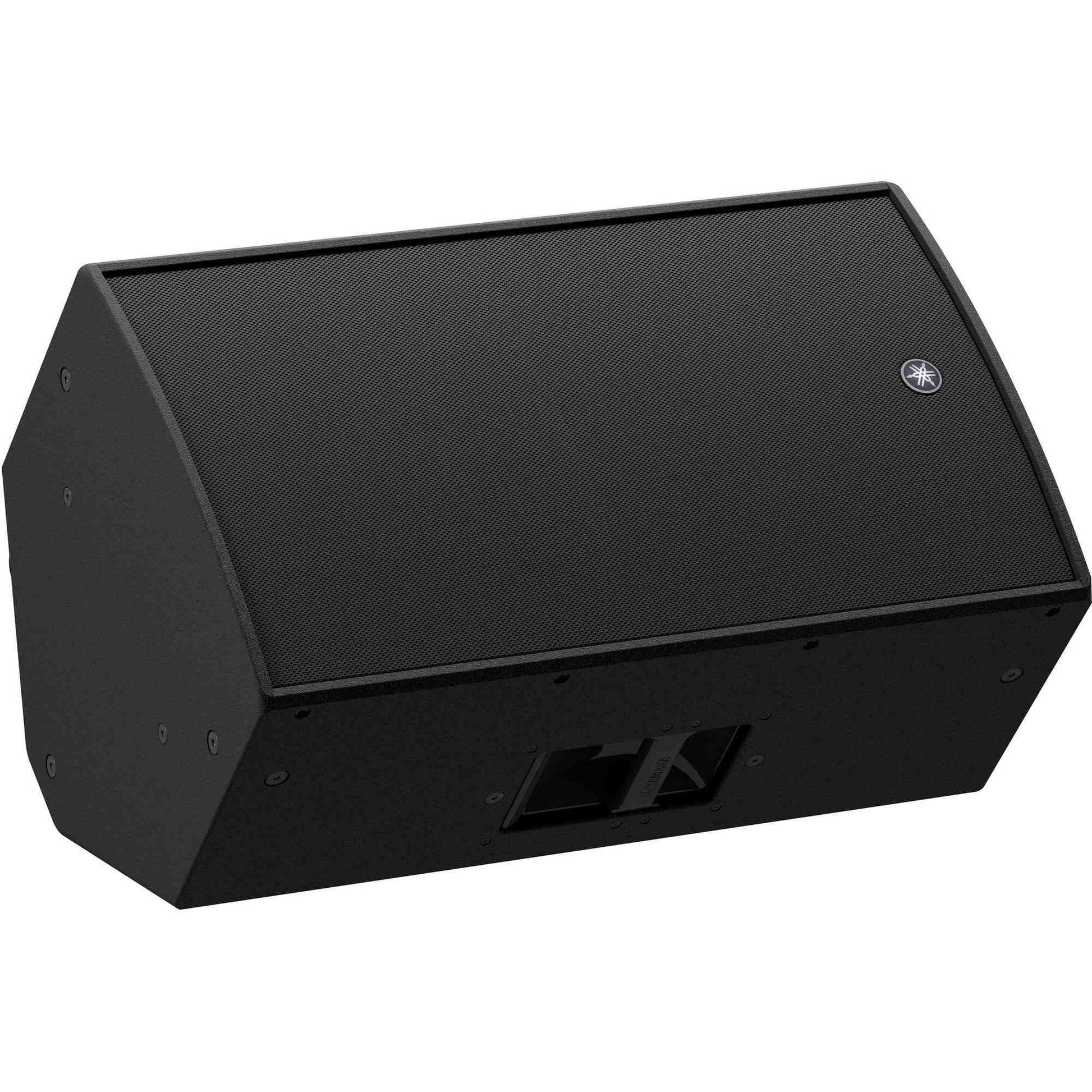

50° H × 90° V (Monitor)

Crossover Frequency

1700 Hz

Signal Processing

EQ & Filters

No

Digital Signal Processing

No

Alignment Delay

No

Connectivity

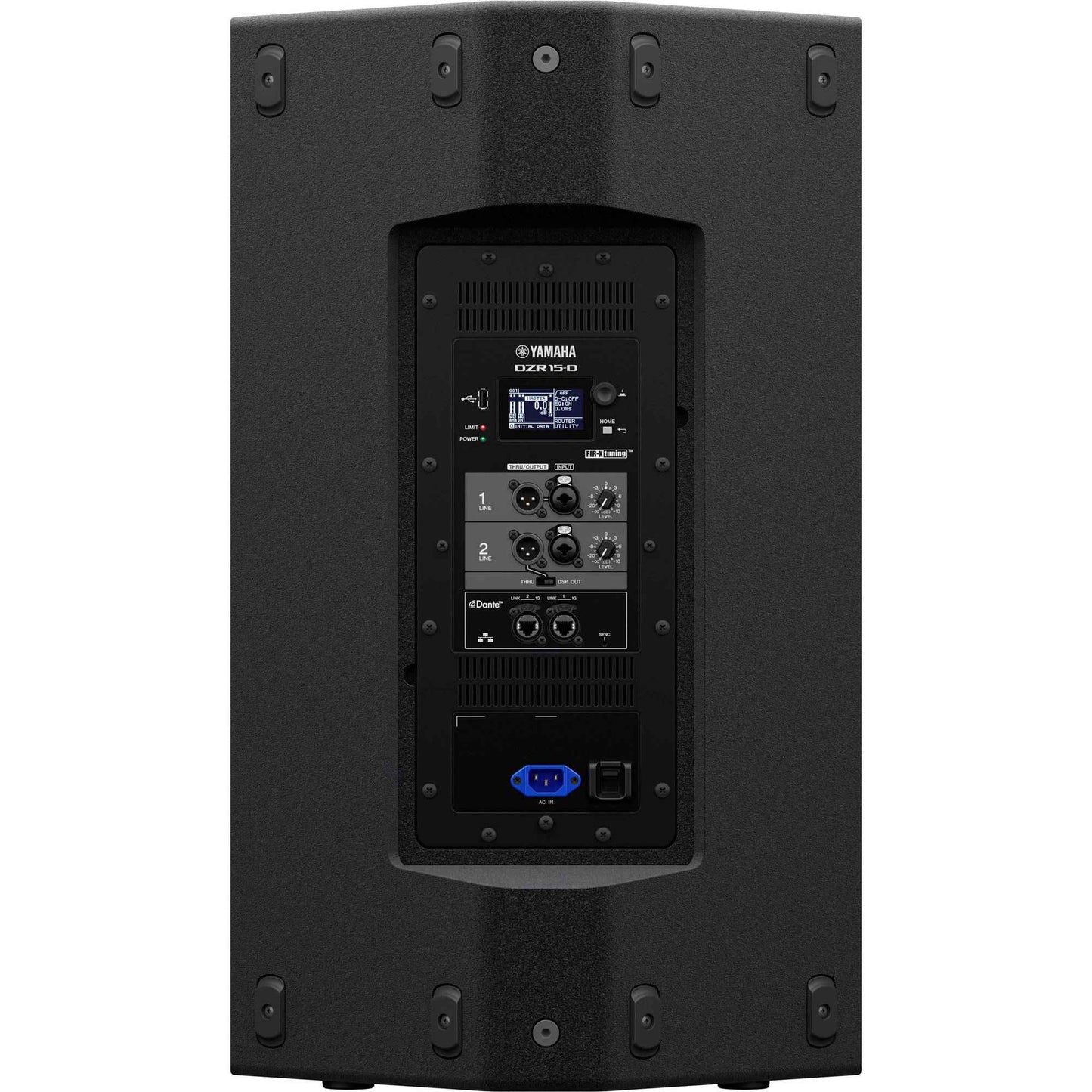

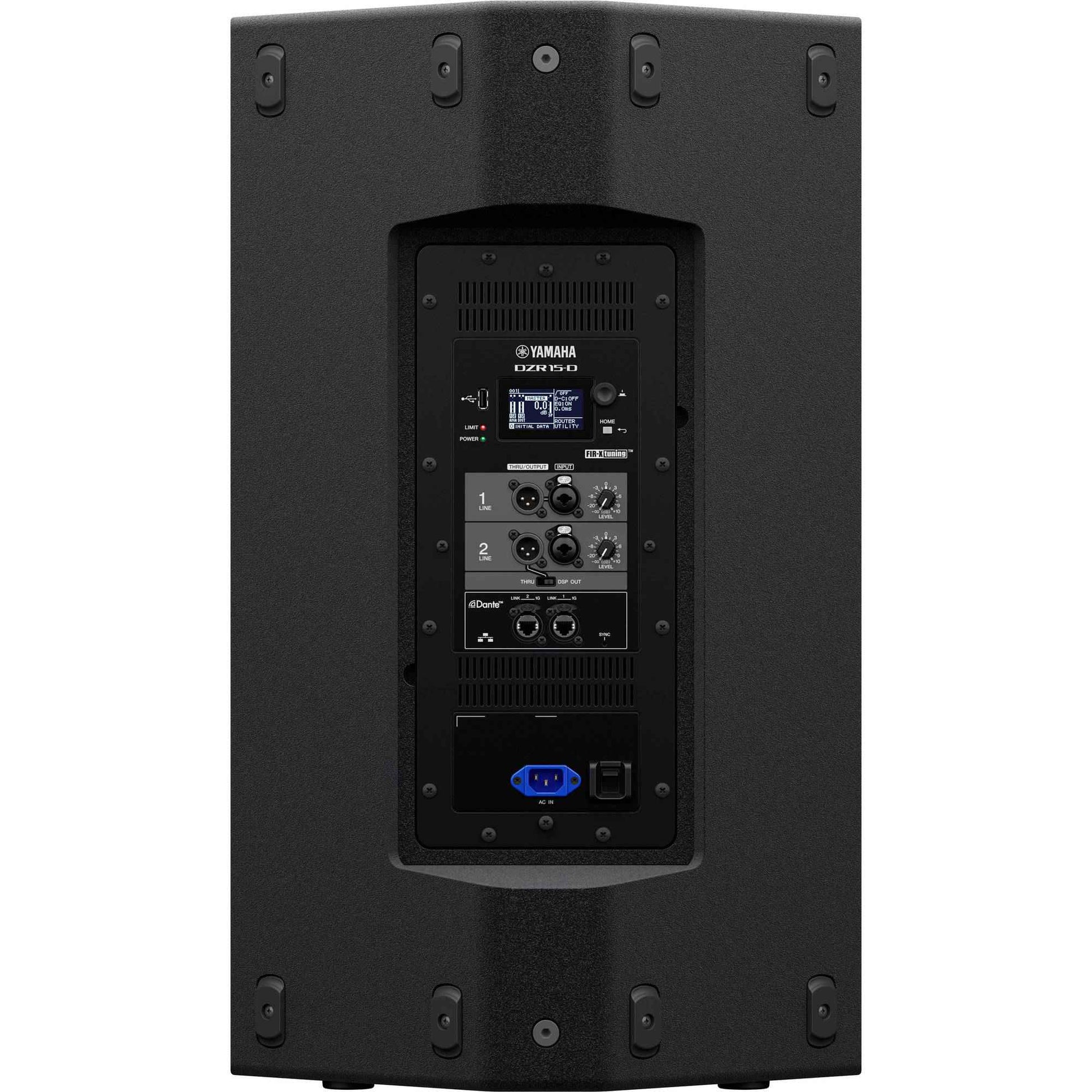

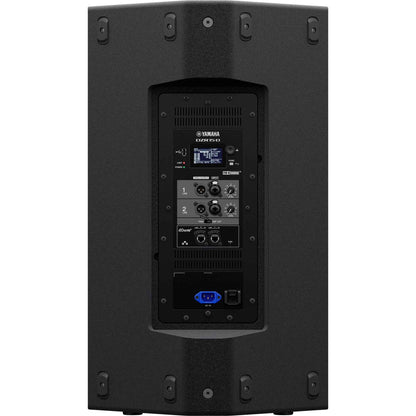

Audio I/O

2× Combo XLR-1/4" TRS Input
2× XLR 3-Pin Output

Network I/O

2× etherCON/RJ45 (Dante)

USB I/O

1× USB-A (External Memory / Host)

Wireless / App

No

Power

AC Input Power

100–240 VAC, 50/60 Hz

AC Power I/O

1× IEC Input (Locking)

Power Consumption

45 W (Idle), 150 W (1/8 Power)

Physical

Color

Black

Mounting

2× 1.38" / 35 mm Dual-Angle Pole Socket (Bottom)

Suspension Points

12× M10 Fly Point

Handles

1× Each Side

Construction Material

Plywood

Environmental Resistance

No

Dimensions (H × W × D)

17.7 × 30 × 18.1" / 450 × 761 × 460 mm

Weight

55.6 lb / 25.2 kg

Packaging

Package Weight

69 lb

Box Dimensions

35.5 × 21.75 × 21.63"
