Key Specifications

Speaker Type

Active Loudspeaker

Configuration

3-Way

Total Output Power

950 W RMS / 2000 W Peak

Enclosure Type

Bass-Reflex

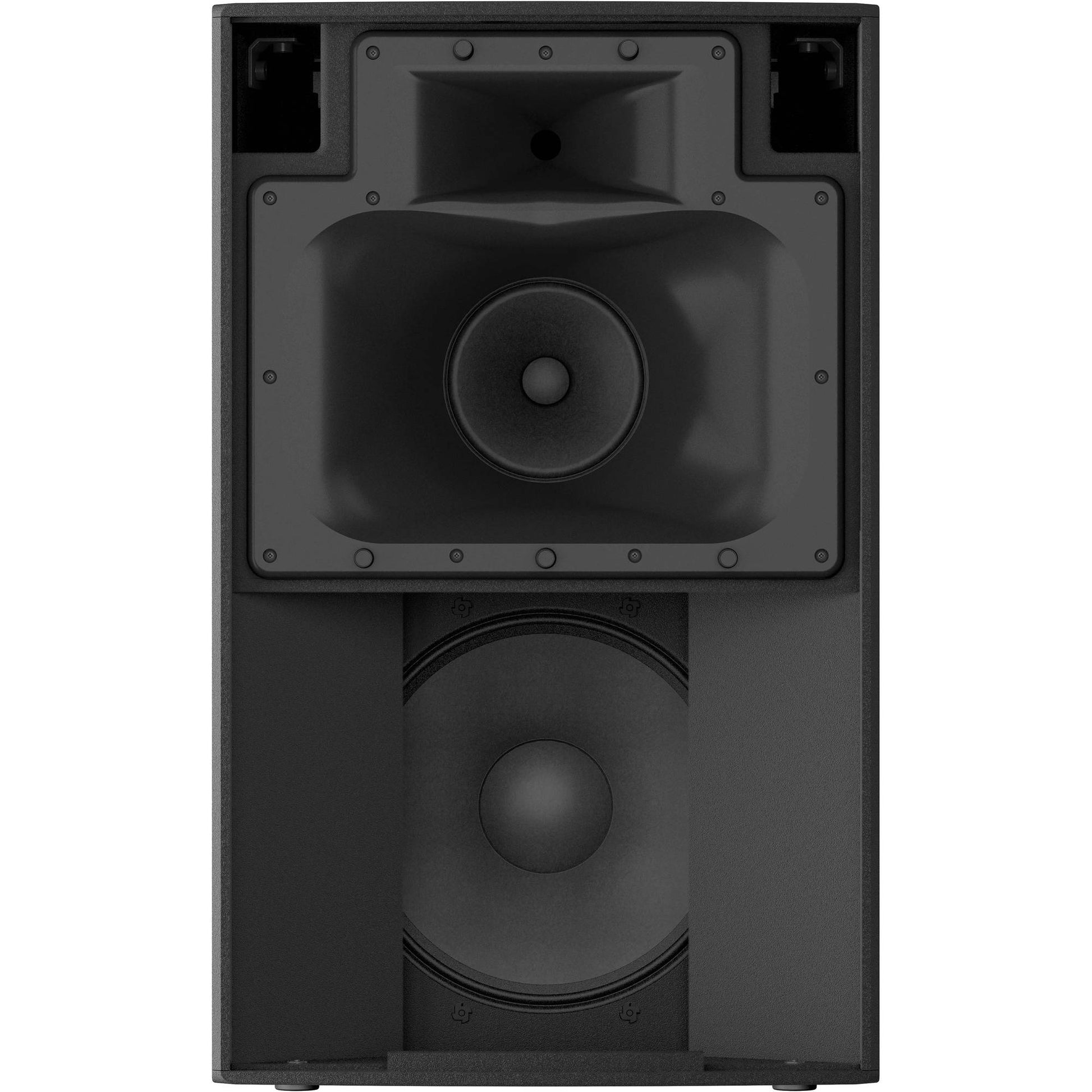

Drivers

Low Frequency (LF)

1x 15" / 38 cm Woofer, 3" / 76.2 mm Voice Coil, Neodymium Magnet

Mid Frequency (MF)

1x 8" / 20.3 cm Cone, 1.5" / 38.1 mm Voice Coil, Ferrite Magnet

High Frequency (HF)

1x Titanium Compression Driver, 1" / 25.4 mm Throat, 2" / 50.8 mm Voice Coil, Neodymium Magnet

Performance

Frequency Range/Response

31 Hz to 20 kHz (-10 dB)

Maximum SPL

143 dB

Coverage Angle

75° H × 50° V

Crossover Frequencies

700 / 2500 Hz

Signal Processing

EQ & Filters

No

Digital Signal Processing

No

Alignment Delay

No

Connectivity

Audio I/O

2x Combo XLR-1/4" TRS Input, 2x XLR 3-Pin Output

Network I/O

No

USB I/O

1x USB-A (External Memory / Host Connection)

Wireless / App

No

Power

AC Input Power

100–240 VAC, 50 / 60 Hz

AC Power I/O

1x IEC Input (Locking)

Power Consumption

45 W (Idle), 150 W (1/8 Power)

Physical

Color

Black

Mounting / Fly Points

16 x M10 Fly Point

Handles

1x Each Side

Construction Material

Plywood

Environmental Resistance

No

Dimensions (H × W × D)

21.7 × 35.3 × 20.5" / 550 × 897 × 520 mm

Weight

91.7 lb / 41.6 kg

Packaging

Package Weight

116 lb

Box Dimensions

40 × 26 × 25"
