Key Specifications

Product / Accessory Type

Large Diaphragm Studio Condenser Microphone

Microphone Element & Polar Pattern

Condenser (1" / 25.4 mm Diaphragm), Supercardioid

Sound Field & Orientation

Mono, Side Address

Circuitry Type

Solid-State

On-Board Controls & Switches

Low Cut / HPF Switch, Pad Switch

Performance & Electrical Specifications

Frequency Response

20 Hz to 18 kHz

Maximum Sound Pressure Level (SPL)

136 dB SPL

Equivalent Noise Level

9.5 dB A-Weighted

Attenuation Pad

-10 dB

Low-Cut / High-Pass Filter

100 Hz (6 dB/Octave)

Power Requirements

48 V Phantom Power

Connectivity & Mounting Specifications

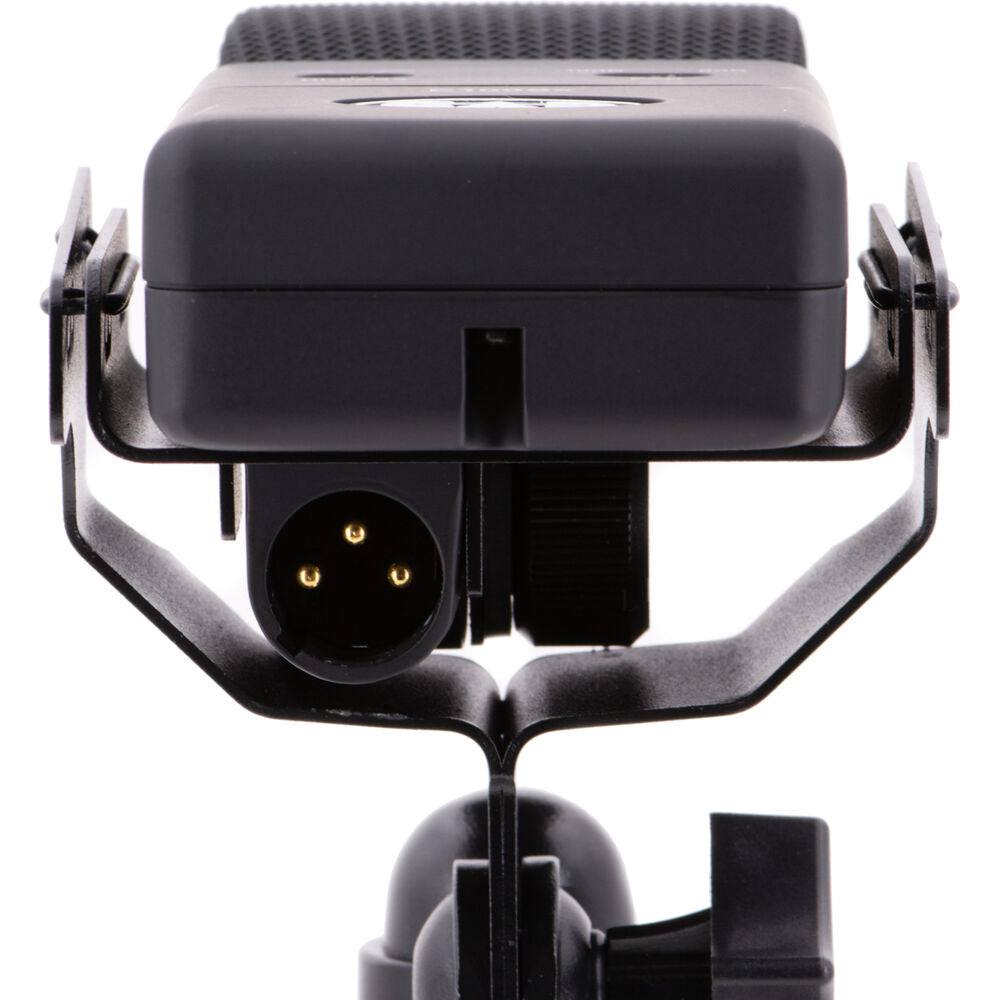

Analog Output Connector

1x XLR 3-Pin Male

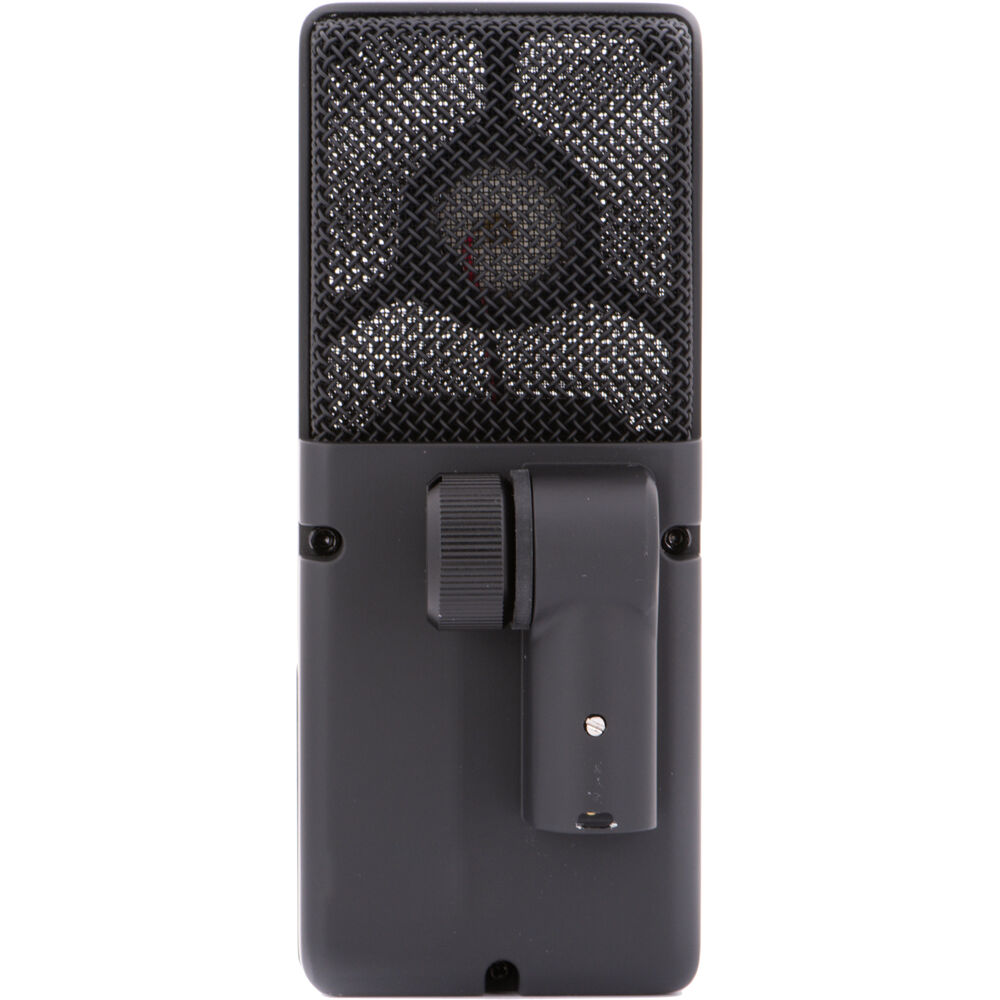

Mounting Thread Size

5/8"-27 Female Thread

Dimensions & Physical Specifications

Microphone Dimensions with Mount (H×W×L)

154 mm x 73.7 mm x 138.1 mm (6.10" x 2.90" x 5.44")

Box Dimensions (L×W×H)

193.04 mm x 132.08 mm x 121.92 mm (7.60" x 5.20" x 4.80")

Net Weight

0.90 kg (1.98 lbs)

Package Weight

0.93 kg (2.05 lbs)
