Key Specifications

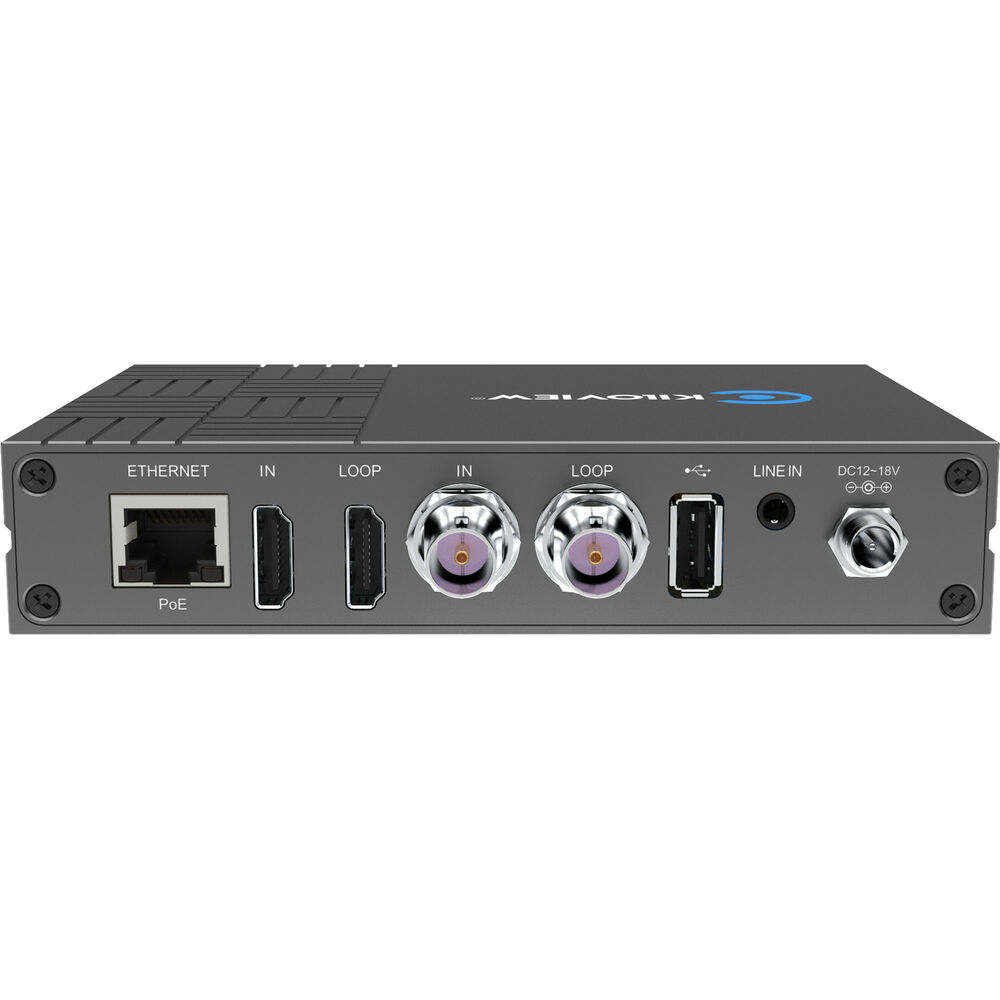

Inputs/Outputs

Video Inputs

1x BNC (3G-SDI)
1x HDMI (1.4b) Female

Audio Inputs

1x 1/8" / 3.5 mm TRS Female

Video Outputs

1x BNC (3G-SDI) (Loop Output)
1x HDMI (1.4b) Female (Loop Output)

Audio Outputs

No

Other I/O

2x USB-C 2.0
1x USB-A 2.0
1x RJ45 LAN, PoE

Expansion Slots

No

Format Support

Input Video Format (HDMI)

UHD 4K at 30 fps
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 29.97/30/50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps

Input Video Format (SDI)

1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 25/29.97/30/50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps

Embedded Audio

SDI Input: 8-Channel
HDMI Input: 4-Channel

Standards

SMPTE 259M/292M/424M

HDR Support

No

IP Streaming

Video IP Encoding

H.264, H.265, HLS, NDI|HX2, NDI|HX3, RTMP, RTMPS, RTP, RTSP, SRT, TS, UDP

Audio IP Encoding

AAC, G.711, MPEG-2, MPEG-4, Opus

Hardware

Display Size

1.14"

Tally Light

Yes

Wireless

No

Power

Power I/O

1x Barrel Input

PoE Support

Yes: PoE 802.3af

Power Consumption

Power Supply: 12 to 18 VDC at 1 A (5 W)

Environmental

Operating Temperature

12 to 77°F / -20 to 45°C

Storage Temperature

-40 to 122°F / -40 to 50°C

General

Dimensions

5.5 x 3.9 x 1.1" / 140 x 100 x 28 mm

Packaging Info

Package Weight

1.7 lb

Box Dimensions (LxWxH)

7.4 x 6.1 x 3.8"
