Key Specifications

Image Sensor

1/2.8"-Type CMOS

Effective Sensor Resolution

2.07 Megapixel

Max Optical Zoom

30×

Max Digital Zoom

16×

Max Video Output

via HDMI / RJ45 / SDI/BNC:
Up to 1080p
via USB:
Up to 1080p

Max Recording Modes

No

Broadcast Output

NTSC/PAL

Supported Protocols

Camera Control:
FreeD/IP/IR/ONVIF/Pelco-D/Pelco-P/RS-232/RS-485/UVC/VISCA
Video Streaming:
HTTP/RTMP/RTMPS/SRT

IP Streaming

H.264/H.265/MJPEG:
640 × 480 to 1920 × 1080 at 10p, 15p, 20p, 25p, 30p, 50p, 60p (Main Stream: 64.00 to 40,000 Kb/s)
320 × 180 to 1280 × 720 at 10p, 15p, 20p, 25p, 30p, 50p, 60p (Sub Stream: 64.00 to 40,000 Kb/s)

Wireless

No

PoE Support

Yes: PoE+ 802.3at

Mounting

1 × 1/4"-20 Female for Bracket/Ceiling/Tripod/Wall

Imaging

Image Sensor

1/2.8"-Type CMOS

Sensor Resolution

2.07 Megapixel

Focus Control

Autofocus
Manual Focus

Exposure Control

Signal-to-Noise Ratio

50 dB

Minimum Illumination

0.5 Lux at f/1.8 Aperture

Flip / Mirror Support

Image Flip

White Balance

Presets: Auto, Manual, One-touch
Range: 2400 to 7100K

Lens

Focal Length

5.2 to 148.4 mm

Max Optical Zoom

30×

Max Digital Zoom

16×

Field of View

Horizontal: 58.1 to 2.14°
Vertical: 33.8 to 1.2°
Diagonal: 65.4 to 2.48°

Video Capture

Video Output

via HDMI / RJ45 / SDI/BNC:
1920 × 1080p
1920 × 1080p at 25/29.97/30.00/50/59.94/60.00 fps
1920 × 1080i at 50/59.94/60.00 fps
1280 × 720 at 50/59.94/60.00 fps
via USB:
1920 × 1080p
1920 × 1080p at 10/15/20/25/30.00/50/60.00 fps
1280 × 720 at 10/15/20/25/30.00/50/60.00 fps
800 × 600 at 10/15/20/25/30.00/50/60.00 fps
1024 × 576p at 10/15/20/25/30.00/50/60.00 fps
640 × 480p at 10/15/20/25/30.00/50/60.00 fps
800 × 448 at 10/15/20/25/30.00/50/60.00 fps
480 × 270p at 10/15/20/25/30.00/50/60.00 fps
320 × 180p at 10/15/20/25/30.00/50/60.00 fps

Embedded Audio

HDMI/IP/LAN (RJ45)/SDI/USB

Internal Recording

No

Audio Recording

Yes

Broadcast Output

NTSC/PAL

Supported Protocols

Camera Control:
FreeD/IP/IR/ONVIF/Pelco-D/Pelco-P/RS-232/RS-485/UVC/VISCA
Video Streaming:
HTTP/RTMP/RTMPS/SRT

IP Streaming

H.264/H.265/MJPEG:
640 × 480 to 1920 × 1080 at 10p, 15p, 20p, 25p, 30p, 50p, 60p (Main Stream: 64.00 to 40,000 Kb/s)
320 × 180 to 1280 × 720 at 10p, 15p, 20p, 25p, 30p, 50p, 60p (Sub Stream: 64.00 to 40,000 Kb/s)

Control

Presets

255 via IP, RS-232, RS-485, UVC, VISCA, Pelco-P, Pelco-D
10 via IR

Pan/Tilt

Pan: 340° (-170 to 170°) at 0.1 to 100°/s
Tilt: 120° (-90 to 30°) at 0.1 to 45°/s

Networking

Wireless

No

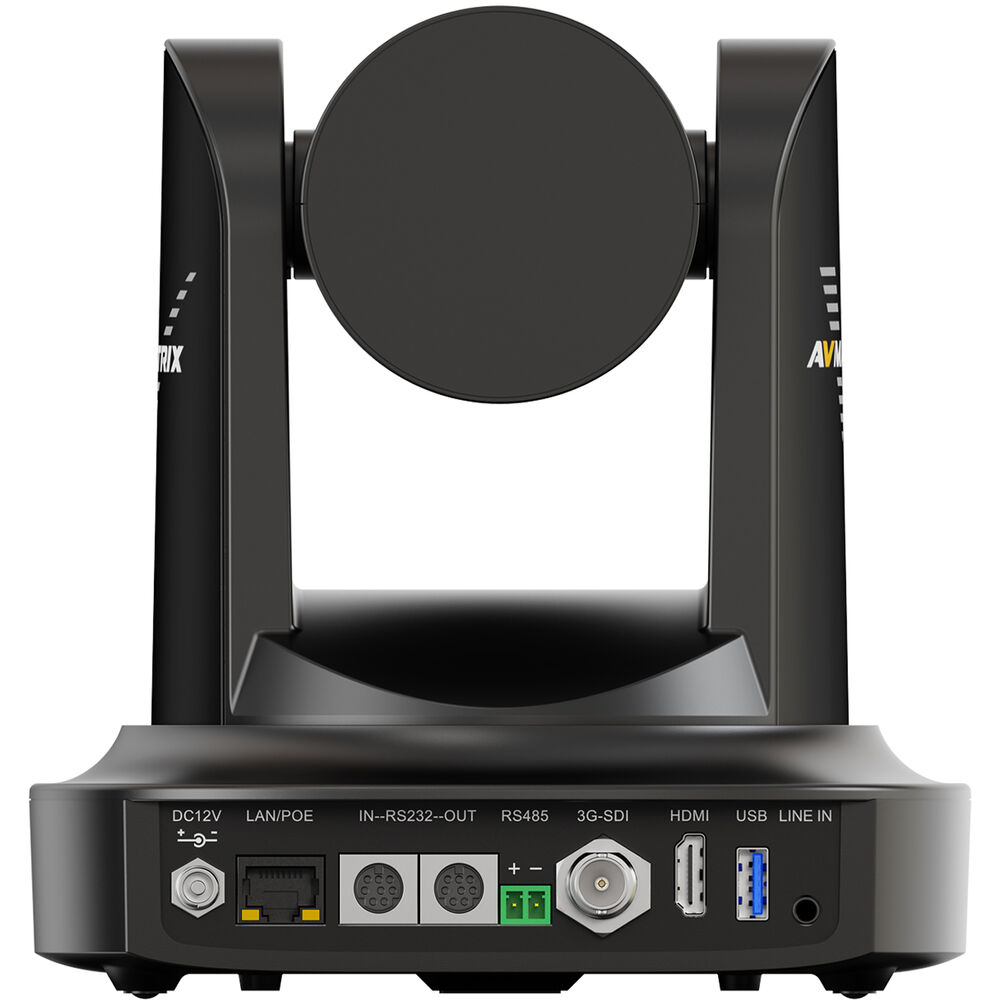

Interface

Video I/O

1 × HDMI Output
1 × BNC (3G-SDI) Output
1 × USB-A 2.0 Output
1 × RJ45 LAN Input/Output

Audio I/O

1 × 1/8" / 3.5 mm TRS Stereo Line Input

Other I/O

1 × DIN 8-Pin (RS-232) Control Input
1 × DIN 8-Pin (RS-232) Control Output
1 × Block 2-Pin (RS-485) Control Input/Output

Built-In Microphone

No

Power

PoE Support

Yes: PoE+ 802.3at

Power I/O

1 × Barrel (12VDC at 1.2 A) Input

Power Consumption

Device: 13.8 W

Environmental

Operating Conditions

14 to 122°F / -10 to 50°C at 20 to 80% Humidity

Storage Conditions

14 to 158°F / -10 to 70°C at 20 to 95% Humidity

Impact Resistance

No

Environmental Resistance

No

General

Mounting

1 × 1/4"-20 Female for Bracket/Ceiling/Tripod/Wall

Dimensions (W × H × D)

7.1 × 6.7 × 6.7" / 180 × 170 × 170 mm

Weight

3 lb / 1.26 kg (Body Only)
