Edgemax EM90 In-Ceiling Loudspeaker
Edgemax EM90 In-Ceiling Loudspeaker
BOSE
UNIT: EACH
Product Code: SKU:BOSE-EDGEMXEM90-CHN-363
Key Features

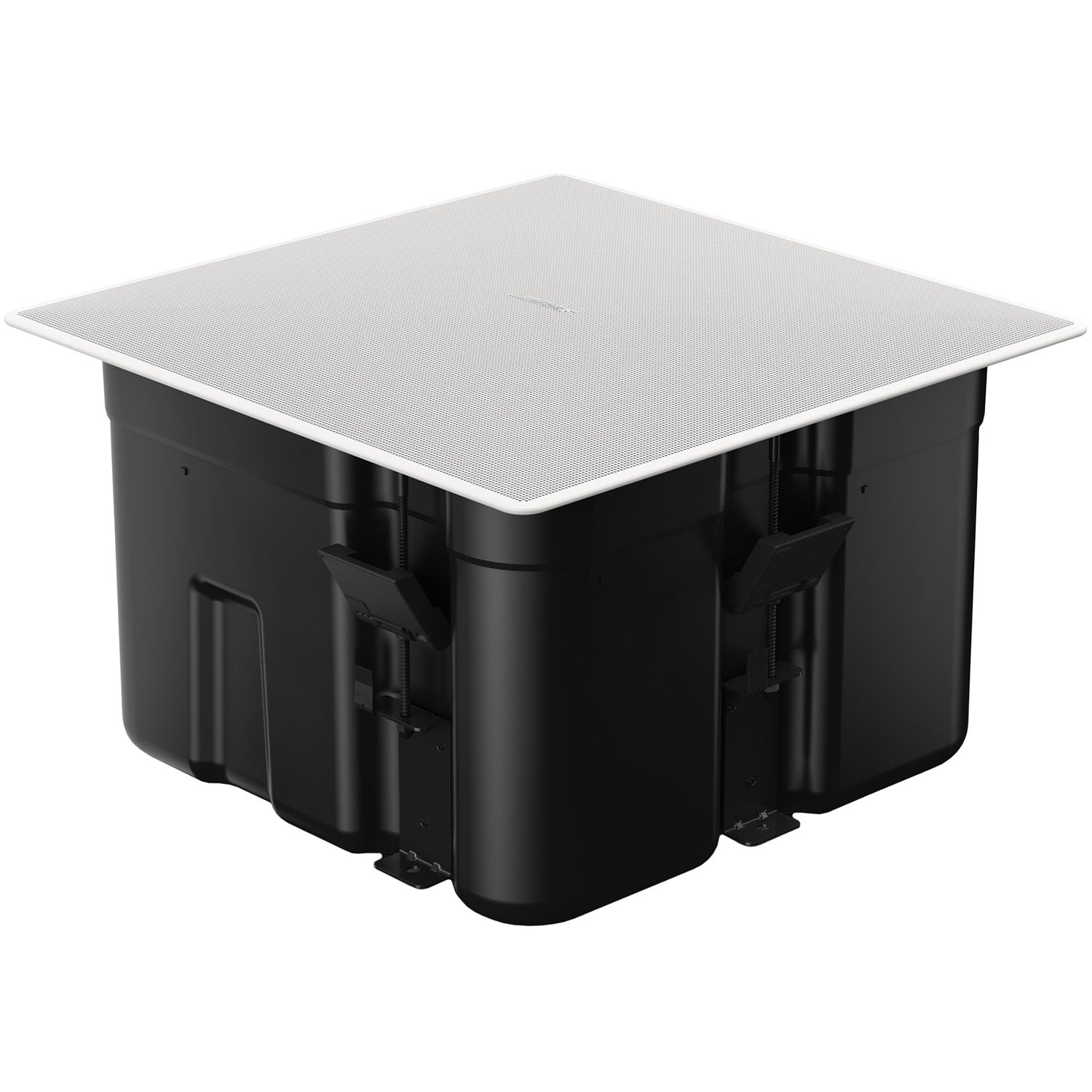

BOSE Edgemax EM90 In-Ceiling Loudspeaker
BOSE Edgemax EM90 In-Ceiling Loudspeaker
|
Key Specifications |
|
|
Compliance |
|
|
Safety Agency Ratings |
UL1480A, UL2043 |
|
Physical |
|
|
Colors |
White (similar to RAL 9003), paintable |
|
Enclosure Material |
Engineered-plastics front baffle with integrated steel-formed enclosure |
|
Environmental |
Indoor only; UL1480A listed, in compliance with UL2043 for plenum-space installation |
|
Grille |
Microperforated steel, powder-coated finish, paintable |
|
Ceiling Cutout |
13.6 x 13.6 x 9.3" / 345 x 345 x 236 mm (L x W x Mounting Depth) |
|
Suspension/Mounting |

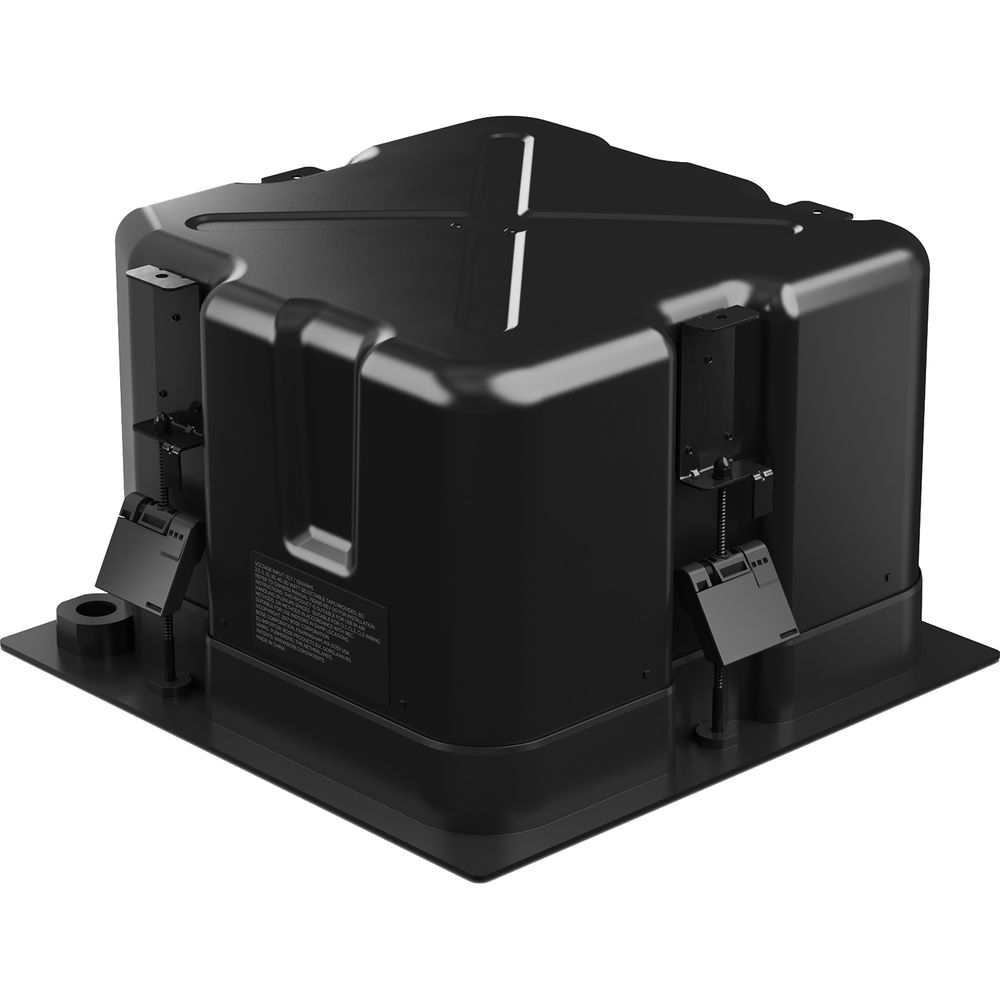

(4) QuickHold spring-loaded mounting arms, (4) M6 safety cable attachment points |
|
Product Dimensions (H×W×D) |
13.4 x 13.4 x 9.8" / 339 x 339 x 249 mm (backcan) |
|
Net Weight |
22.2 lb / 10.1 kg (loudspeaker with grille) |
|
Shipping Weight |
29.0 lb / 12.5 kg |
|
Performance |
|
|
Frequency Range (-10 dB) |
45 Hz – 20,000 Hz |
|
Coverage (Horizontal) |
90° |
|
Coverage (Vertical) |
75° |
|
Calculated Maximum SPL @ 1 m |
117 dB continuous, 123 dB peak |
|
Nominal Impedance |
8 Ω (transformer bypassed) |
|
Power Handling (Continuous) |
125 W |
|
Power Handling (Peak) |
500 W |
|
Sensitivity (SPL/1 W at 1 m) |
96 dB |
|
Transformer Taps (100V) |
5 / 10 / 20 / 40 / 80 W, bypass |
|
Transformer Taps (70V) |
2.5 / 5 / 10 / 20 / 40 / 80 W, bypass |
|
Transducers |
|
|
Crossover |
1 kHz, passive 2-way crossover with integrated 70/100V transformer |
|
Driver Protection |
Recommended high-pass protection 55 Hz with minimum 12-dB/octave filter |
|

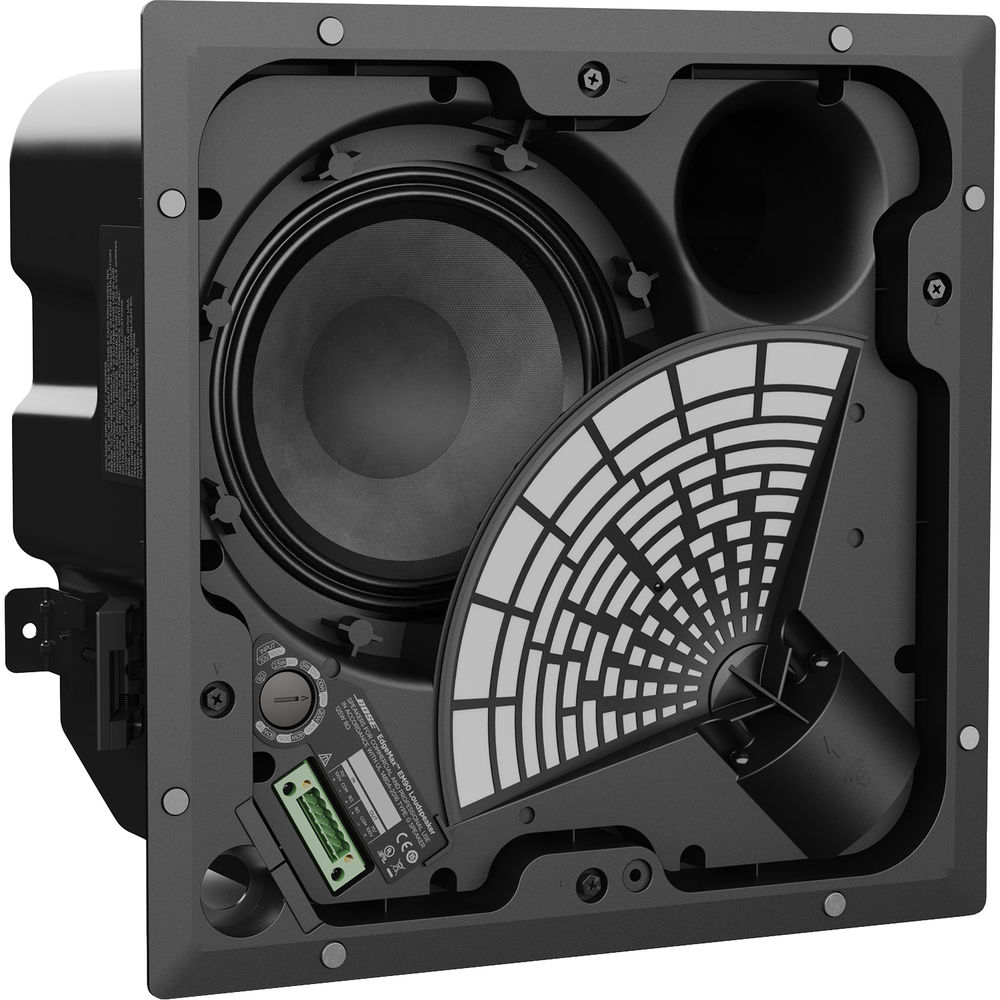

High-Frequency |
1 × compression driver, 1.3" / 33 mm voice coil |
|
Low-Frequency |
1 × 8" / 203 mm woofer, 1.5" / 38 mm voice coil |
|
Product Information |
|
|
Product Code |
778844-0220 (EdgeMax EM90) |
|
Included in Packaging |

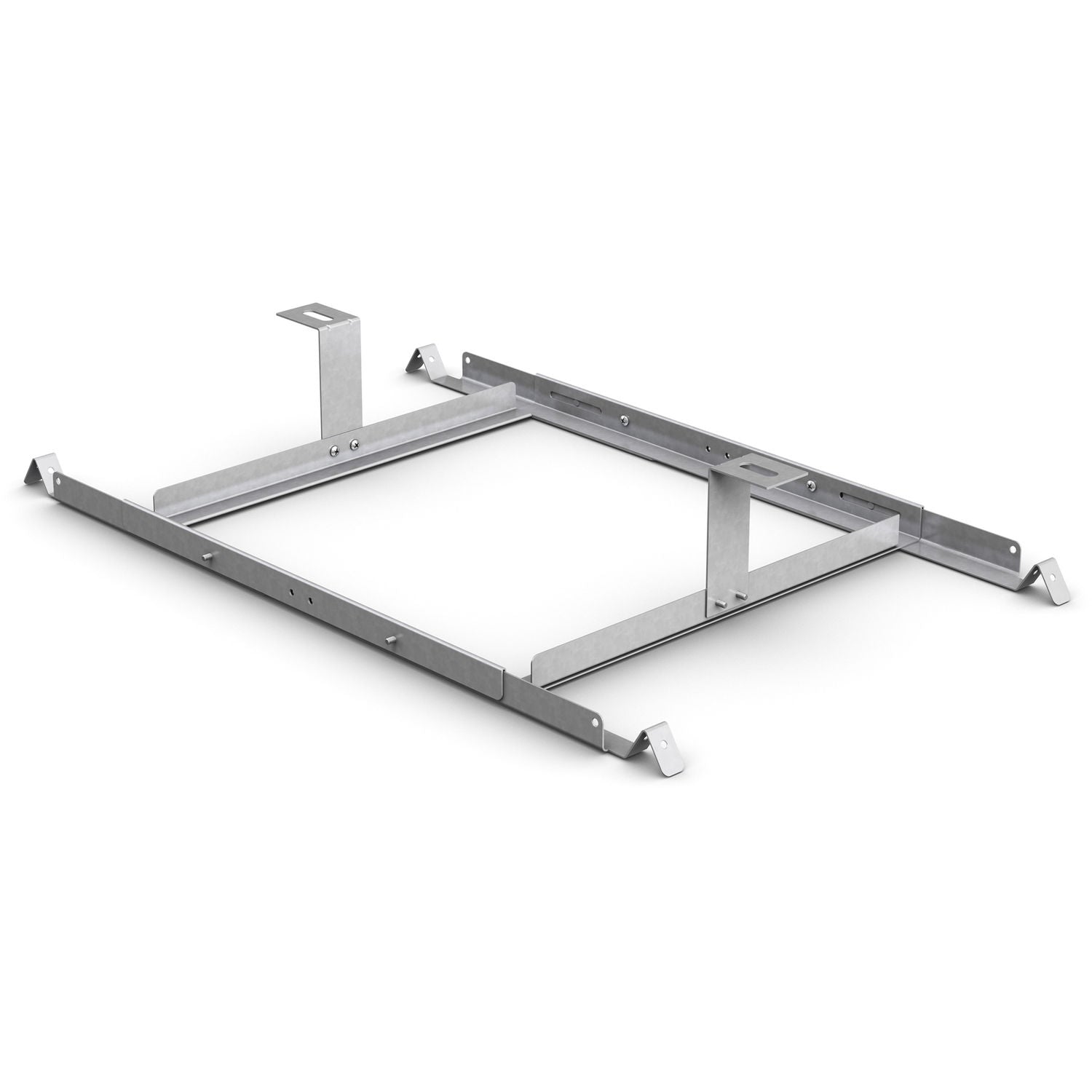

(1) Tile bridge |
