Key Specifications

Active/Passive

Passive

Number of Included Speakers

1

Speaker Configuration

2-Way

Power Handling

40 W RMS
160 W Peak

Constant Voltage / Transformer Taps

70 V: 32 / 16 / 8 / 4 W or 8 Ohms Bypass
100 V: 32 / 16 / 8 W or 8 Ohms Bypass

Impedance

8 Ohms

HF Driver

1x 1" / 25.4 mm Asymmetrical Horn Compression Driver

LF Driver

1x 5.25" / 133.35 mm

Frequency Range

45 Hz to 19 kHz (-10 dB)

Color

White

Speaker

Active/Passive

Passive

Number of Included Speakers

1

Speaker Configuration

2-Way

Power Handling

40 W RMS
160 W Peak

Constant Voltage / Transformer Taps

70 V: 32 / 16 / 8 / 4 W or 8 Ohms Bypass
100 V: 32 / 16 / 8 W or 8 Ohms Bypass

Impedance

8 Ohms

Drivers

HF Driver

1x 1" / 25.4 mm Asymmetrical Horn Compression Driver

HF Voice Coil

1.3" / 33.02 mm

LF Driver

1x 5.25" / 133.35 mm

LF Voice Coil

1.5" / 38.1 mm

Performance

Frequency Range

45 Hz to 19 kHz (-10 dB)

Frequency Response

50 Hz to 18 kHz (±3 dB)

Maximum SPL

111 dB SPL (Continuous)
117 dB SPL (Peak)

Sensitivity

91 dB SPL

Coverage Angle

90° H x 80° V

Crossover

1 kHz

Recommended High-Pass Filter

55 Hz, 24 dB/Octave

Connectivity

Inputs/Outputs

1x Block 6-Pin Speaker Input (Locking)

Physical

Certifications

UL

Color

White

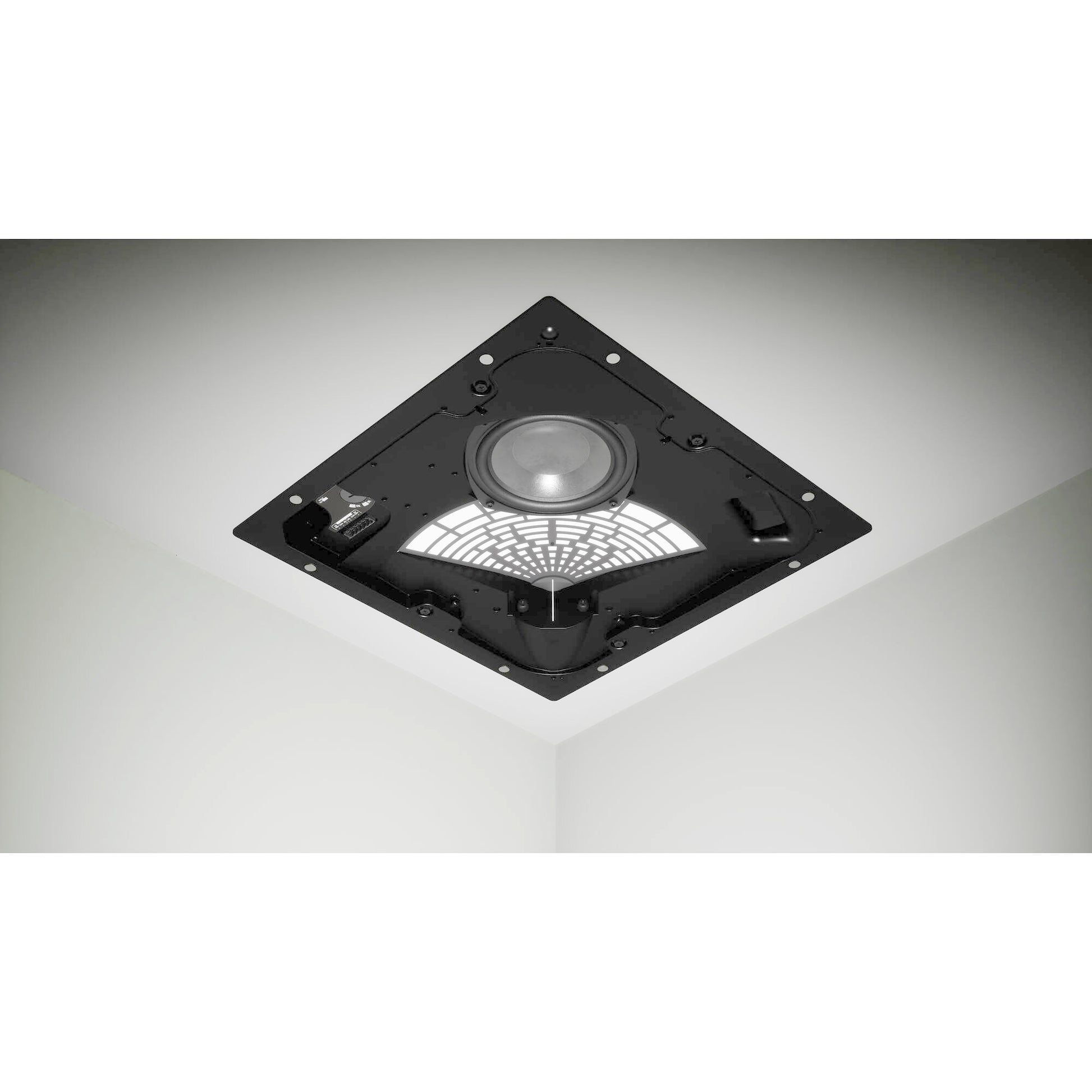

Mounting

1x Ceiling Tile

Cutout Depth

3.9" / 99.1 mm

Cutout Size

13.4 x 13.4" / 340.4 x 340.4 mm

Dimensions

15.4 x 15.4 x 3.9" / 391.2 x 391.2 x 99.1 mm

Weight

16.6 lb / 7.5 kg (with Grille)

Packaging Info

Package Weight

24.885 lb

Box Dimensions (LxWxH)

19.2 x 18.9 x 7.4"
