Key Specifications

Display

LCD Panel

0.74" Wide Panel with MLA (C2 Fine, 12-Bit, OD)

Native Resolution

1080p

Projection Lens

Lens Type

Power Zoom, Power Focus

Focal Length

22.5 – 46.7 mm

F-Number

F2.0 – F3.0

Zoom Ratio

1 – 2.1x

Throw Ratio

1.35 – 2.84

Lamp

Lamp Type

250 W UHE

Lamp Life

High: 3,500 Hours
Medium: 4,000 Hours
Eco: 5,000 Hours

White Light Output

2,600 lm (Normal)
640 lm (Eco)

Color Light Output

2,600 lm

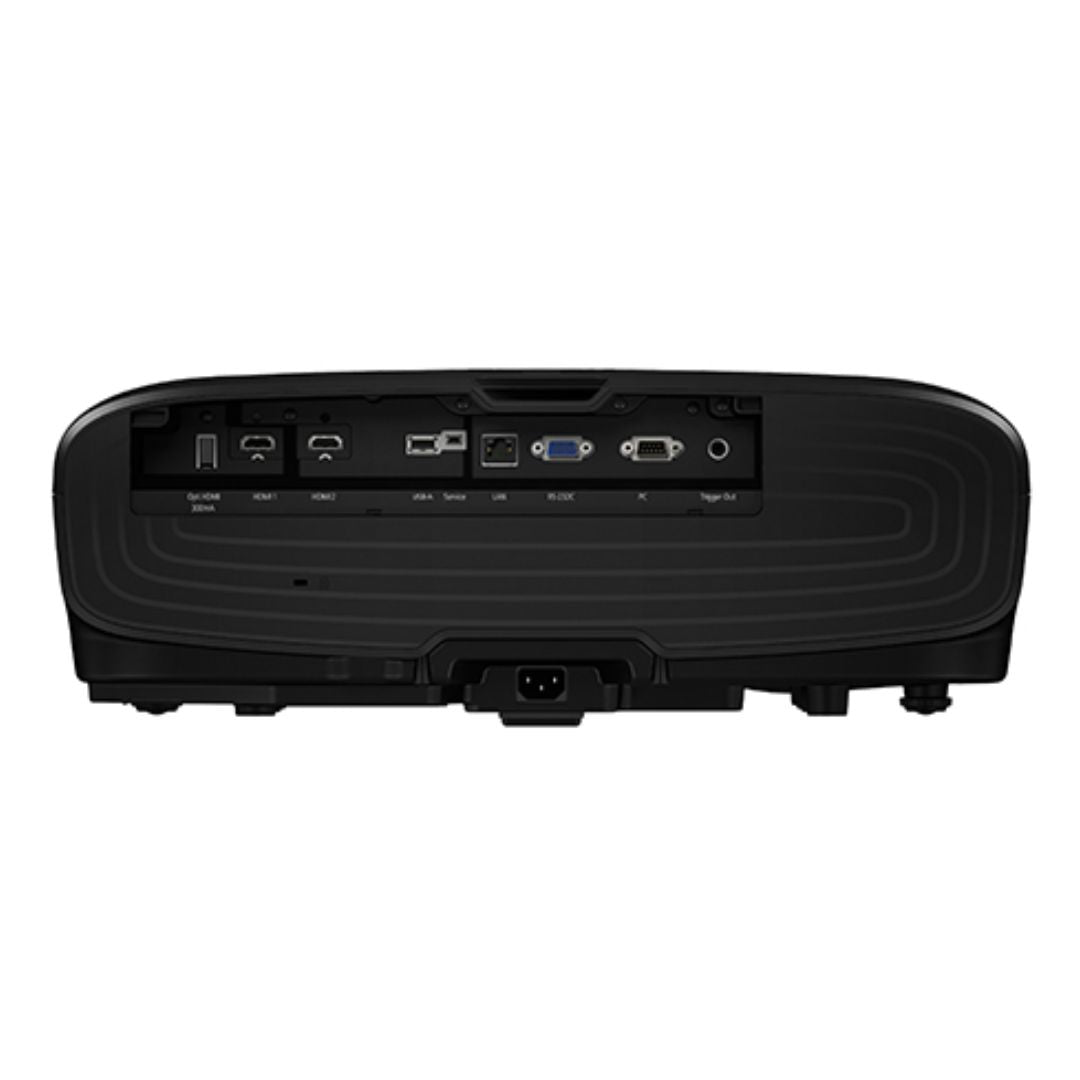

Connectivity

USB Type-A

2 × USB Type-A
Left: Optional HDMI Cable with 300 mA Power Supply
Right: Wireless LAN, Firmware Update, Copy OSD Settings

USB Type-B

1 × USB Mini-B (Service and Firmware Update)

Wireless LAN

Optional (ELPAP10)

Wired LAN

1 × RJ45

Analog Input

1 × D-Sub 15-Pin (Blue)

HDMI Inputs

2 × HDMI

RS-232C

1 × D-Sub 9-Pin

Trigger Output

1 × 3.5 mm Mini Jack (12V)

Performance

Contrast Ratio

1,200,000:1

Screen Size

50" – 300"

Projection Distance (Wide)

1.48 – 9.08 m

Projection Distance (Tele)

3.13 – 18.99 m

Projection Distance (100" Screen)

3.00 – 6.30 m

Image Adjustment

Vertical Keystone

±30°

Aspect Modes

Auto, Normal, Full, Zoom, Anamorphic Wide, Horizontal Squeeze

Frame Interpolation

Off, Low, Normal, High (2D & 3D)

Image Preset Modes

Off, Preset1, Preset2, Preset3, Preset4, Preset5

MPEG Noise Reduction

Yes

Super Resolution

Yes (Fine Line Adjust / Soft Focus Detail)

Detail Enhancement

Yes (Range / Strength)

Operation

Warm-Up Time

30 Seconds

Startup Time

19 Seconds

Operating Temperature

5 – 35°C (41 – 95°F) from 0–2286 m
5 – 30°C (41 – 86°F) above 2286 m
20% – 80% Humidity (Non-Condensing)

Operating Altitude

0 – 3048 m (0 – 10,000 ft)
High Altitude Mode above 1500 m (4,921 ft)

Physical Specifications

Dimensions (W × H × D)

520 × 170 × 450 mm

Weight

Approx. 11.2 kg
