The extreme AC demands encountered in the professional audio/video arena have required technological developments far in excess of typical home theater/audiophile power products. In studios, live sound, and broadcast facilities, breakdown is unacceptable. Equipment failure or poor performance is costly. The same is true of today's home theater. Our solution based technology, extensive engineering expertise, and robust build quality have answered the challenge of today's corrupted power lines, and led to the creation of the Elite-10 E i.
Today's power lines are plagued with RF and EMI noise. When connecting sensitive equipment to your home's power outlet, AC noise couples into your system's critical components. This noise masks low level signals and cripples performance. Low level content is critical because it relays the crucial harmonics and ambience in audio, as well as the depth and clarity in video. With Furman's exclusive Linear Filtering Technology, televisions, projectors, DVD players, amplifiers, and processors are fed linearly-filtered AC power. This dramatically reduces noise, ensuring consistent peak operation regardless of load conditions or the time of day. For the first time, you will see and hear your theater or audio system as it should be — uncompromised.

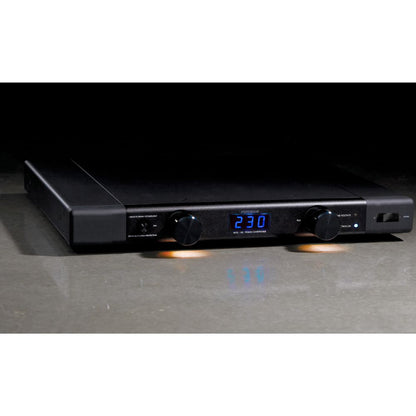

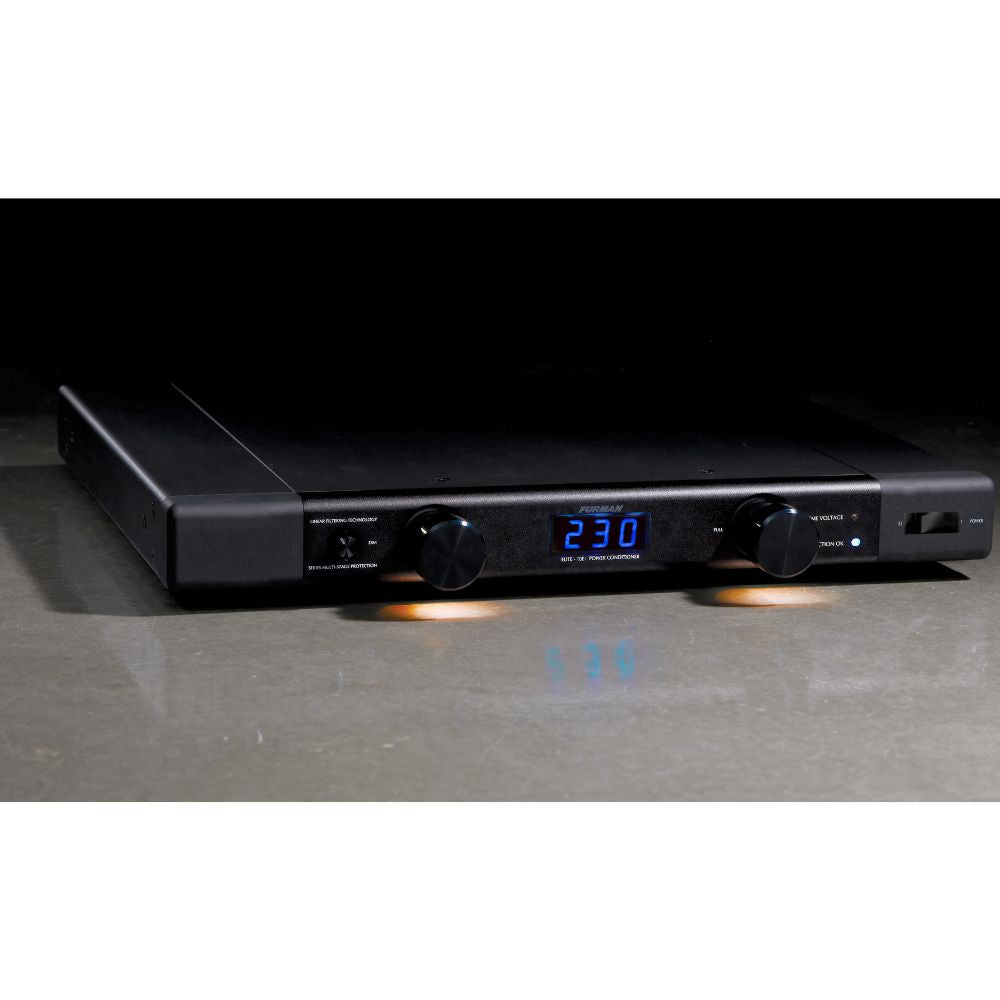

FURMAN ELITE-10 E I
Key Specifications
Current Rating
Input: 10 A capacity required Output: 10 A RMS (maximum, all outlets combined – continuous)
Linear Noise Attenuation
Transverse (Differential) Mode: > 40 dB from 10 kHz – 100 kHz > 80 dB from 2 kHz – 1 GHz (Linear attenuation curve from 0.05 – 100 Ω line impedance)
Outlets

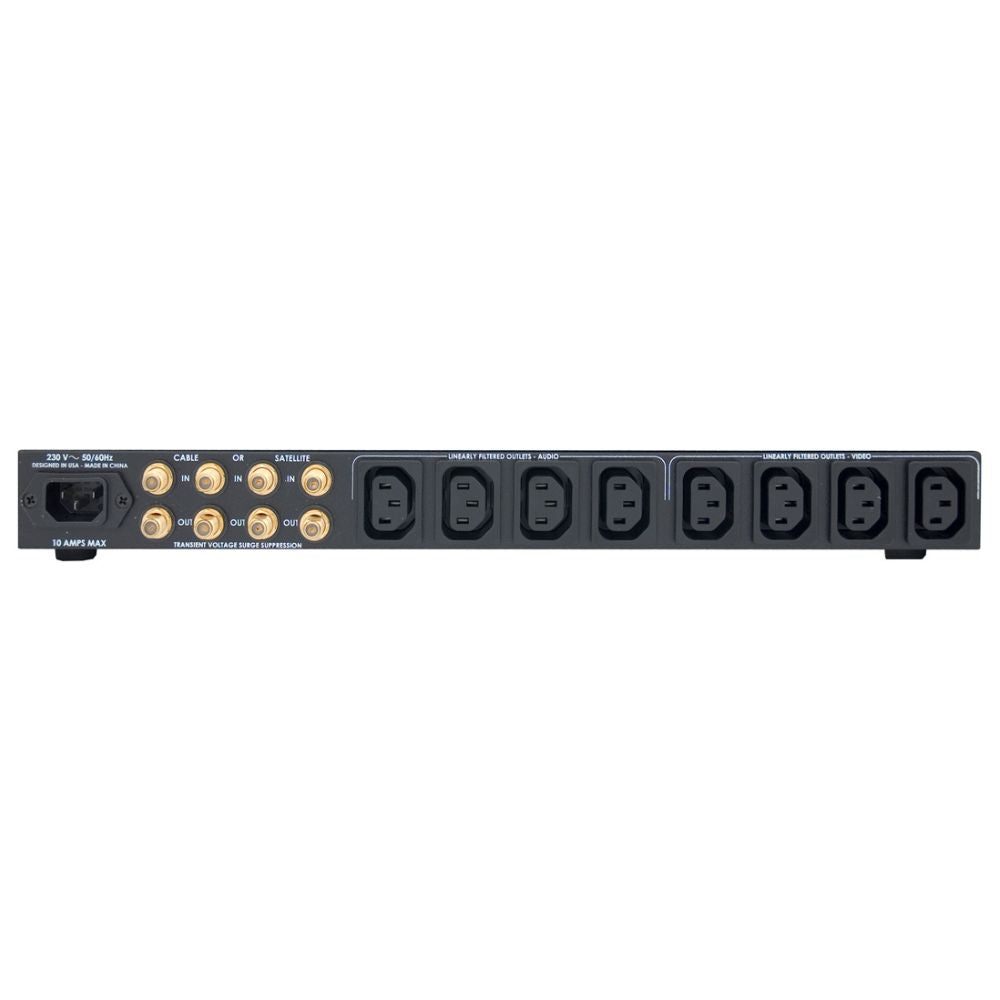

4 × linearly filtered outlets 4 × linearly filtered outlets with additional ultrasonic filtering for digital or video components
Transient Voltage Surge Suppression
230 VAC line: Series multi-stage protection, non-sacrificial with zero ground contamination, 266 V peak clamping @ 6000 V / 3000 A input
Cable / Satellite: < 0.1 dB insertion loss
Dimensions (H × W × D)
54.6 × 431.79 × 374.65 mm (Standard 1 RU height without feet)
Weight
5 kg
Power Consumption
6 W for display and control circuits, independent of actual load
