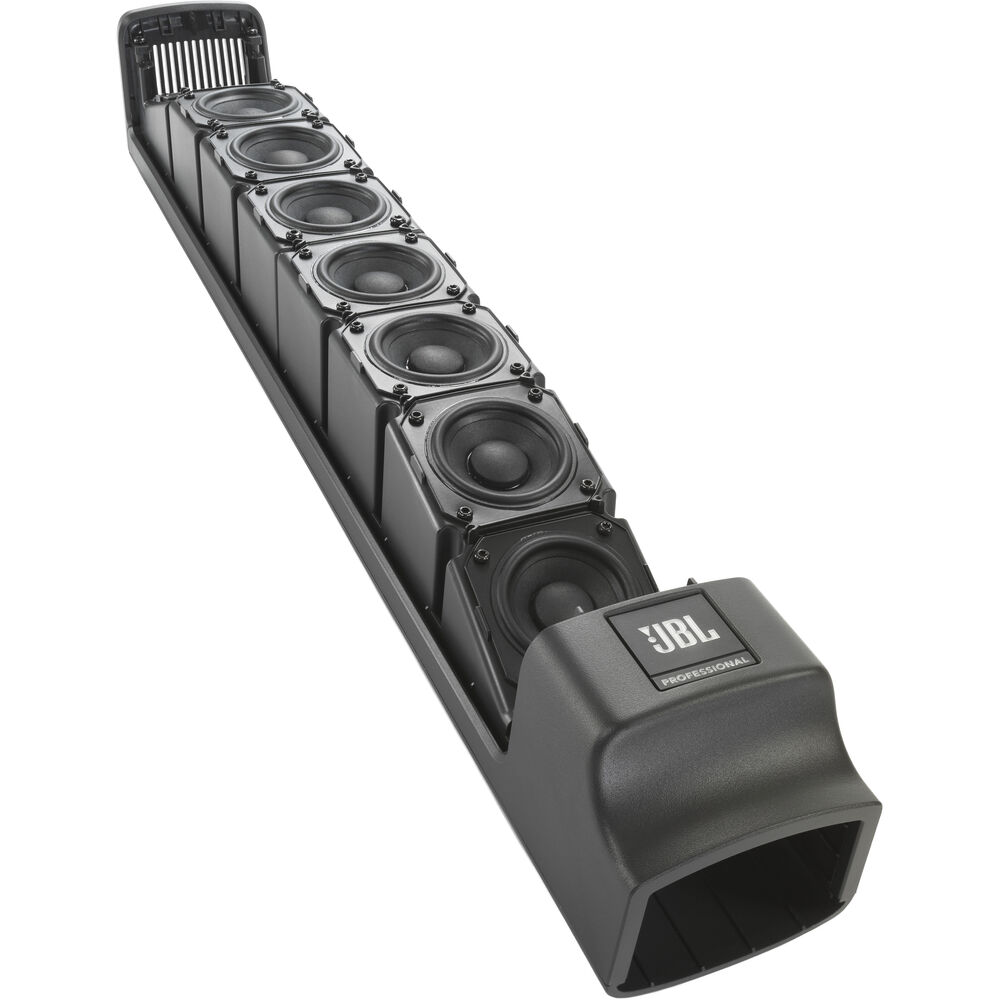

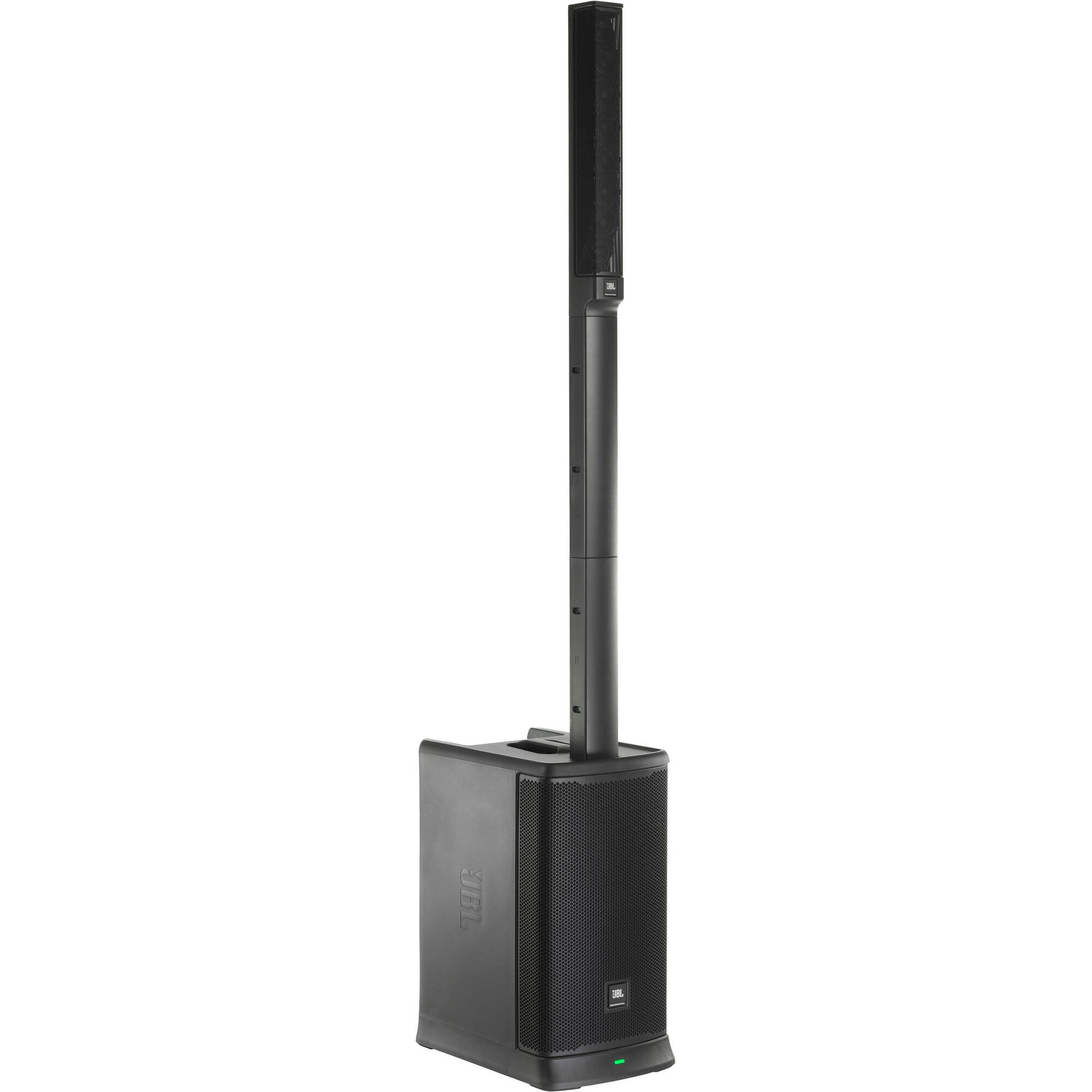

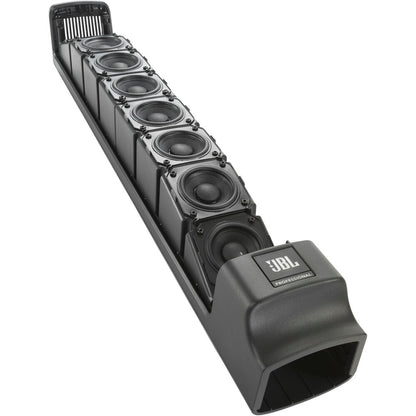

Performing musicians, singer/songwriters, and audio professionals looking for a compact, all-in-one PA system will be impressed with the JBL EON ONE MK2, a self-contained PA system that delivers professional-quality audio for live performances, meetings, conferences, and more. The base unit houses a 1500W amplifier, 10" unobstructed subwoofer, and the 5-channel mixer. The high-frequency element features a C-shaped array of eight 2" tweeters to deliver superior clarity and 170°H x 30°V dispersion for room-filling sound, creating a remarkable front-to-back coverage.
Channels 1-3 on the mixer offer XLR-1/4" connectors, while input 4 features a 1/4" Hi-Z input for use with guitars or other instruments. A 3.5mm TRS summed input allows you to connect a portable playback device. The 5th input also doubles as the Bluetooth audio input for wireless audio streaming and control of up to 10 units. The mixer features three fixed EQ knobs for fast, hands-on access to the onboard EQ. Additionally, the EON ONE MK2 features a comprehensive suite of professional-grade Lexicon DSP, including reverb, delay, and chorus. dbx DriveRack technology offers Automatic Feedback Suppression (AFS) and 8-band parametric EQ as well as convenient presets to help you get the best sound fast. Should you wish to connect additional speakers, a 1/4" passthrough with independent volume control and speaker delay allows for analog system expansion.
JBL EON ONE MK2
Key Specifications
Portable PA System
Speaker Configuration: 1x 2-Way Speaker Column with Subwoofer
Number of Input Channels: 5 (4 x Mono, 1 x Stereo)
Amplifier Power Rating: 1500 W
Speakers
Enclosure Type: Bass-Reflex
HF Driver: 8x 2" / 50.8 mm
LF Driver: 1x 10" / 254 mm Woofer
Signal Processing
Crossover: 230 Hz
EQ: HF Shelf, MF Notch/Peak, LF Shelf
Effects: Reverb, Delay, Chorus
Dynamic Processing: Limiter
Performance
Frequency Range: 37 Hz to 20 kHz -10 dB, 45 Hz to 20 kHz ±3 dB
Maximum SPL: 119 dB, 123 dB
Coverage Angle: 170° H x 30° V
I/O Impedance: XLR Mic Input: 4 Kilohms (Balanced); 1/4" TRS Low-Z Input: 4 Kilohms (Balanced); 1/4" Hi-Z Input: 2 Megohms (Unbalanced); 1/8" / 3.5 mm Line Input: 10 Kilohms (Unbalanced)
