Key Specifications

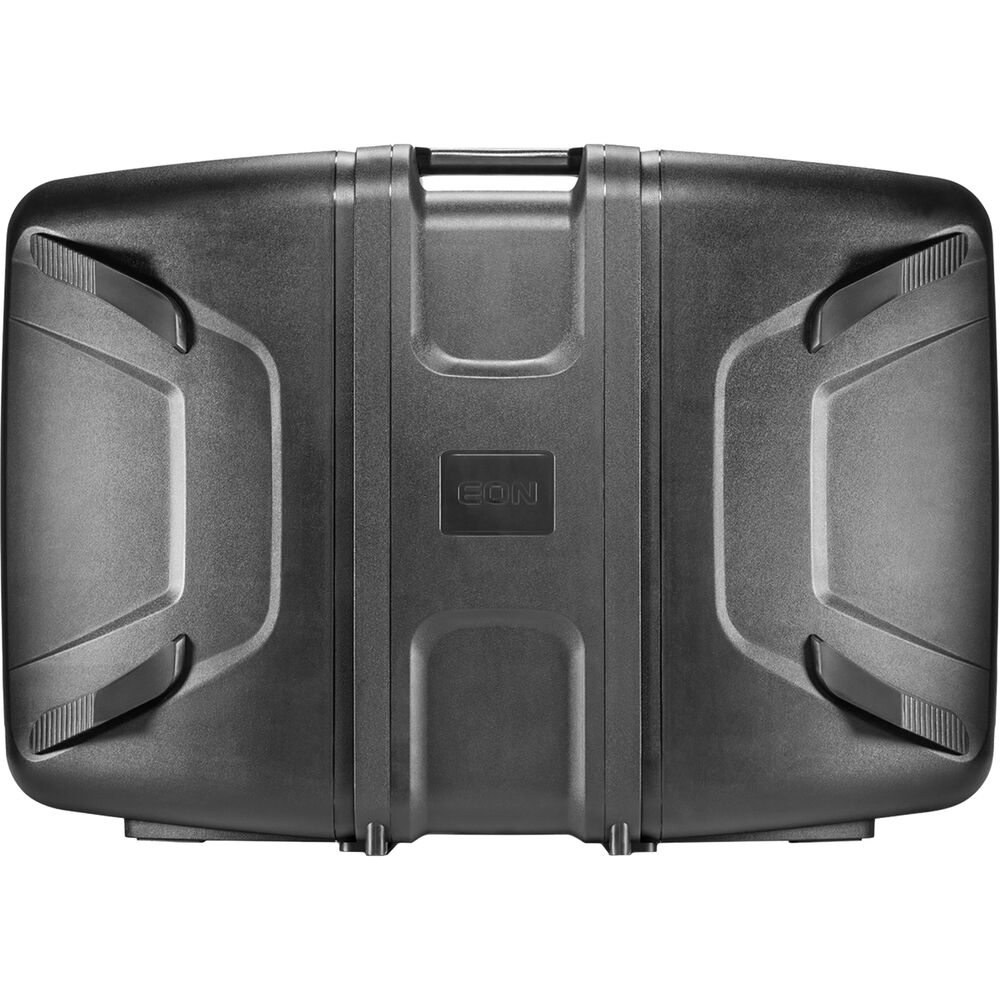

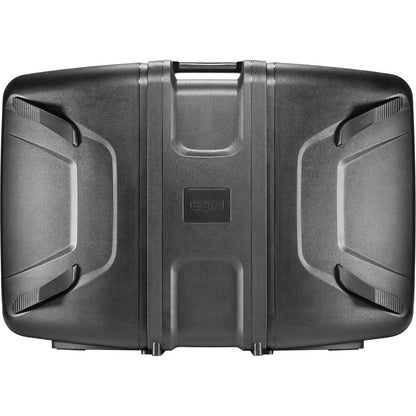

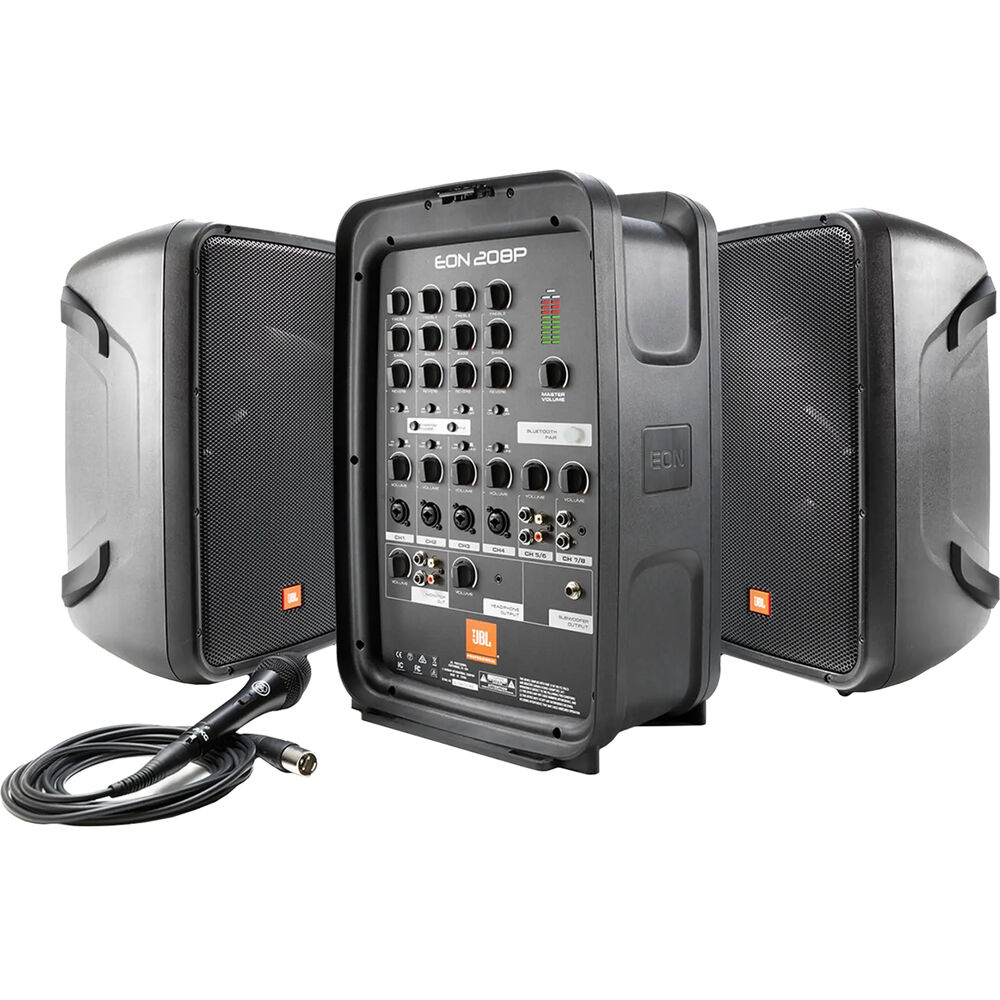

Portable PA System

• Speaker Configuration: 2x 2-Way Loudspeaker
• Number of Input Channels: 8 (4 x Mono, 2 x Stereo)
• Amplifier Power Rating: 300 W
• Amplifier Class: Class-D

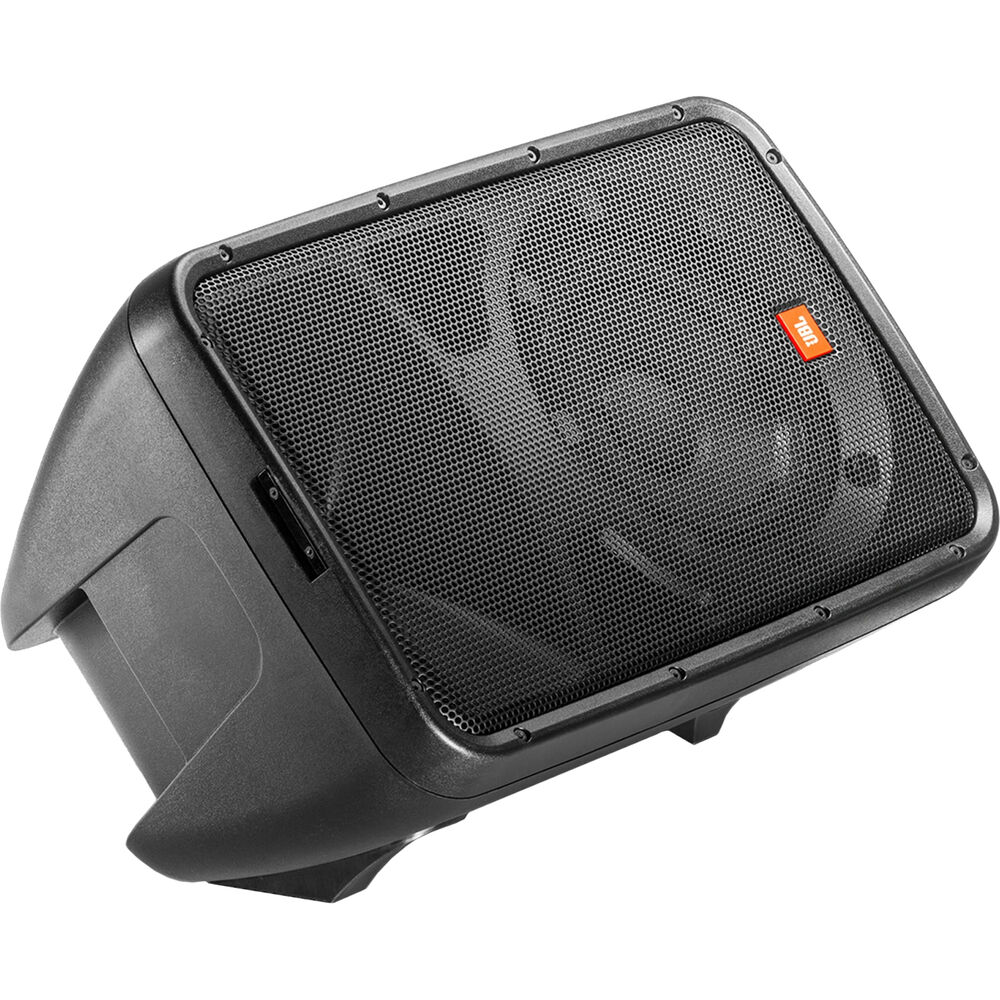

Speakers

• Enclosure Type: Bass-Reflex
• HF Driver: 1x 1" / 25.4 mm Aluminum Dome Tweeter
• LF Driver: 1x 8" / 203 mm Woofer
• Magnet: Neodymium

Signal Processing

• Crossover: 2 kHz, 12 dB/Octave (Passive)
• EQ: 4x HF Shelf (±12 dB), 4x LF Shelf (±12 dB)
• Effects: Reverb
• Dynamic Processing: Limiter

Microphone

• Microphone Type: 1x Handheld
• Capsule: Dynamic
• Outputs: 1x XLR 3-Pin Male Balanced

Performance

• Frequency Range: 60 Hz to 20 kHz -10 dB, 70 Hz to 18 kHz ±3 dB
• Maximum SPL: 121 dB (Peak)
• Coverage Angle: 100° H x 60° V

Connectivity

• Audio I/O: 4x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input, 4x 1/4" TRS Balanced Line Input, 1x Stereo RCA TS Line Input, 1x 1/8" / 3.5 mm TRS Line Input, 2x 1/4" TS Unbalanced Line/Monitor Output, 2x RCA TS Line/Monitor Output, 1x 1/8" / 3.5 mm TRS Headphone Output, 1x 1/4" TRS Balanced Subwoofer Output, 2x 1/4" TS Female Speaker Output
• Phantom Power: Yes
• Mobile App Compatible: No
• Wireless Connectivity: Bluetooth

Wireless

• Pairing: Manual

Power

• AC Input Power: 100 to 120 VAC, 50 / 60 Hz

Physical

• Transport Options: 1x Handle (Top)
• Mounting: 1.4" / 35.56 mm Pole Socket
• Construction Material: Perforated Metal Grille, Polypropylene
• Dimensions: 22.6 x 30.5 x 15.7" / 575 x 775 x 400 mm
• Weight: 38.8 lb / 17.6 kg

Packaging Info

• Package Weight: 50 lb
• Box Dimensions (L x W x H): 30.5 x 22.55 x 15.75"
