Key Specifications

Total Number of Inputs

12x Mono
2x Stereo

Mic/Line Inputs

12x Line Mono: 1/4" TRS Phone
2x Line Stereo: L/R 1/4" TRS Phone

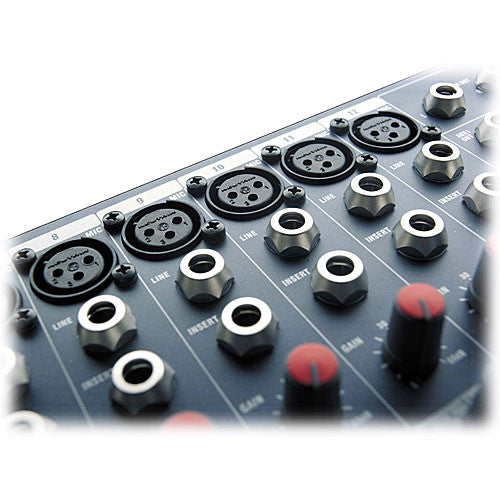

12x Microphone: 3-Pin XLR

Stereo Line Inputs

2x Stereo: L/R 1/4" TRS Phone

In-Line Inputs / Returns

No

AUX Sends

2x Aux Sends

AUX Returns

No Dedicated Returns

Inserts

1/4" TRS Phone – Mono Inputs, Main Stereo Output

BUS (Group) Outputs

Stereo Output Only

2-Track Master I/O

Mix L/R: Stereo Paired L/R RCA Phono

ALT I/O

No

Monitor Outputs

Monitor: L/R Stereo Paired 1/4" TRS Phone

EQ Section (Mono Inputs)

±15 dB
Lo: 80 Hz
Mid: 150 Hz – 3.5 kHz (Swept)
Hi: 12 kHz
Q: 1.5

EQ Section (Stereo Inputs)

±15 dB
Lo: 80 Hz
Mid: 720 Hz
Hi: 12 kHz

Solo / Mute

All Input Channels

Channel Level Control

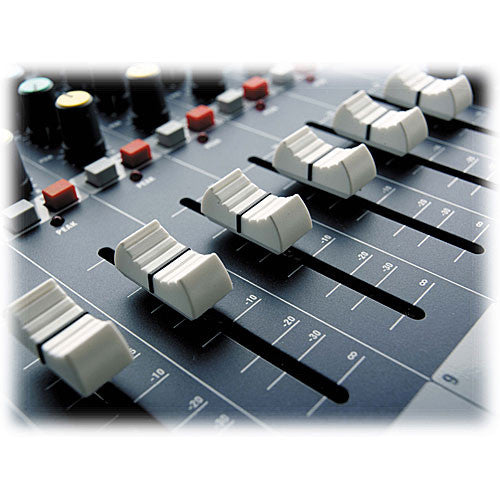

100 mm Faders

Trim / Gain Control

Rotary Potentiometers

Phantom Power

+48 V Phantom

Metering

10-Segment L/R Peak LEDs
+48 V Phantom Power LED
PFL Active LED
Power Indicator LED

Frequency Response

20 Hz – 20 kHz ±1.5 dB

Dynamic Range

Not Specified by Manufacturer

Signal-to-Noise Ratio

Noise (22 Hz – 22 kHz measurement bandwidth)
Mic EIN @ Max Gain, 150 Ohms Source Impedance: -127 dBu
Mix @ Max, Faders Down: < -85 dBu

Total Harmonic Distortion (THD)

Mic Sensitivity 30 dB, +14 dBu @ Mix Output: < 0.02%

Power Supply

Integral Lightweight Switched-Mode Power Supply
AC Mains Supply: 85–270 V AC, 50/60 Hz Universal Input
Power Consumption: Less than 20 W

Dimensions

17 x 3.56 x 14.25" (432 x 90.5 x 362 mm)

Weight

12.13 lb (5.5 kg)

Package Weight

17 lb

Box Dimensions (L × W × H)

21 x 18 x 8"
