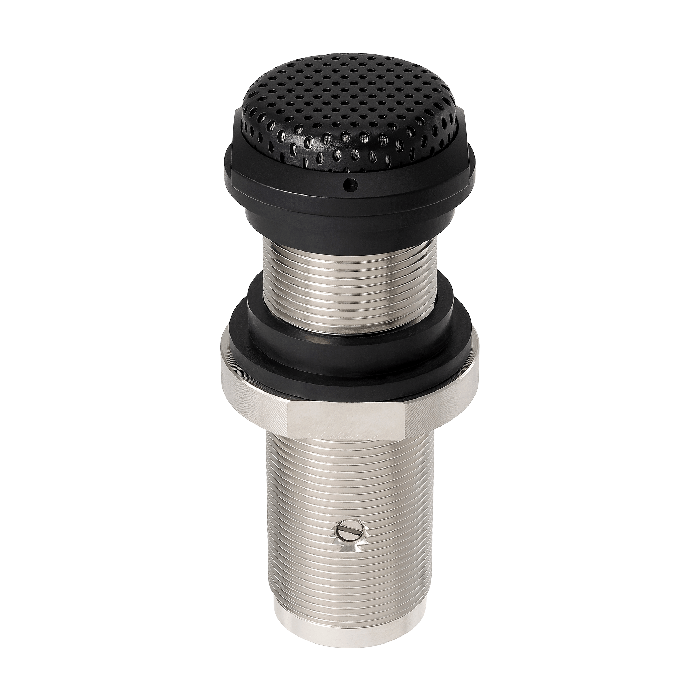

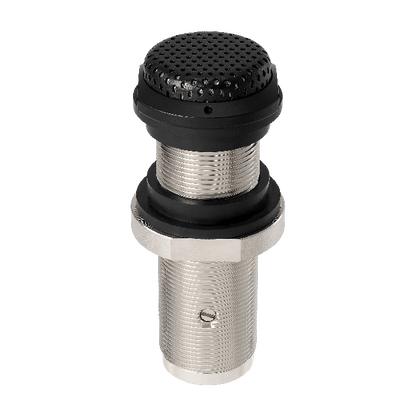

ES947C/XLR

PRICE FOR INQUIRY

Designed for surface-mount applications such as conferencing, recording, monitoring and other demanding sound pickup applications
Low-profile element provides uniform cardioid polar pattern with 120° acceptance angle
Mounts unobtrusively in tabletops, ceilings and panels
IPX4 water resistance protects the microphone from splashes of water
Self-contained power module with XLRM-type output connector
Rugged all-metal case with a two-layer perforated grille
Rubber Isolators provide mechanical dampening of mounting-surface vibration
Requires 11V to 52V DC phantom power
UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
Available in two colors: black (ES947C/XLR) and white (ES947WC/XLR)
RoHS compliant—free from all substances specified in the EU directive on hazardous substances

AUDIO TECHNICA

Price for Inquiry

UNIT: PIECE/S

Product Code: SKU:ATCH-ES947C/XL-CHN-496

Designed for surface-mount applications such as conferencing, recording, monitoring and other demanding sound pickup applications
Low-profile element provides uniform cardioid polar pattern with 120° acceptance angle
Mounts unobtrusively in tabletops, ceilings and panels
IPX4 water resistance protects the microphone from splashes of water
Self-contained power module with XLRM-type output connector
Rugged all-metal case with a two-layer perforated grille
Rubber Isolators provide mechanical dampening of mounting-surface vibration
Requires 11V to 52V DC phantom power
UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
Available in two colors: black (ES947C/XLR) and white (ES947WC/XLR)
RoHS compliant—free from all substances specified in the EU directive on hazardous substances

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

AUDIO TECHNICA ES947C/XLR

Key Specifications
Product Model	Audio-Technica ES945O/XLR (Equivalent)
Microphone Type	Fixed-mount Boundary Condenser
Element Type	Fixed-charge back plate, permanently polarized condenser
Polar Pattern	Cardioid (Unidirectional)
Acoustic Performance
Frequency Response	70 Hz to 8,500 Hz (Optimized for Speech)
Max Input SPL	134 dB SPL (1 kHz at 1% THD)
Dynamic Range	110 dB (1 kHz at Max SPL)
Signal-to-Noise Ratio	70 dB (1 kHz at 1 Pa, A-weighted)
Connectivity & Power
Output Connector	Integral 3-pin XLRM-type
Phantom Power Req.	11V to 52V DC, 2 mA typical
Output Impedance	100 ohms
Physical Specifications
Dimensions	69.0 mm (H) x 26.0 mm (W) x 30.0 mm (D)
Net Weight	62 g (2.2 oz)
Included Hardware	2 x Rubber isolators, 1 x Nut for flush-mount installation
