Key Specifications

Active or Passive

Passive

System Type

Full-Range

Configuration

2-way

System Continuous Power

300 W

System Programme Power

600 W

System Peak Power

1200 W

Max SPL @ 1m

129 dB

Freq Range (-10 dB)

50 Hz - 20 kHz

Freq Response (+/-3 dB)

55 Hz - 20 kHz

Bi-amp Mode Switch

No

Bluetooth

No

IP Certification

None

Driver Brand

Wharfedale Pro

LF Driver Size

12"

LF Voice Coil Size

2"

LF Rated Impedance

8 Ω

LF Power (RE:AES2-2012)

300 W

HF Driver Type

Compression Driver

HF Voice Coil Size

1.75"

HF Diaphragm Material

Titanium

HF Exit Size

1"

HF Power (RE:AES2-2012)

40 W

HF Rated Impedance

8 Ω

HF Nominal Coverage (H x V)

90° x 60°

Preset Library

Yes

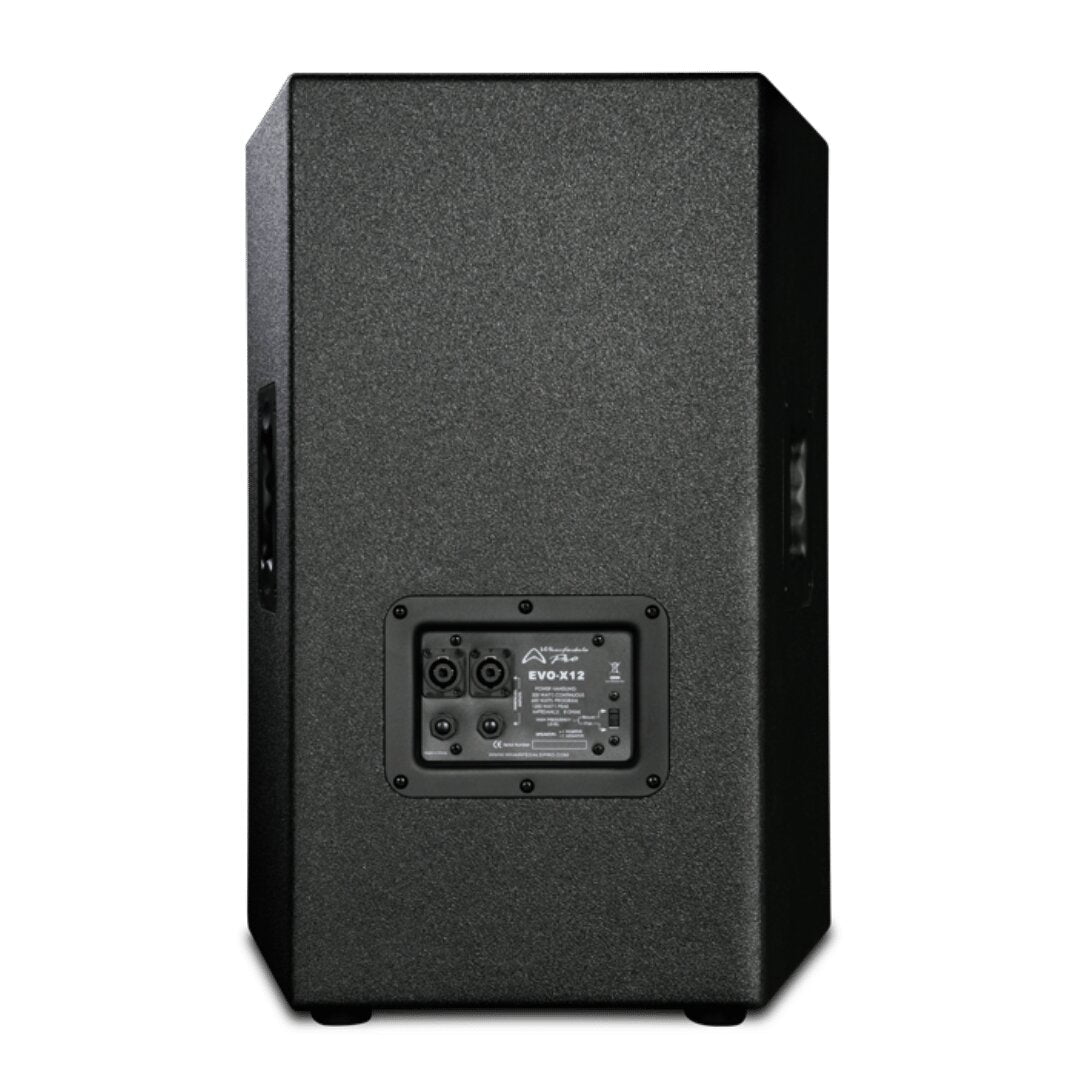

Input Connector

2 × 4 Pole Speaker Connector / 2 × 1/4" Jacks

Waveguide Type

Elliptical

Enclosure Material

MDF

Grille Material and Finish

Steel Black

Finish

Black Rhino Paint

Handles

2

Deployment

Pole

Pole Mount

Dual Angle (0° / 10°) 35 mm

Brackets Included

No

Rigging

No

Sensitivity 2.83v / 1m

98 dB

System Rated Impedance

8 Ω

Crossover Frequency

2.3 kHz

Recommended HPF = BW 18 dB/OCT.

50 Hz

Transformer (T)

No

Included Accessory

User Manual

Unpacked - Height (mm)

590

Unpacked - Width Front (mm)

430

Unpacked - Width Rear (mm)

298

Unpacked - Depth (mm)

370

Packed - Height (mm)

655

Packed - Width Front (mm)

492

Packed - Width Rear (mm)

328

Packed - Depth (mm)

408

Weight - Nett (kg)

19.2

Weight - Gross (kg)

22.4
