Key Specifications

Active or Passive

Passive

System Type

Full-Range

Configuration

2-way

System Continuous Power

350 W

System Programme Power

700 W

System Peak Power

1400 W

Max SPL @ 1m

130 dB

Freq Range (-10 dB)

40 Hz - 20 kHz

Freq Response (+/-3 dB)

45 Hz - 20 kHz

Bi-amp Mode Switch

No

Bluetooth

No

IP Certification

None

Driver Brand

Wharfedale Pro

LF Driver Size

15"

LF Voice Coil Size

2.5"

LF Rated Impedance

8 Ω

LF Power (RE:AES2-2012)

350 W

HF Driver Type

Compression Driver

HF Voice Coil Size

1.75"

HF Diaphragm Material

Titanium

HF Exit Size

1"

HF Power (RE:AES2-2012)

40 W

HF Rated Impedance

8 Ω

HF Nominal Coverage (H x V)

90° x 60°

Preset Library

Yes

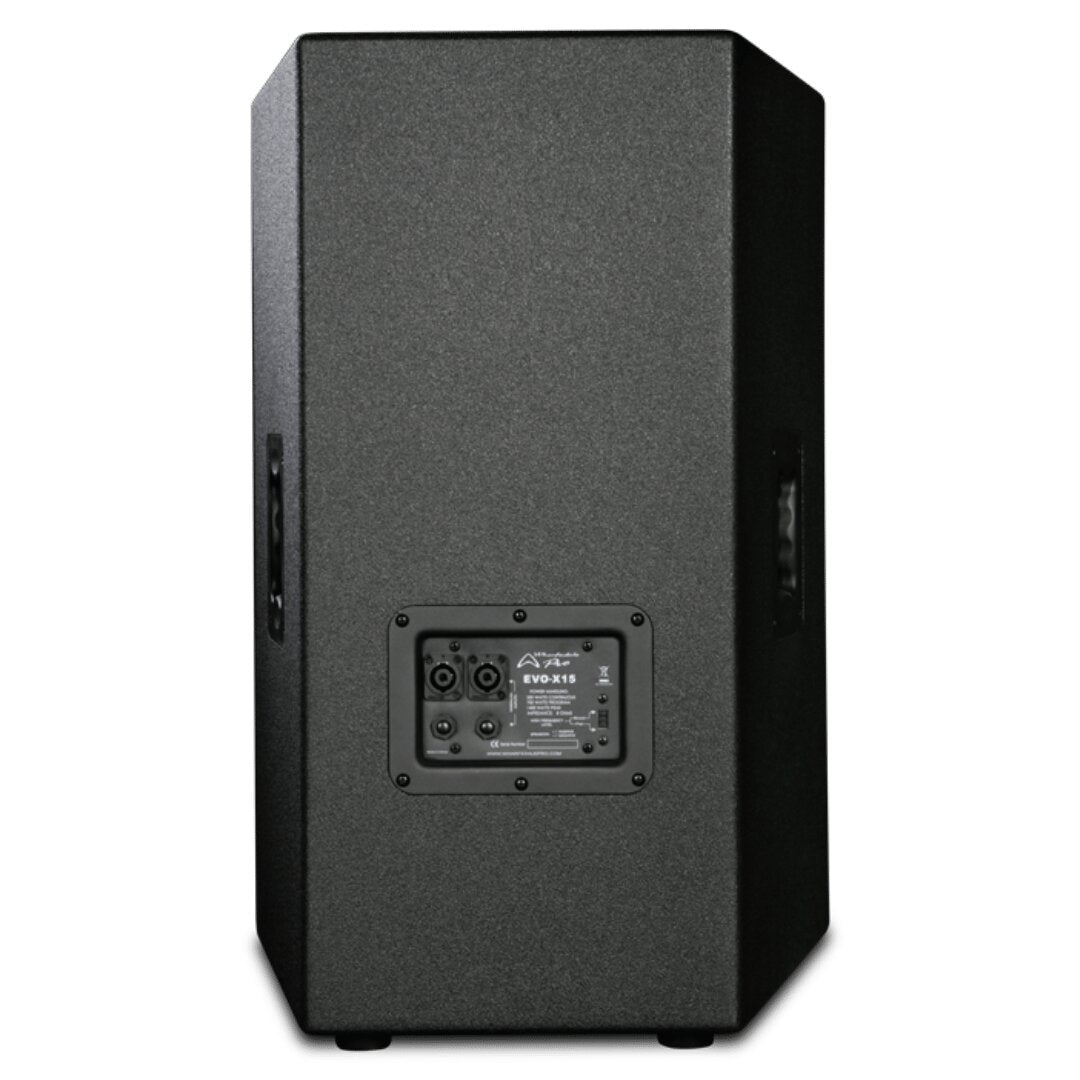

Input Connector

2 × 4 Pole Speaker Connector / 2 × 1/4" Jacks

Waveguide Type

Elliptical

Enclosure Material

MDF

Grille Material and Finish

Steel Black

Finish

Black Rhino Paint

Handles

2

Deployment

Pole

Pole Mount

Dual Angle (0° / 10°) 35 mm

Brackets Included

No

Rigging

No

Sensitivity 2.83v / 1m

98 dB

System Rated Impedance

8 Ω

Crossover Frequency

2.2 kHz

Recommended HPF = BW 18 dB/OCT.

40 Hz

Transformer (T)

No

Included Accessory

User Manual

Unpacked - Height (mm)

675

Unpacked - Width Front (mm)

460

Unpacked - Width Rear (mm)

295

Unpacked - Depth (mm)

450

Packed - Height (mm)

750

Packed - Width Front (mm)

524

Packed - Width Rear (mm)

324

Packed - Depth (mm)

486

Weight - Nett (kg)

24.7

Weight - Gross (kg)

28.4
