Key Specifications

Display

1 × Multi-Segment LED Meter

Channels of I/O

Analog: 2 Inputs / 2 Outputs at 96 kHz

Built-In DSP

No

Maximum Sampling Rate

96 kHz / 24-Bit

Number of Microphone Inputs

2

Built-In Microphone

No

Input Level Adjustment

2 × Automatic
1 × Knob

Signal Processing

Pad

No

Gain / Trim Range

Mic / Line / Hi-Z Inputs: 58 dB

High-Pass Filter

No

Solo / Mute

Mute per Input Channel, Master

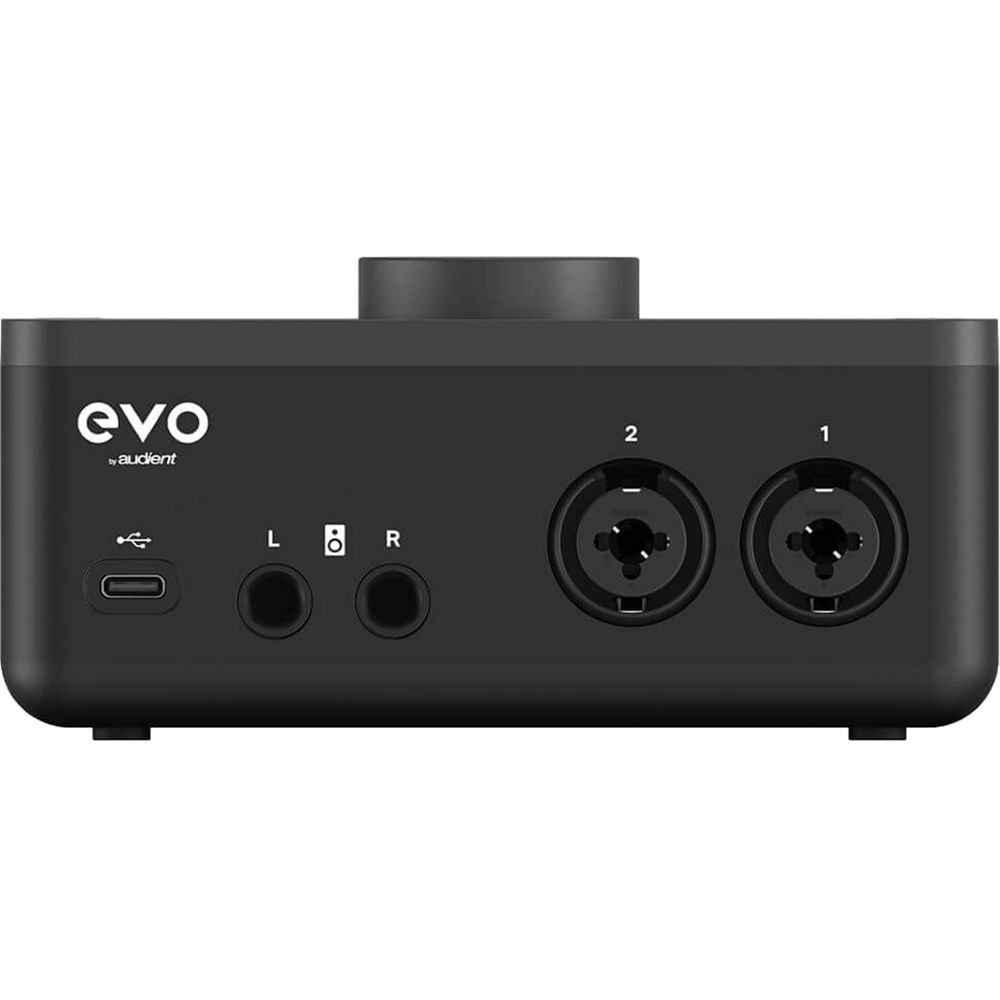

Connectivity

Analog Audio I/O

2 × Combo XLR-1/4" TRS Balanced Mic/Line Input

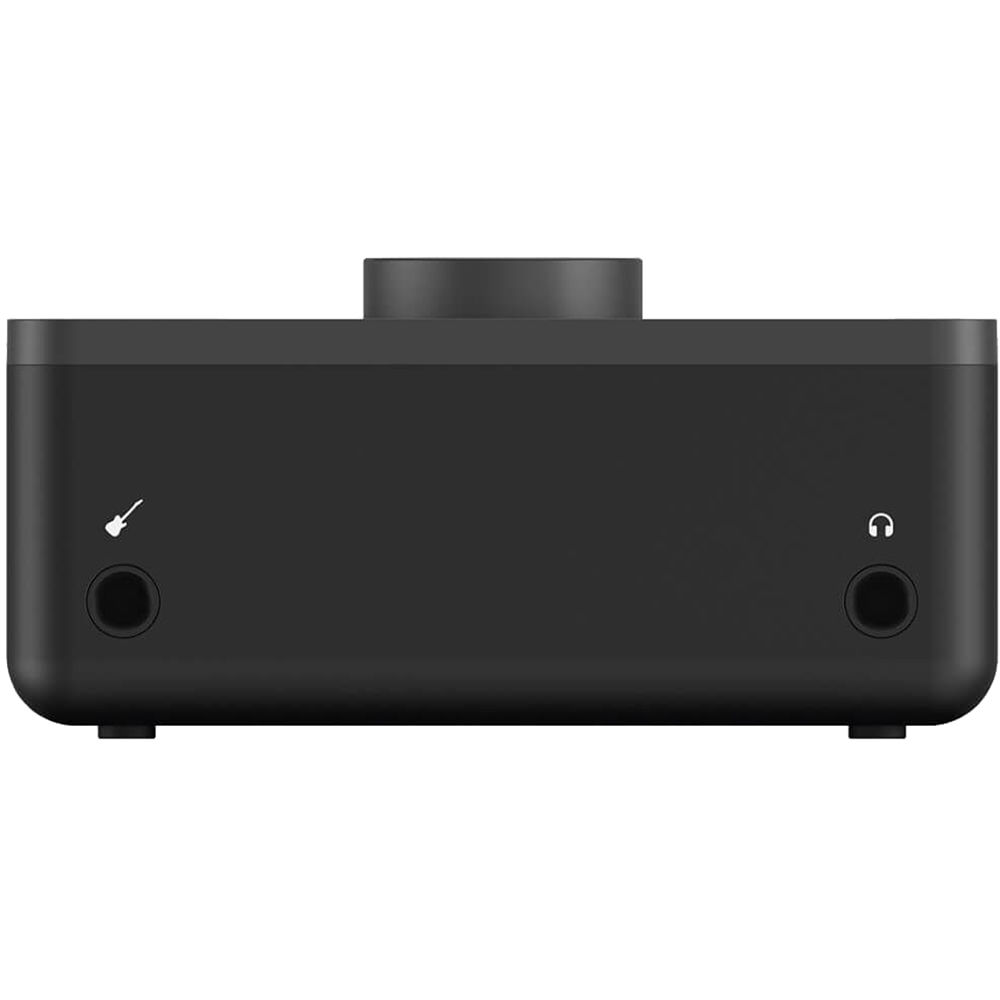

1 × 1/4" TS Unbalanced Hi-Z Input
1 × 1/4" TRS Unbalanced Headphone Output
2 × 1/4" TRS Balanced Monitor Output

Phantom Power

48 V ±4 V, Selectable On/Off (Selectable on Individual Inputs)

Digital Audio I/O

No

Host Connection / USB

1 × USB-C

Host Connection Protocol

USB 2.0

USB (Non-Host)

No

Sync I/O

No

Network I/O

No

MIDI I/O

No

Expansion Slots

No

Wireless

No

Performance

Frequency Response

A/D Converters: 10 Hz to fs/2 ±0.5 dB
D/A Converters: 10 Hz to fs/2 ±0.5 dB
Mic Inputs: 10 Hz to 40 kHz ±0.5 dB
Line / Hi-Z Inputs: 10 Hz to 20 kHz ±0.5 dB
Headphone Outputs: 10 Hz to fs/2 ±0.5 dB

Maximum Input Level

Mic Inputs: +16 dBu
Hi-Z Inputs: +10 dBu

Maximum Output Level

D/A Converters: +11 dBu

Headphone Output Power

45 mW into 30 Ohms (Max)
52 mW into 60 Ohms (Max)
20 mW into 600 Ohms (Max)

Impedance

Mic Inputs: >3 kΩ (Balanced)
Line Inputs: >10 kΩ (Balanced)
Hi-Z Inputs: 1 MΩ (Unbalanced)

Dynamic Range

AD/DA Converters: 113 dBA

Signal-to-Noise Ratio (SNR)

Mic / Line / Hi-Z Inputs: 100 dB

THD+N

A/D Converters: <0.001% (1 kHz, -1 dBFS)
D/A Converters: <0.0015% (1 kHz, -1 dBFS)
Headphone Outputs: <0.0015% (1 kHz, -1 dBFS)
Hi-Z Inputs: <0.3% (1 kHz)
Mic / Line Inputs: <0.0015% (1 kHz)

Equivalent Input Noise (EIN)

Mic / Line Inputs: <-128 dB

Digital Audio

Sample Rates

Up to 96 kHz

Sample Rate Conversion

No

Bit Depth

Up to 24-Bit

Latency

5 ms at 44.1 kHz (Dependent on Buffer Size, Input to Output)
4.1 ms at 96 kHz (Dependent on Buffer Size, Input to Output)

Sync Source

Internal

Compatibility

OS Compatibility

Computer: macOS 10.7 or Later / Windows 7 or Later
Mobile: iOS Only

Processor Requirement

Mac: Intel
PC: 1.6 GHz Intel Core 2 / AMD

RAM Requirement

1 GB

Required Hardware

Available USB 2.0 Port, USB Cable (Included)

Power

Power Requirement

USB Bus Power

Physical

Dimensions

5.51 × 2.64 × 2.64" (14 × 6.71 × 6.71 cm)

Weight

12.7 oz (360 g)
