Key Specifications

Speaker Configuration

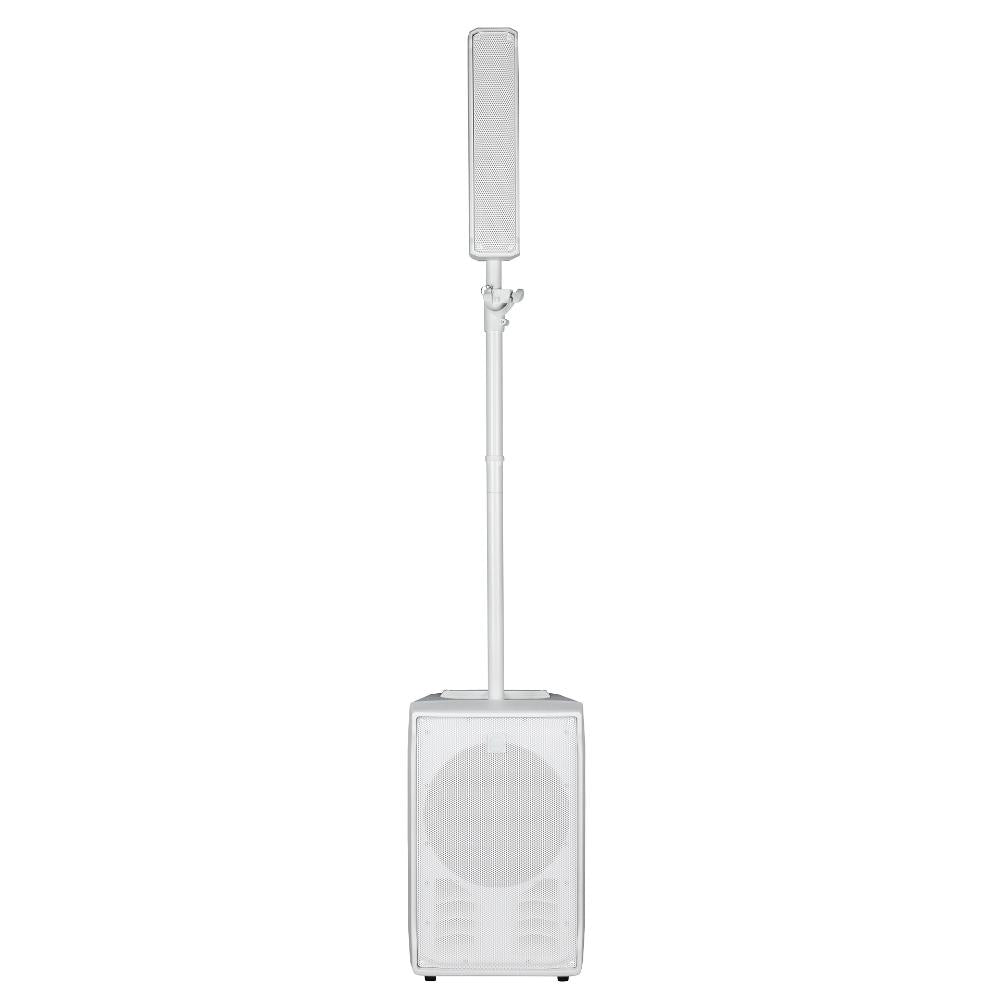

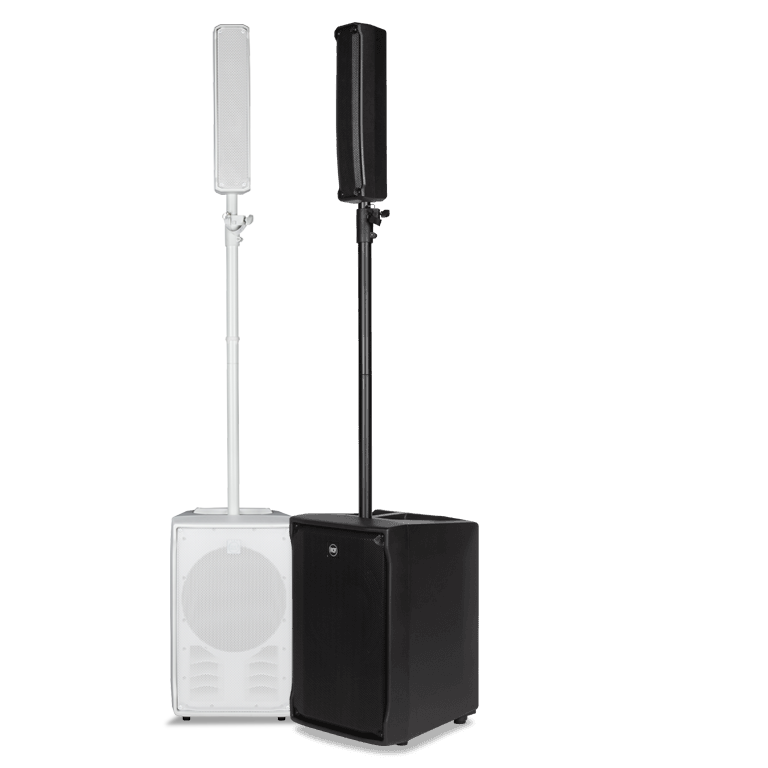

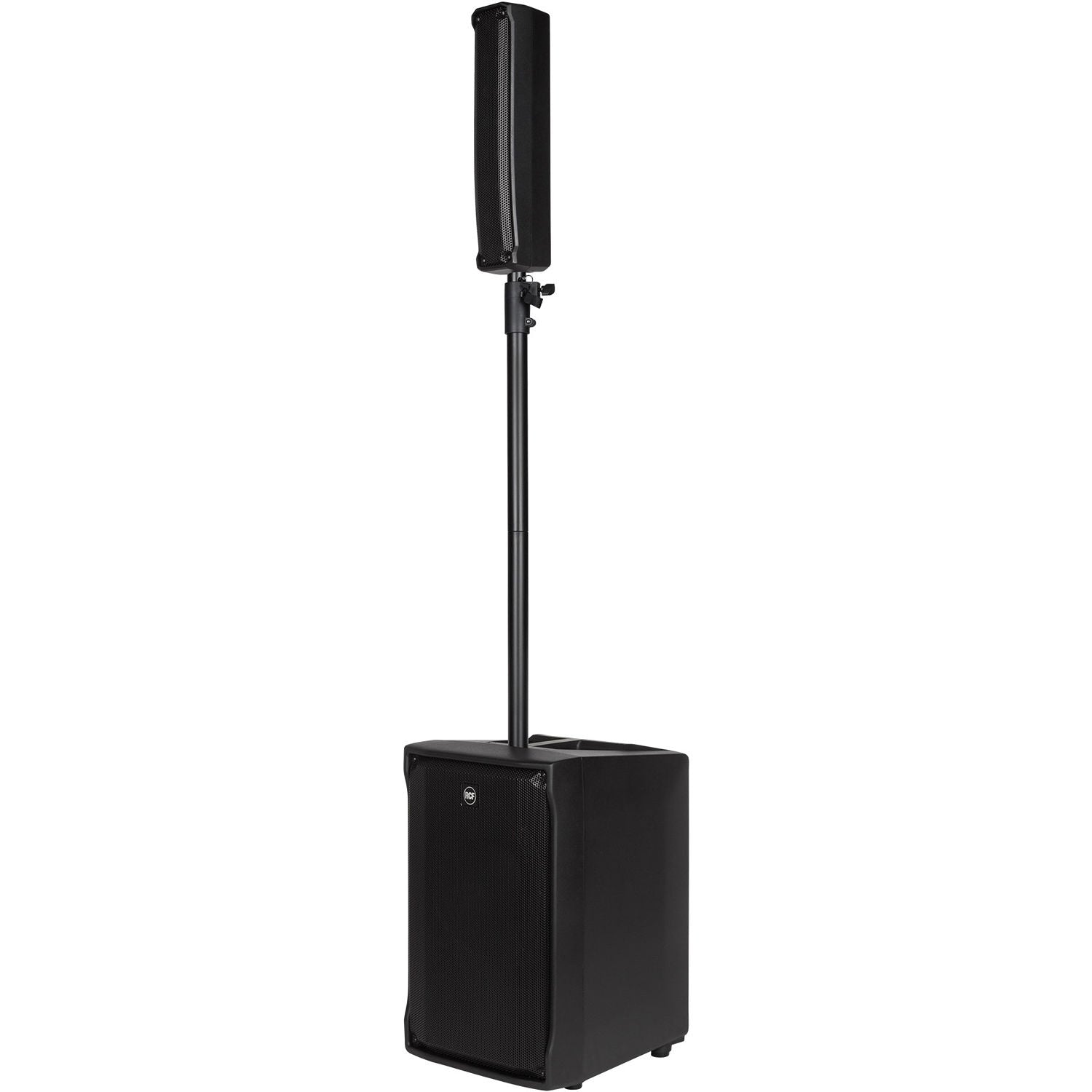

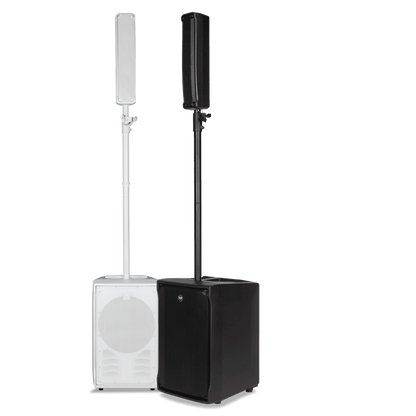

2-Way Speaker Column with Subwoofer

System Type

Portable PA System

Amplifier & Power

Total Power

1400 W Peak / 700 W RMS

Low Frequency (LF)

1000 W Peak / 500 W RMS

High Frequency (HF)

400 W Peak / 200 W RMS

Amplifier Class

Class-D

Speakers

HF Drivers

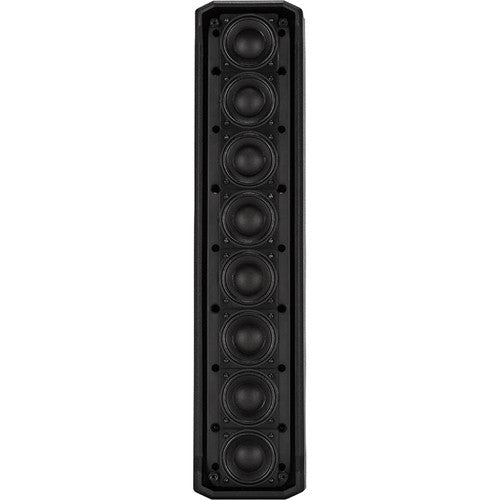

8 × 2" drivers

HF Voice Coil

1" / 2.5 cm

LF Driver

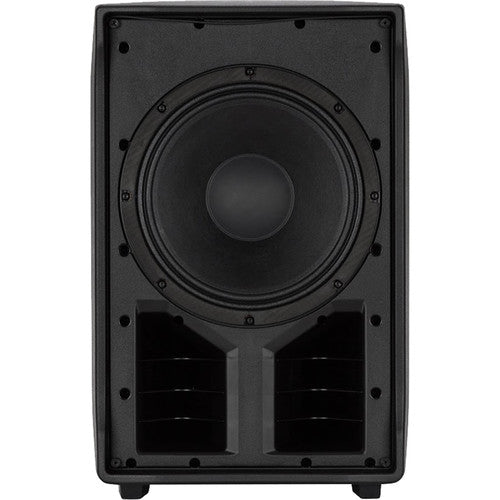

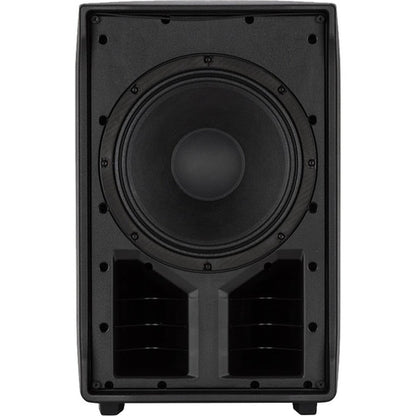

1 × 12" woofer

LF Voice Coil

2.5" / 6.4 cm

Signal Processing

Crossover Frequency

220 Hz

Dynamic Processing

Soft Limiter

Performance

Frequency Response

40 Hz – 20 kHz

Maximum SPL

128 dB

Coverage Angle

120° H × 30° V

Protections

RMS, Thermal

Connectivity

Inputs

1 × XLR 3-Pin Balanced Mic/Line Input
1 × 1/4" TRS Balanced Mic/Line Input

Outputs

1 × XLR 3-Pin Male Link Output
1 × speakON NL2 Link Output

Mobile App Compatible

No

Physical Specifications

Construction Material

Polypropylene Cabinet, Metal Grille

Dimensions (H × W × D)

24.5 × 15.7 × 18.1" / 62.3 × 40 × 46 cm

Weight

52.5 lb / 23.8 kg

Packaging Information

Package Weight

63 lb

Box Dimensions (L × W × H)

27 × 23 × 18"
