Key Specifications

Speaker Configuration

1x 2-Way Speaker Column with Subwoofer

Number of Input Channels

1 (1 x Mono)

Amplifier Power Rating

Total: 2100 W Peak
HF: 700 W Peak
LF: 1400 W Peak

HF Driver

1x 1.75" / 4.45 cm Compression Driver

MF Driver

6x 3" / 7.6 cm

Audio I/O

Combo XLR-1/4" / XLR

USB I/O

No

Wireless

No

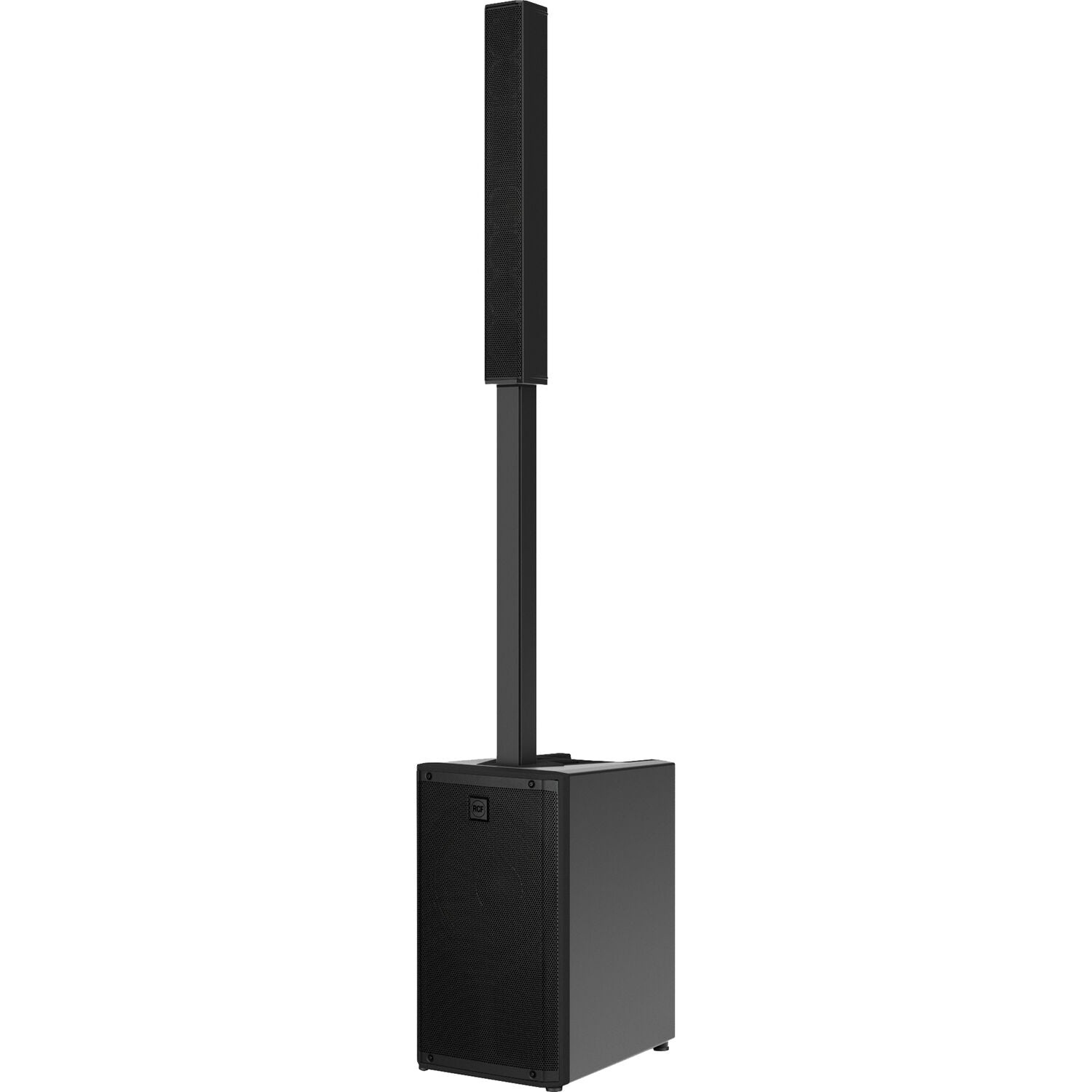

Portable PA System

Speaker Configuration

1x 2-Way Speaker Column with Subwoofer

Number of Input Channels

1 (1 x Mono)

Amplifier Power Rating

Total: 2100 W Peak
HF: 700 W Peak
LF: 1400 W Peak

Amplifier Class

Class-D

Speakers

Enclosure Type

Bass-Reflex

HF Driver

1x 1.75" / 4.45 cm Compression Driver

HF Voice Coil

1.75" / 4.45 cm

MF Driver

6x 3" / 7.6 cm

MF Voice Coil

1" / 2.5 cm

Subwoofer Driver

1x 12" / 30.5 cm

Subwoofer Voice Coil

2.5" / 6.3 cm

Magnet

HF Driver / MF Driver: Neodymium

Signal Processing

Crossover

200 / 1800 Hz

Semi-Parametric EQ

No

Dynamic Processing

Soft Limiter

Performance

Frequency Response

40 Hz to 20 kHz

Maximum SPL

130 dB

Coverage Angle

120° H x 40° V

Protections

RMS, Thermal

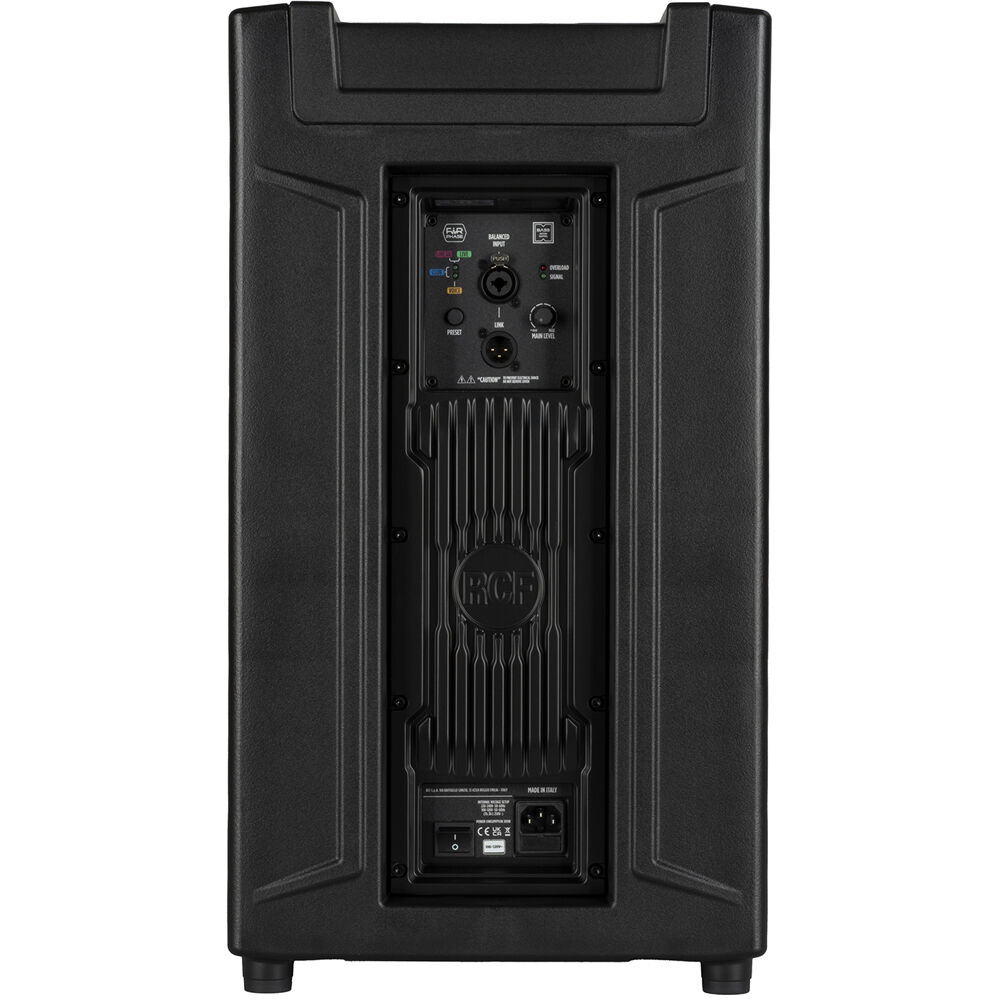

Connectivity

Audio I/O

1x Combo XLR-1/4" TRS Balanced Mic/Line Input
1x XLR 3-Pin Link Output

USB I/O

No

Mobile App Compatible

No

Network I/O

No

Wireless

Wireless

No

Power

AC Input Power

100 to 120 VAC, 60 Hz

AC Power I/O

1x IEC Input

Physical

Environmental Resistance

No

Dimensions

81.89 x 18.21 x 13.78" / 208 x 46.25 x 35 cm

Weight

62.39 lb / 28.3 kg

Packaging Info

Package Weight

72.48 lb

Box Dimensions (L × W × H)

35.1 x 32.5 x 18"
