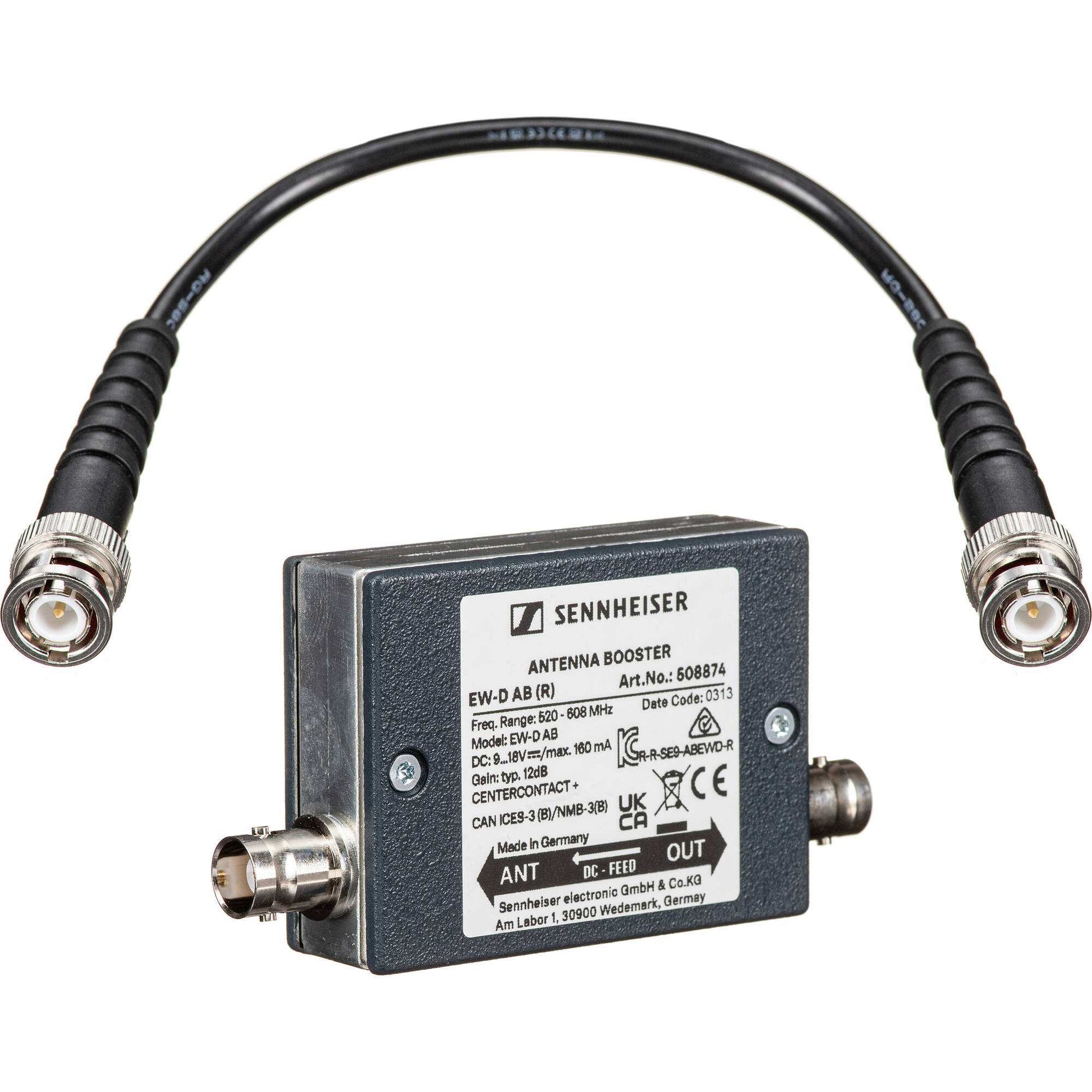

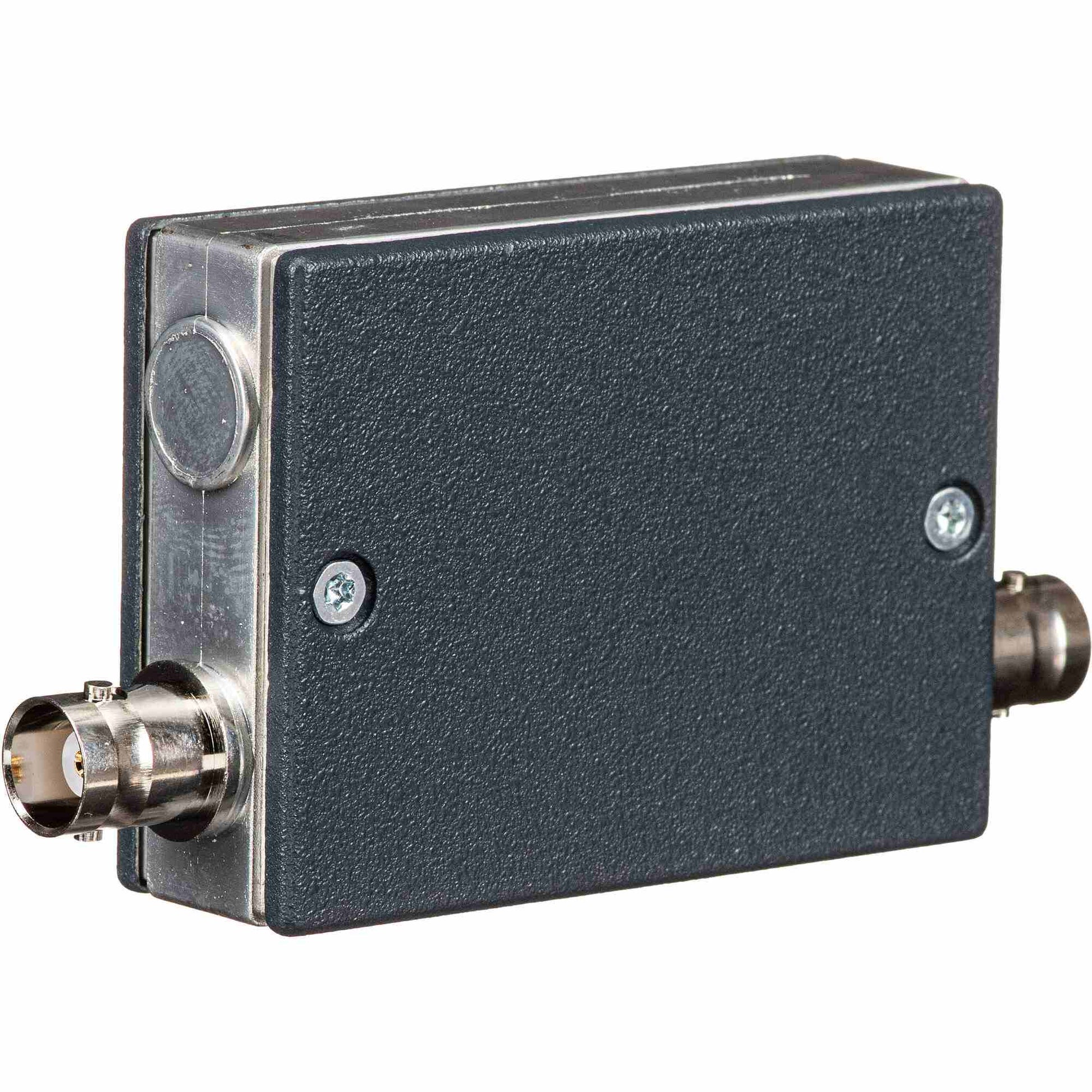

The Sennheiser EW-D AB Inline Antenna Booster is a high-quality, frequency-selective antenna booster that gets inserted between a remote antenna and an EW-D ASA antenna splitter. It delivers a 12 dB boost to compensate for RF signal loss when running long coaxial antenna cables, helping to significantly improve the wireless performance of your EW-D series receiver.

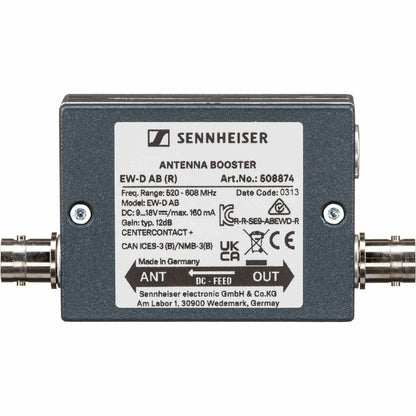

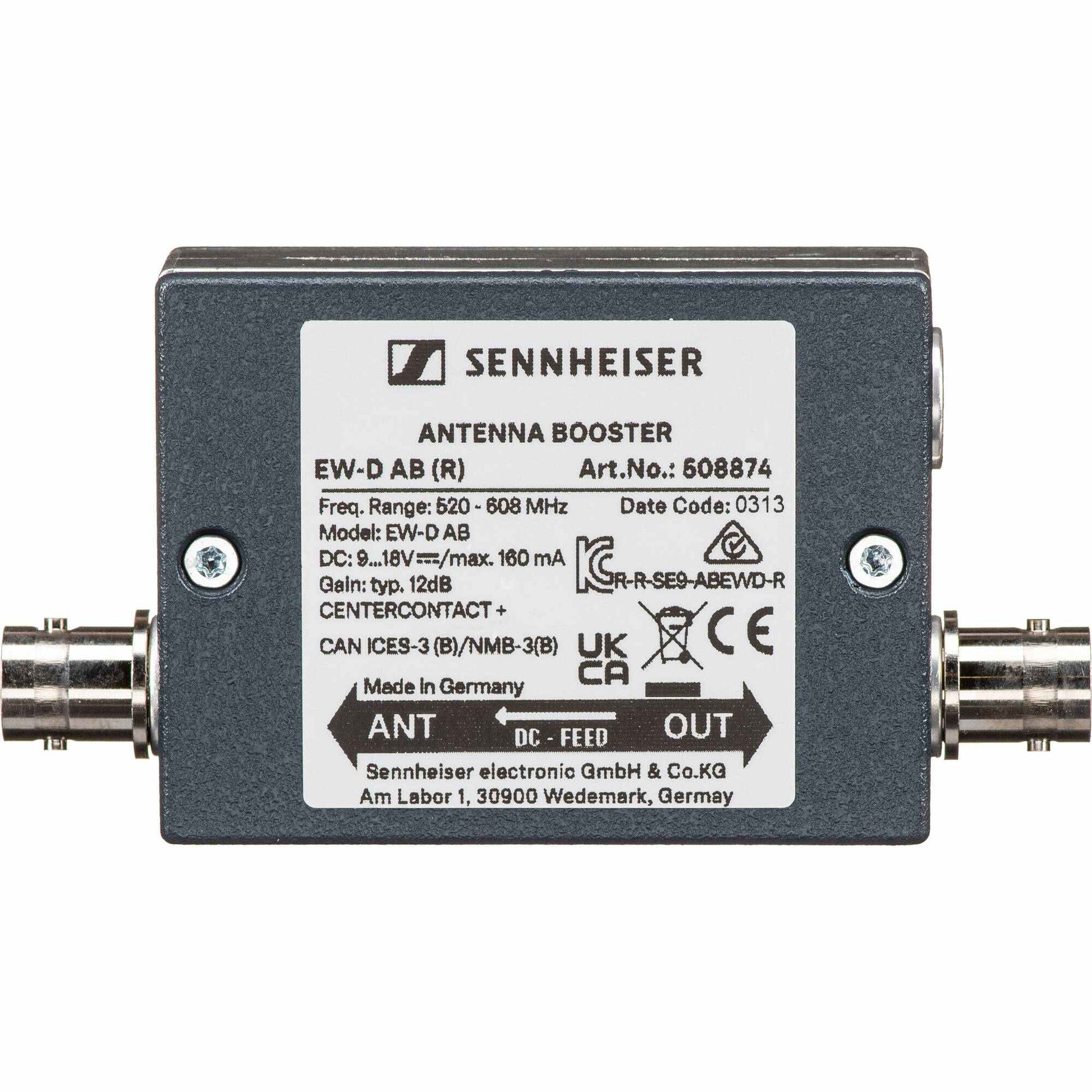

SENNHEISER EW-D AB (R)
Key Specifications
Product Model
Sennheiser EW-D AB Antenna Booster (Band R)
Product Type
Active In-Line Antenna Booster
Profile: Evolution Wireless Digital RF Enhancement
Technical Performance
RF Specifications
Frequency Range: R (520 to 608 MHz)
Gain: 12 dB (Typical)
IIP3: >25 dBm
Impedance: 50 Ohms
Connectivity & Power
Interface Features
Connectors: 2x BNC Female
Powering: Remote DC Power via Coaxial Cable
Operating Voltage: 12 VDC (9 to 18 VDC)
Current Consumption: Max 160 mA
Physical Build & Environmental
Structural Details
Dimensions: 3.7 x 1.9 x 0.8" / 95 x 47 x 21 mm
Net Weight: 4.2 oz / 120 g
Operating Temp: 14 to 131°F / -10 to 55°C
Physical Specifications
Handling & Packaging
Relative Humidity: 5 to 95%
Package Weight: 0.425 lb
Box Dimensions: 4.9 x 3.5 x 1.2"
