Key Specifications

Product Model

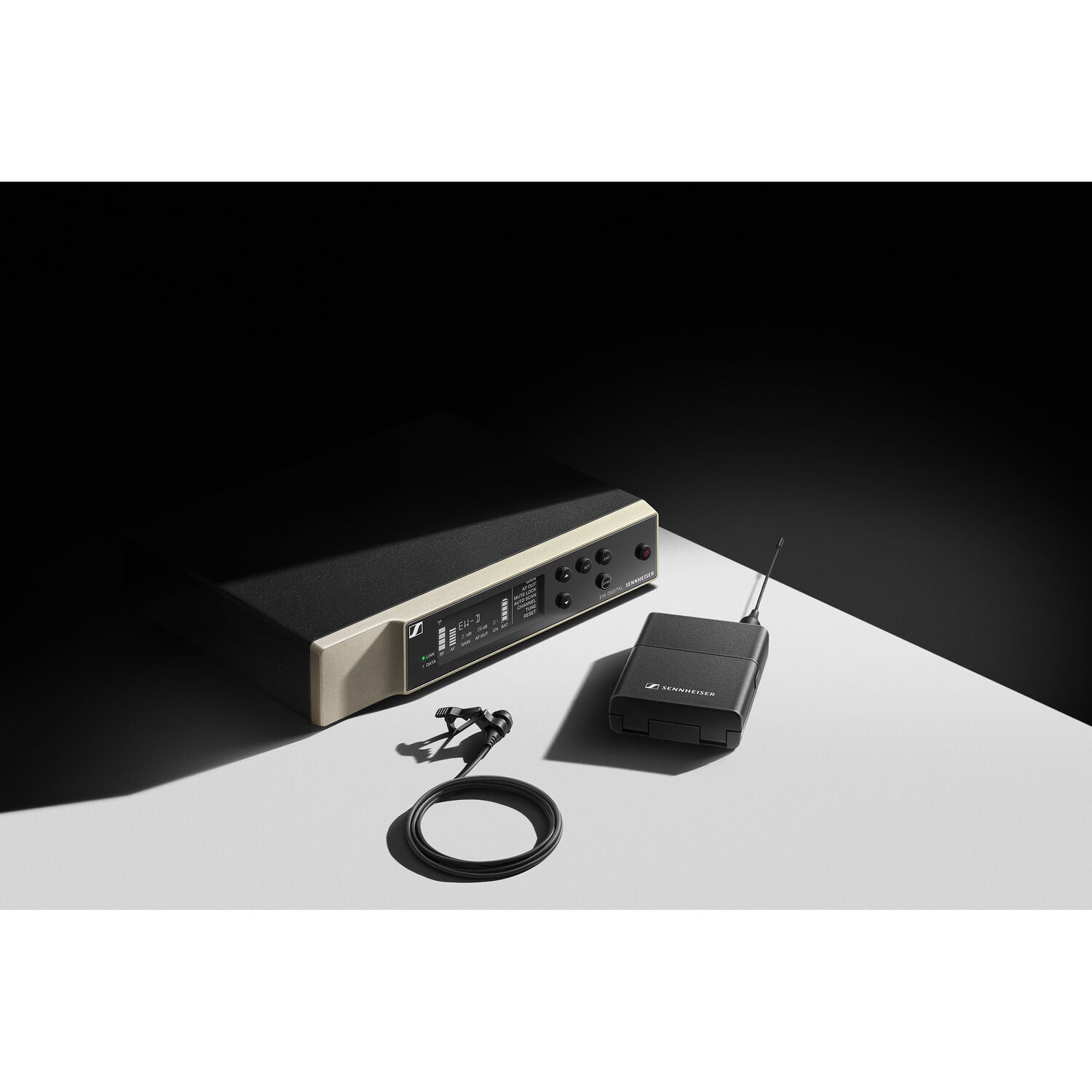

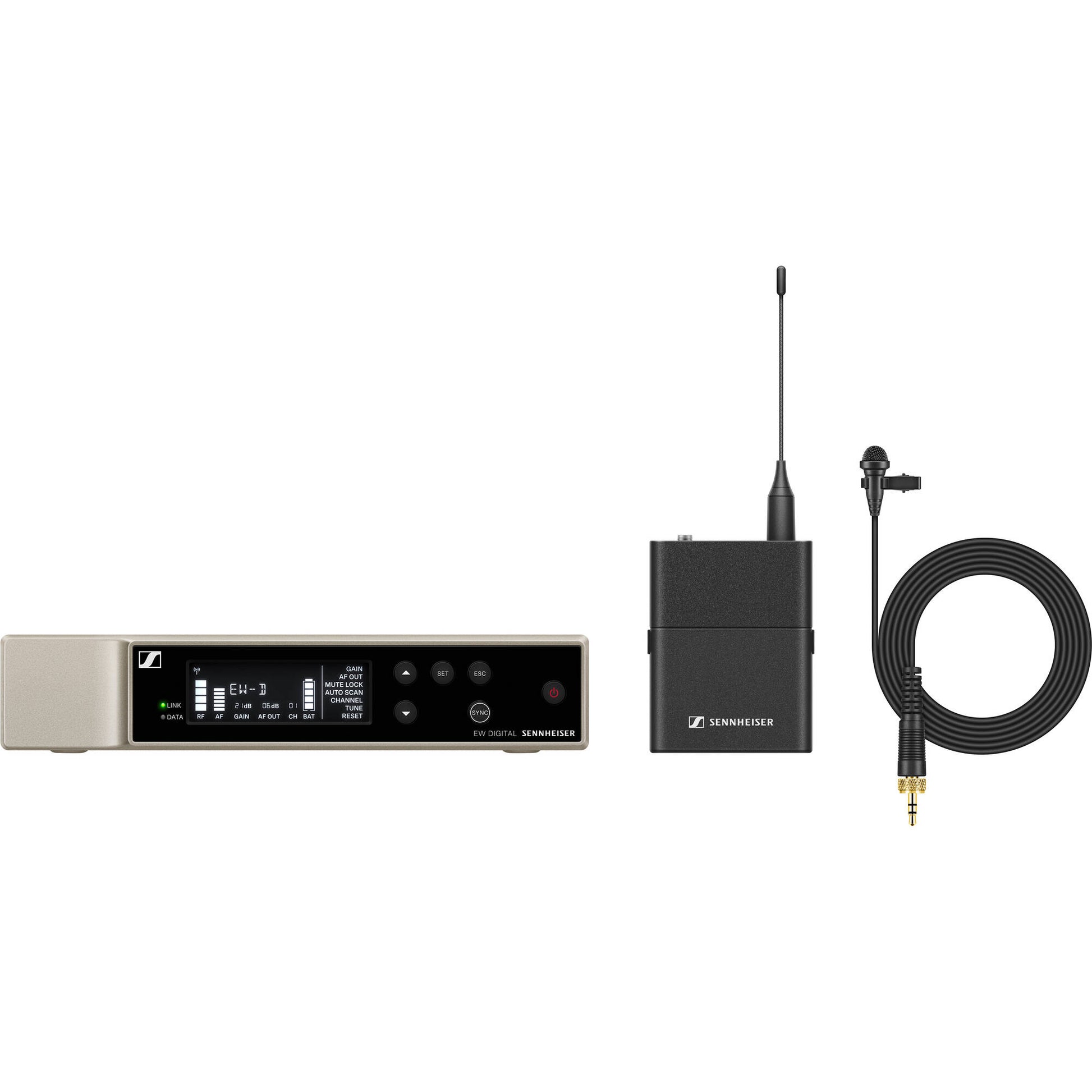

Sennheiser EW-D ME2 SET (Band Q1-6)

Wireless Technology

• Signal Type: Equidistant Digital UHF
• Frequency Band: 470.2 to 526 MHz
• Dynamic Range: 134 dB
• Latency: 1.9 ms

Receiver (EW-D EM)

Hardware Interface

• Display: High-Contrast OLED
• Antennas: 2x Removable BNC (Rear-Mount)
• Outputs: Balanced XLR & Unbalanced 1/4" TS
• Sync Method: Bluetooth Low Energy (BLE)

Bodypack Transmitter (SK EW-D)

Hardware Details

• Input: 3.5 mm Locking TRS (Mic / Line / Inst)
• RF Output Power: 10 mW
• Muting: Dedicated Mute Switch
• Battery Life: 8 Hours (AA) / 12 Hours (BA 70)

Lavalier Microphone (ME 2)

Acoustic Specs

• Polar Pattern: Omnidirectional
• Cable Length: 5.2' / 1.6 m
• Connector: 1/8" / 3.5 mm Locking TRS
• Color: Black

Physical Build & Utility

Structural Details

• Chassis: Rugged Metal (Receiver)
• Mounting: Rackmount Hardware Included (1U Half-Rack)
• Operating Range: 328' / 100 m (LoS)
