Key Specifications

Model

EZ-Mi1

Receiver Specifications

Chassis Specification

1U Half-Rack

Reception Method

True Diversity Single-Channel Reception

Carrier Frequency Range

470MHz~936MHz

Bandwidth

64MHz (region-dependent)

Modulation Method

D-QPSK

Frequency Stability

±0.005%

Operating Range

100 meters (open area)

Audio & Performance

Frequency Response

30Hz–20kHz ±1dB

Overall S/N Ratio

>100dB

Total Harmonic Distortion (T.H.D.)

<0.1% @1kHz

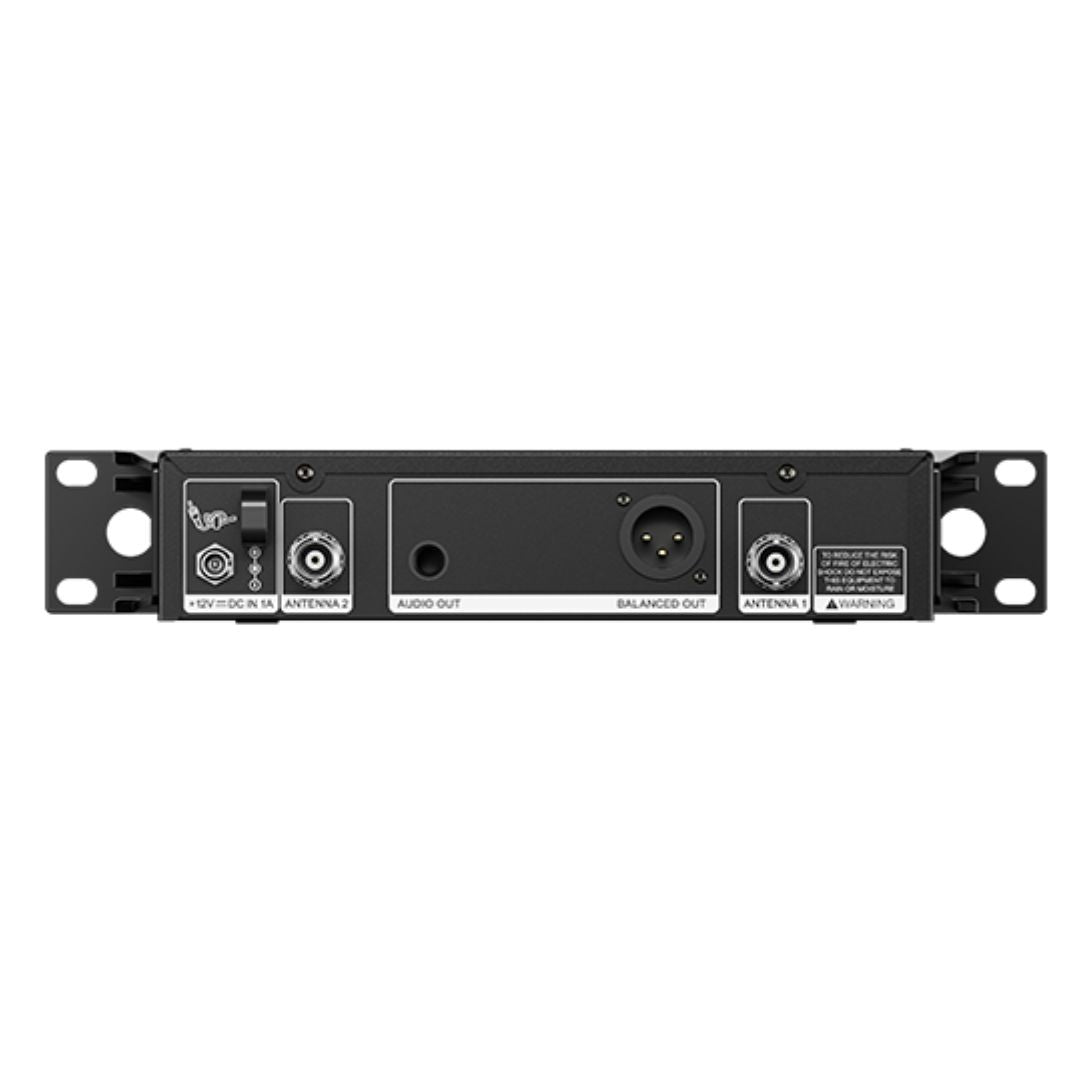

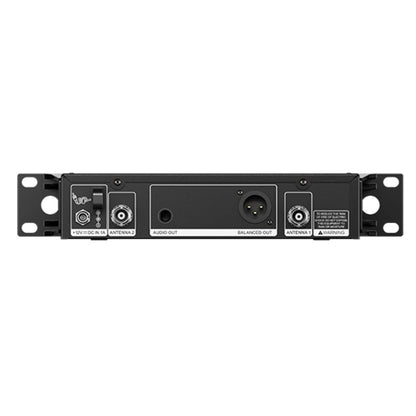

Interfaces & Connectivity

Antenna Interface

Dual BNC, Supports +12V/150mA Output

Audio Output Interfaces

6.3mm Unbalanced Audio Output, 2× XLR Balanced Audio Output

Power & Operating Conditions

Power Supply

DC 12V/1A

Operating Temperature Range

-10℃ to 50℃

Dimensions & Weight

Dimensions (mm)

205 (L) × 206 (W) × 43 (H)

Weight (Approx)

1kg
