Key Specifications

Form Factor/Type

Rackmount

Number of Amplifier Channels

2

Load Impedance/Voltage Support

4 / 8 / 16 Ohms
25 / 70 / 100 V

Power Rating per Channel

2x 125 W Peak at 4/8/16 Ohms
2x 125 W Peak at 70/100 V

Channel Bridging & Power Sharing

1x 250 W Peak Bridged at 4/8/16 Ohms
1x 250 W Peak Bridged at 70/100 V

Amplifier Class

Class-D

Performance

Protections

DC Fault, Overload, Short Circuit, Thermal, Undervoltage

Frequency Response

20 Hz to 20 kHz ±0.5 dB (8 Ohms, -3 dB Below Rated Power)

Damping Factor

> 250

SNR/Noise

> 102 dBA SNR (at 8 Ohms)

THD/Distortion

≤ 0.05% THD+N

Crosstalk

< 65 dB

Signal Processing

DSP

Yes

Audio Delay

No

Dynamics

Limiter

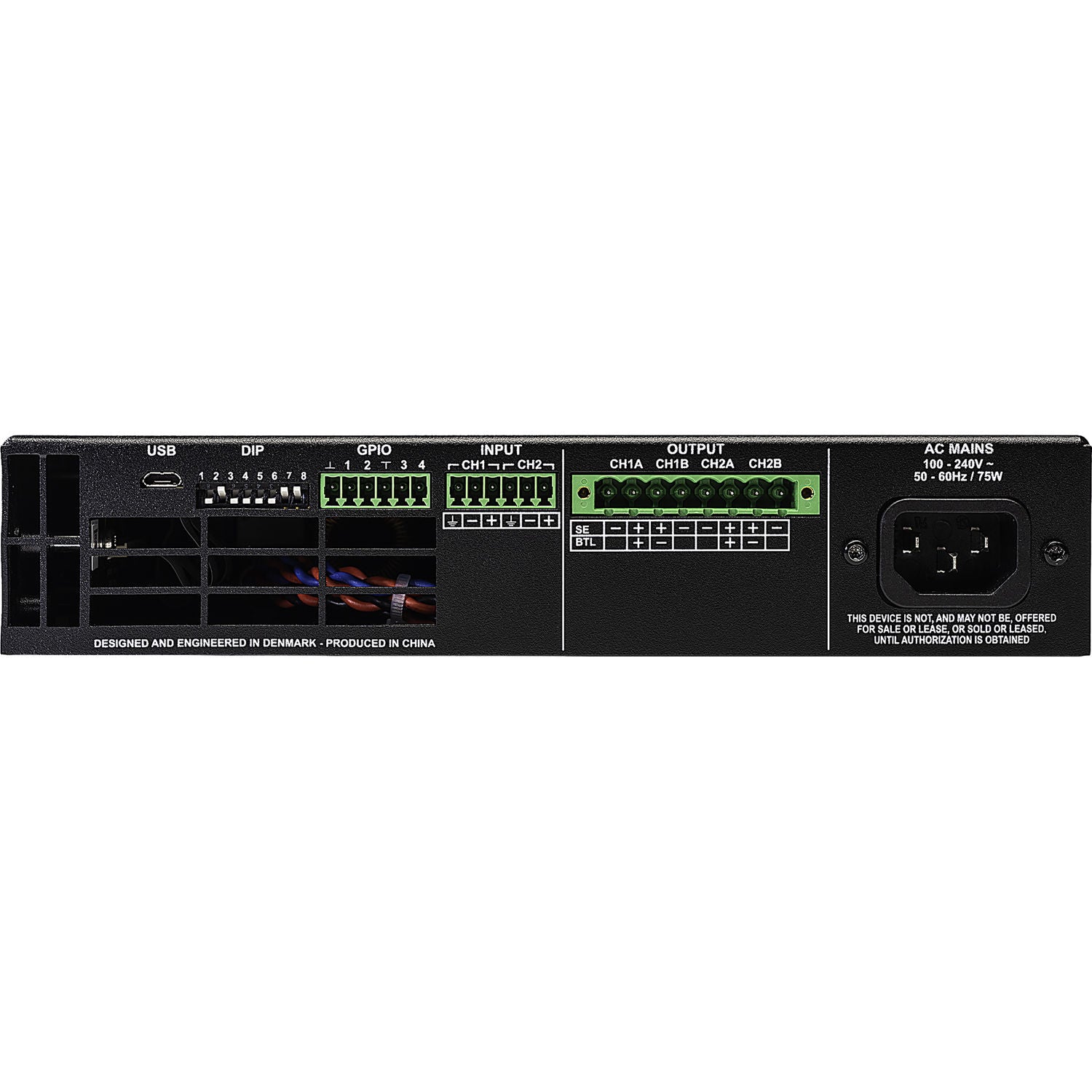

Connectivity

Analog Audio I/O

1x Block 6-Pin Balanced Line/Mic Input
1x Block 8-Pin Speaker Output

Digital Audio I/O

No

Network I/O

No

Other I/O

1x Block 8-Pin Control

USB I/O

1x USB-C (Service/Update)

Phantom Power

No

Wireless

No

Power

Input Power

100 to 240 VAC, 50 / 60 Hz

AC Power Connector

1x IEC 15 A / NEMA 5-15

Power Consumption

0.5 W (Standby)
150 W (Typical)

Physical

Display

Single-LED Indicators Only

Rackmount Size

1 U (with Non-Included Hardware, 1/2-Rack)

Cooling

1x Fan (Variable Speed)

Operating Conditions

32 to 104°F / 0 to 40°C

Dimensions

10.32 x 8.66 x 1.72" / 26.21 x 22 x 4.37 cm

Weight

3.55 lb / 1.61 kg

Packaging Information

Package Weight

5.19 lb

Box Dimensions (L × W × H)

19.4 x 13.7 x 3.4"
