Key Specifications

System Requirements (Mac)

OS X 10.8.5 or later (64-bit)
Intel Core 2 Duo processor (Intel Core i3 or faster recommended)
4 GB RAM (8 GB or more recommended)
USB 2.0 port
Internet connection for driver & bundled software installation

System Requirements (Windows)

Windows 7 SP1, 8.1, or 10 (32-bit or 64-bit)
Intel Core 2 Duo processor (Intel Core i3 or faster recommended)
4 GB RAM (8 GB or more recommended)
USB 2.0 port
Internet connection for driver & bundled software installation

Additional Requirements

30 GB hard disk space
1366 × 768 resolution monitor (high-DPI recommended) for Studio One

Host Application Compatibility

Native Mode: PreSonus Studio One 3.5.3
HUI Emulation: Pro Tools 12
Mackie Control Emulation: Logic 10.4, Cubase 9.4, Ableton 9.7+, Sonar, and more

Faders

Quantity: 16
Throw: 3.9" / 100 mm
Touch-sensitive, motorized
Resolution: 10-bit (1024 steps)

Display

16x High-Definition Digital Scribble-Strip Displays

Transport Controls

Play, Stop, Fast Forward, Rewind, Record, Loop, Return to Zero

Marker Controls

Drop Marker, Next Marker, Previous Marker, Next Event, Previous Event

Session Controls

Undo / Redo
Arm All
Solo / Mute Clear
Timecode
Track Management
Click On/Off
4x Programmable User Buttons
8x Function Buttons
Macro, Parameter Link, Bypass

Navigation Controls

Track Scroll, Channel Bank, Timeline Scroll
Horizontal Zoom, Vertical Zoom
Scrub, Nudge

Channel Controls

Level, Pan, Solo, Mute, Record Arm

Automation Modes

Touch, Latch, Trim, Write, Read, Off

Optional Fader Functions

Plug-in Editing, Bus Sends, Pan Control

Window Views

Mix, Project, Transport, Undo

Console Management

Show/Hide Audio Tracks, Inputs, MIDI Tracks, Buses, Outputs, VCAs, FX, Show All

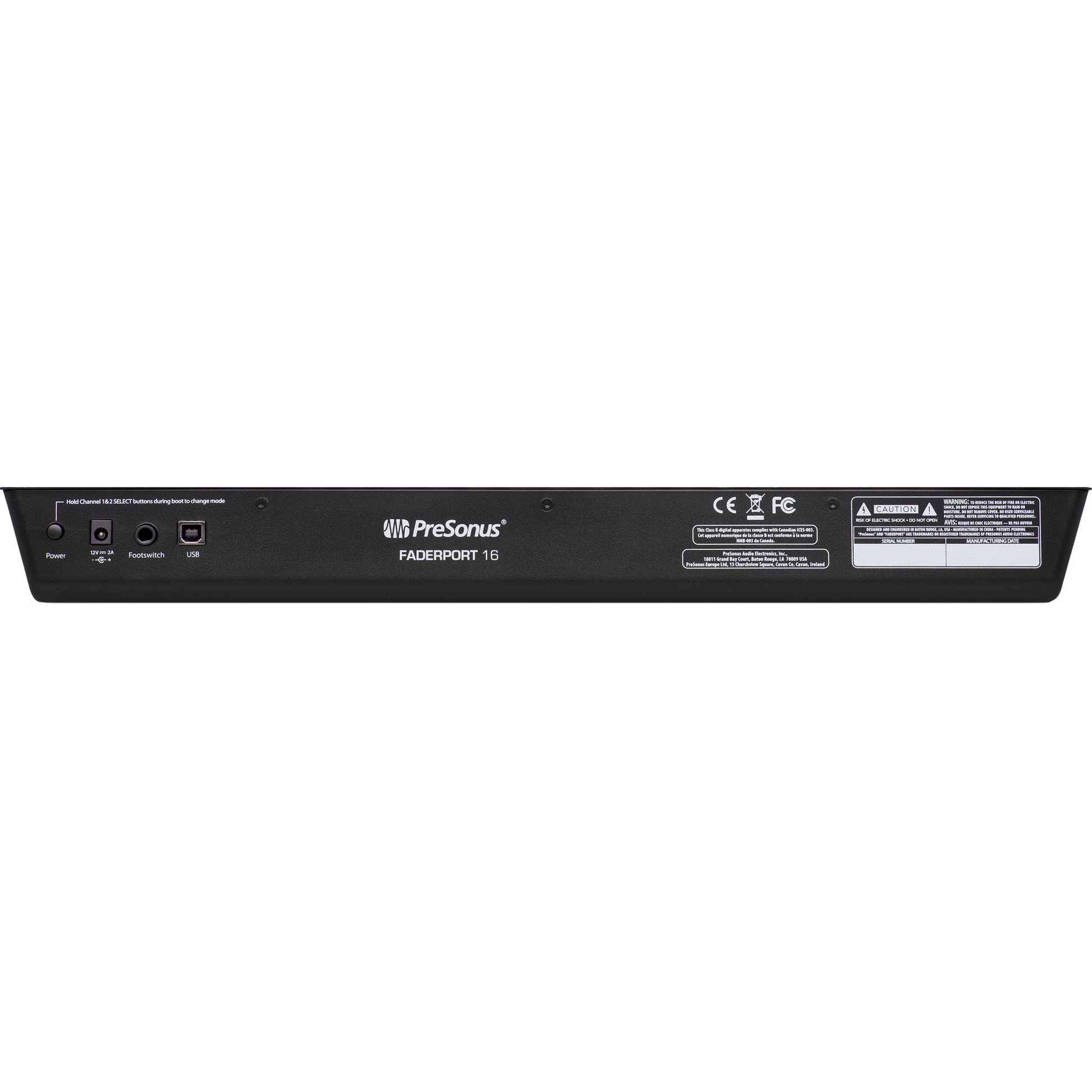

Footswitch Input

1x 1/4" Jack

USB Connection

USB 2.0 Type-B

Power Requirement

12 VDC, 1.2 A External Power Supply (Included)

Dimensions (HxWxD)

2.1 × 11.9 × 19.6" / 53.6 × 302.3 × 497.8 mm

Net Weight

8 lb / 3.6 kg

Package Weight

12.35 lb

Box Dimensions (LxWxH)

24.2 × 16 × 4.9"
