Key Specifications

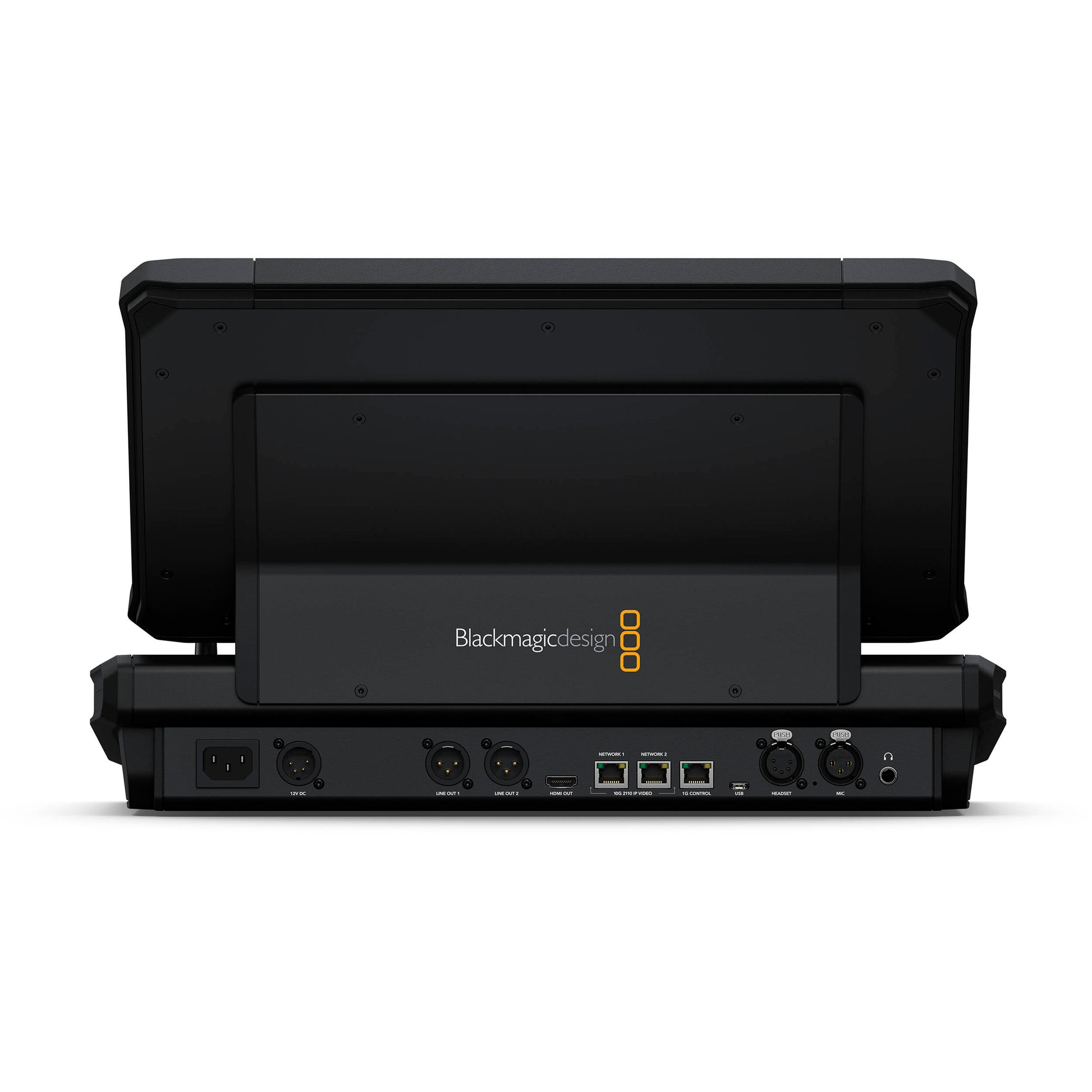

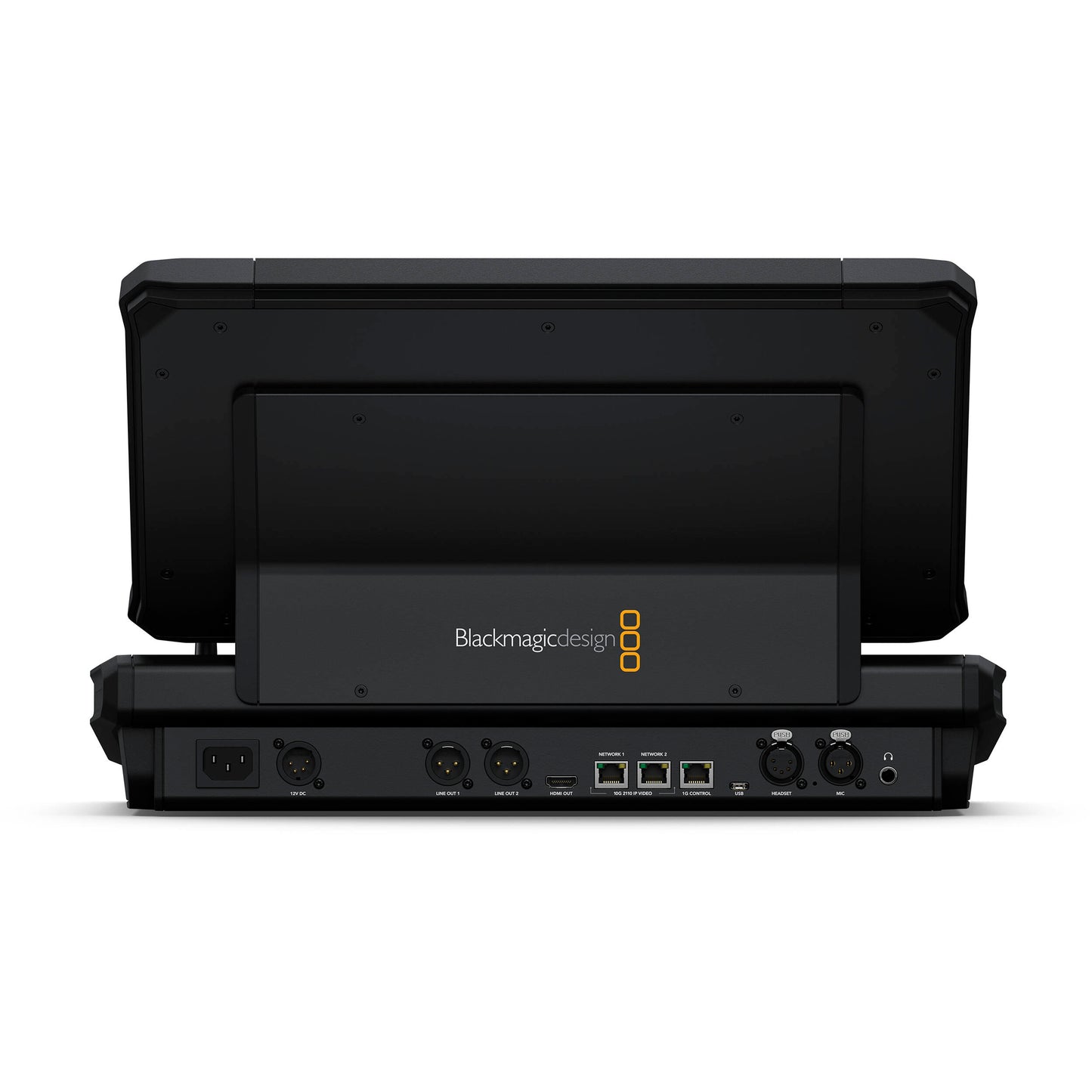

Connections

2110 IP Video and Audio Networks

2 x 10G RJ45 Ethernet connections.

Senders and Receivers per 10G Pair

Supports 2110 IP video and audio plus analog audio in and out of panel.

1G Control Network

1 x 1G RJ45 for computer connection, configuration and software updates.

HDMI Monitor Outputs

1

Analog Audio Inputs

Input 1

1 x 3-pin XLR for mic level analog audio.

Input 2

1 x 5-pin XLR for talkback headset.

Analog Audio Outputs

Output 1

2 x 3-pin XLR for line level analog audio.

Output 2

1 x 5-pin XLR for talkback headset.

Headphone Outputs

2 x 6.35mm headphone jack.

Computer Interface

USB Interface

1 x USB Type-C for computer connection, software configuration and software updates.

HDMI Video Output

1 x HDMI Type A.

Power

AC Power Input

1 x IEC C14 power input.

DC Power Input

1 x 4-pin XLR 12V DC power input.

Display

Built in Display

1 x 11.6 inch 1920 x 1080 LCD touch screen.

HDMI Out

HD or Ultra HD

Video Standards

720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

Software

Software Included

Fairlight Live

Operating System

Blackmagic OS

Software Upgrade

Internal software upgrade via updater application.
