Key Specifications

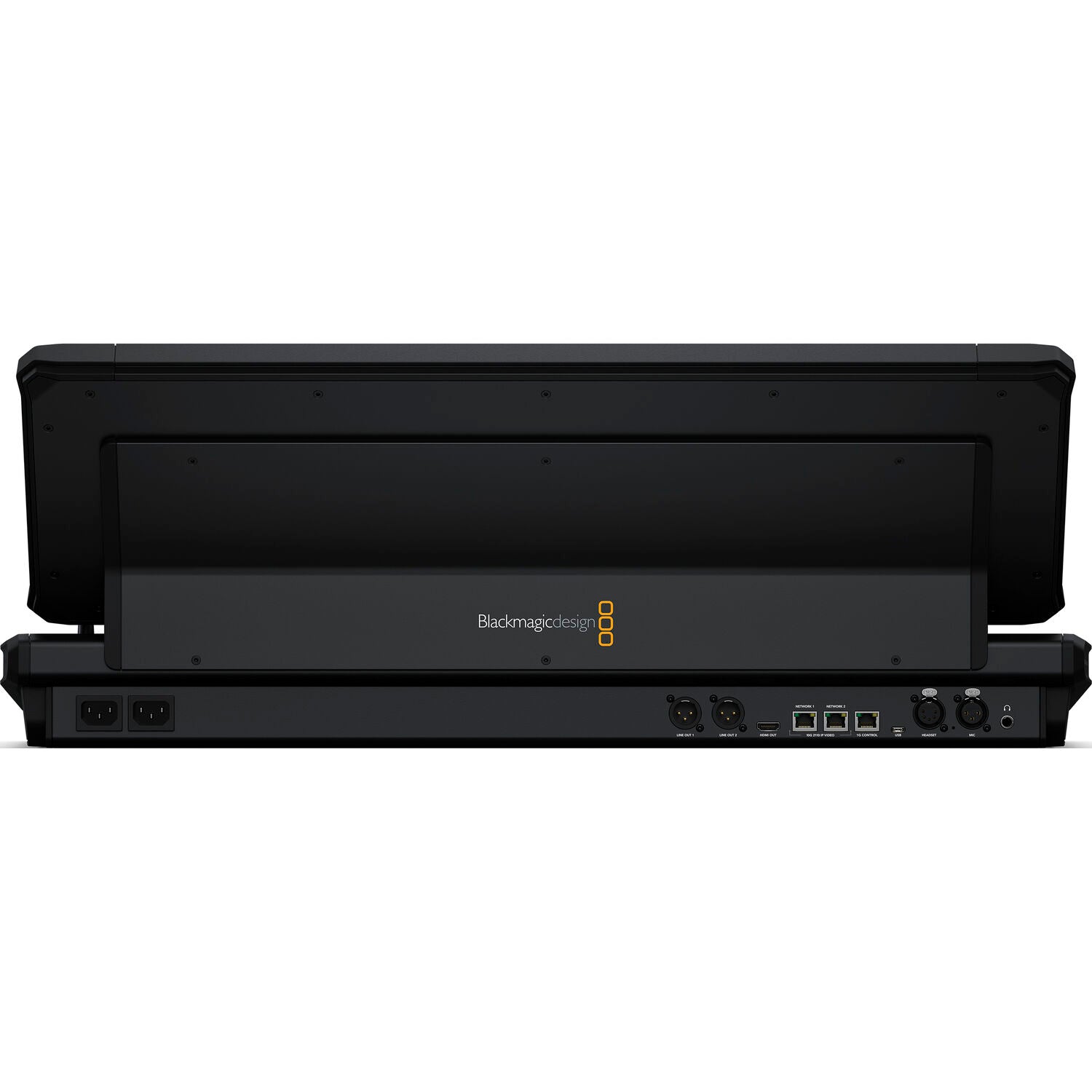

Connections

2110 IP Video and Audio Networks

2 x 10G RJ45 Ethernet connections.

Senders and Receivers per 10G Pair

Supports 2110 IP video and audio plus analog audio in and out of panel.

1G Control Network

1 x 1G RJ45 for computer connection, configuration and software updates.

HDMI Monitor Outputs

1

Analog Audio Inputs

Input 1

1 x 3-pin XLR for mic level analog audio.

Input 2

1 x 5-pin XLR for talkback headset.

Analog Audio Outputs

Output 1

2 x 3-pin XLR for line level analog audio.

Output 2

1 x 5-pin XLR for talkback headset.

Headphone Outputs

2 x 6.35mm headphone jack.

Computer Interface

USB Interface

1 x USB Type-C for computer connection, software configuration and software updates.

HDMI Video Output

1 x HDMI Type A.

Power

AC Power Input

2 x IEC C14 power inputs.

Display

Built in Display

2 x 11.6 inch 1920 x 1080 LCD touch screens.

HDMI Out

HD or Ultra HD

Video Standards

720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

Talkback

Microphone

1 x built in talkback microphone.

Talkback Connections

1 x 5-pin XLR headset
1 x 3-pin XLR Mic input
2 x 6.35mm headphone sockets
2 x 3-pin XLR audio monitor outputs.

Talkback Selection

Talkback groups, direct to channel, or all.

Talkback Groups

4

Software

Software Included

Fairlight Live

Operating Systems

Mac 15.0 Sequoia,
Mac 26.0 Tahoe or later.
Windows 11

Settings Control

Fairlight Live software when connected by Ethernet or USB.

Power Requirements

Power Supply

2 x 100 - 240V AC 50/60Hz internal power supplies.

Power Inputs

2 x IEC C14 sockets.
