Key Specifications

Active/Passive

Passive

Number of Included Speakers

1

Speaker Configuration

2-Way

Power Handling

150 W RMS / 1200 W Peak

Impedance

8 Ohms

HF Driver

1 × 1.7" / 4.3 cm Dome Tweeter

LF Driver

1 × 8" / 20.3 cm

Frequency Range

53 Hz – 20 kHz (-10 dB)

Color

Black

Speaker

Active/Passive

Passive

Number of Included Speakers

1

Speaker Configuration

2-Way

Power Handling

150 W RMS / 1200 W Peak

Impedance

8 Ohms

Enclosure Type

Bass-Reflex

Drivers

HF Driver

1 × 1.7" / 4.3 cm Dome Tweeter

LF Driver

1 × 8" / 20.3 cm

Performance

Frequency Range

53 Hz – 20 kHz (-10 dB)

Frequency Response

75 Hz – 17 kHz

Maximum SPL

122 dB (Peak), 116 dB (Continuous)

Sensitivity

94 dB

Coverage Angle

110° H × 60° V

Connectivity

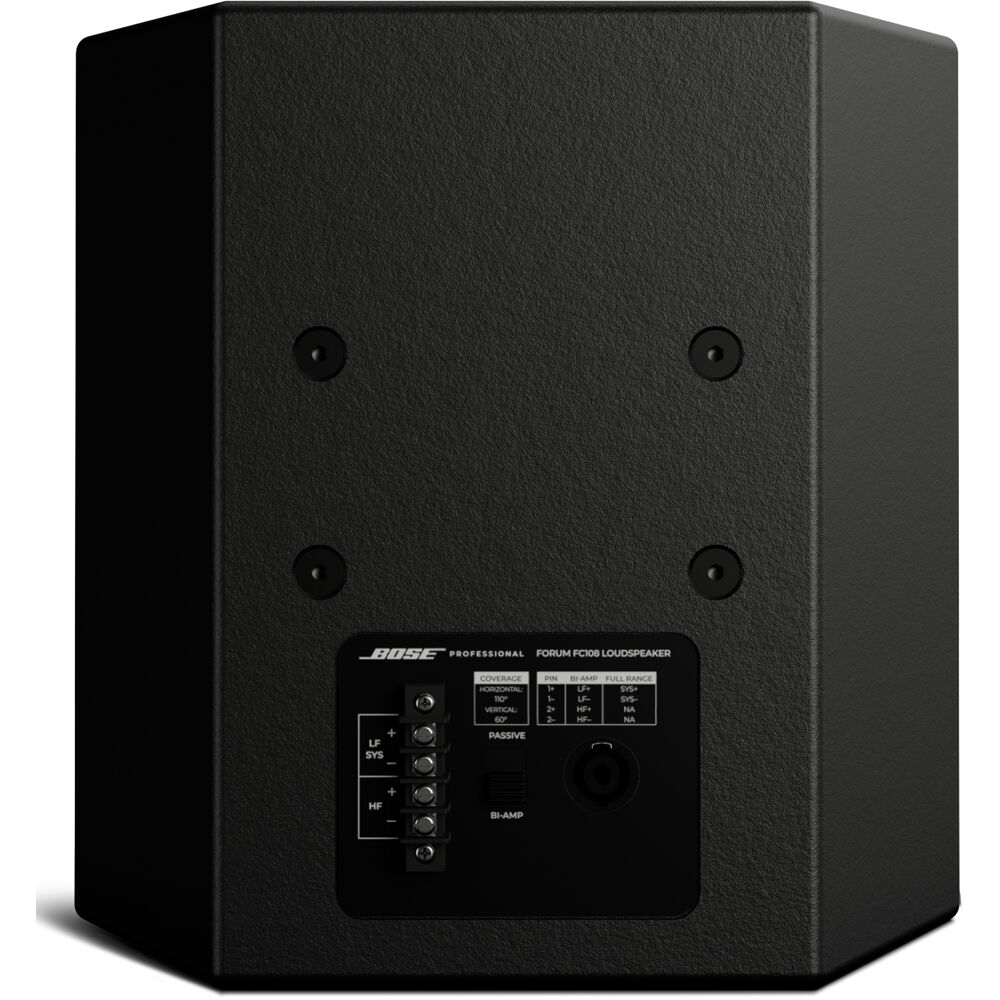

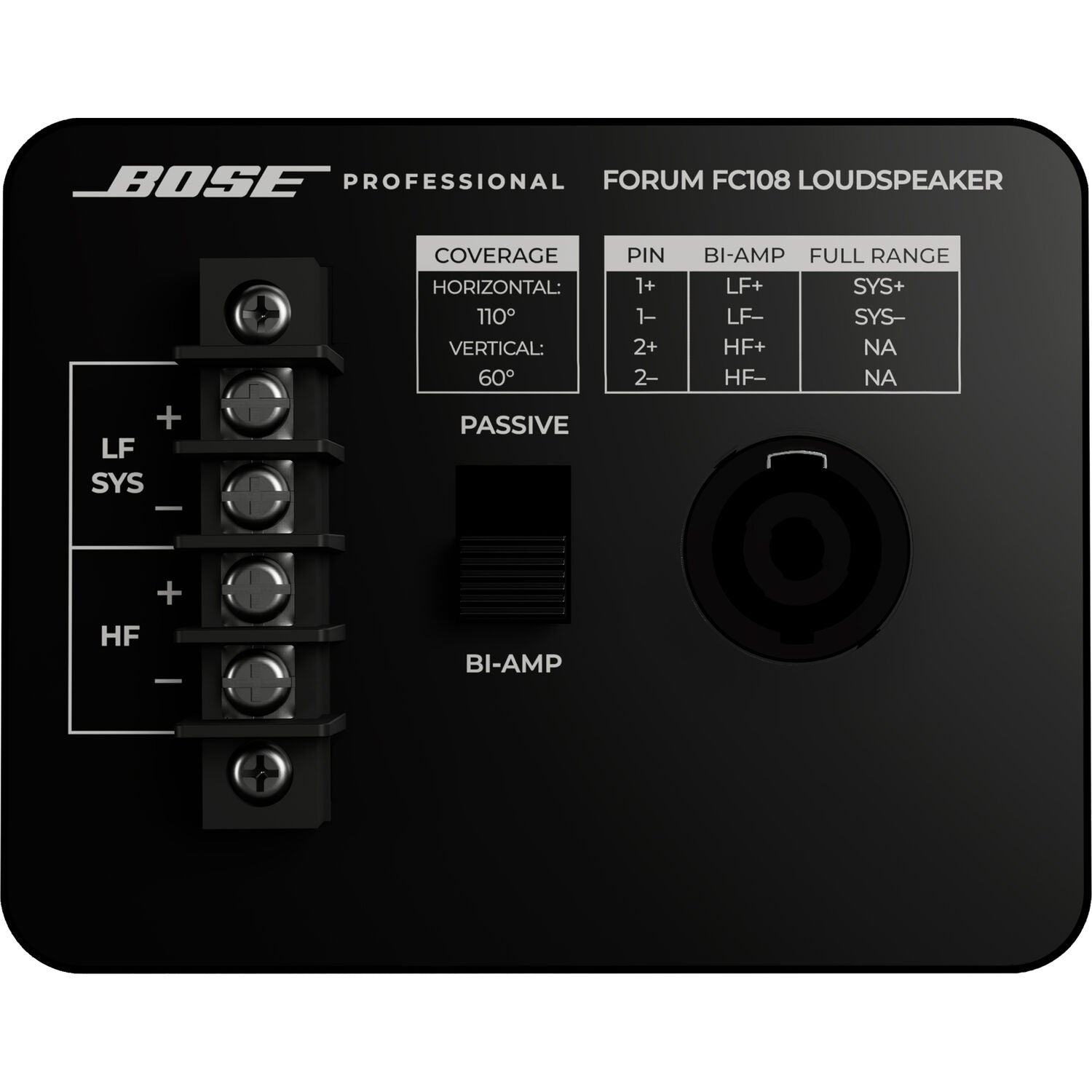

Inputs/Outputs

1 × speakON NL4 Speaker Input, 1 × Barrier Strip Speaker

Maximum Wire Gauge

12 AWG / 3.3 mm

Physical

Color

Black

Mounting

6 × M10 Fly Point (Bottom, Side, Top), 4 × M8 Bracket Point (Rear), 4 × M6 Fly Point (Bottom, Side, Top), 3 × M8 Fly Point (Bottom)

Construction Material

Plywood, Steel

Dimensions

12.5 × 12.5 × 11 in / 31.8 × 31.8 × 27.9 cm

Weight

28.1 lb / 12.7 kg (Each Speaker)
