Key Specifications

Active/Passive

Passive

Number of Included Speakers

1

Speaker Configuration

2-Way

Power Handling

300 W RMS / 2400 W Peak

Impedance

8 Ohms

HF Driver

1 × 3" / 7.6 cm Dome Tweeter

LF Driver

1 × 12" / 30.5 cm

Frequency Range

48 Hz – 20 kHz (-10 dB)

Color

Black

Speaker

Active/Passive

Passive

Number of Included Speakers

1

Speaker Configuration

2-Way

Power Handling

300 W RMS / 2400 W Peak

Impedance

8 Ohms

Enclosure Type

Bass-Reflex

Drivers

HF Driver

1 × 3" / 7.6 cm Dome Tweeter

LF Driver

1 × 12" / 30.5 cm

Performance

Frequency Range

48 Hz – 20 kHz (-10 dB)

Frequency Response

60 Hz – 18 kHz

Maximum SPL

132 dB (Peak), 126 dB (Continuous)

Sensitivity

96 dB

Coverage Angle

110° H × 60° V

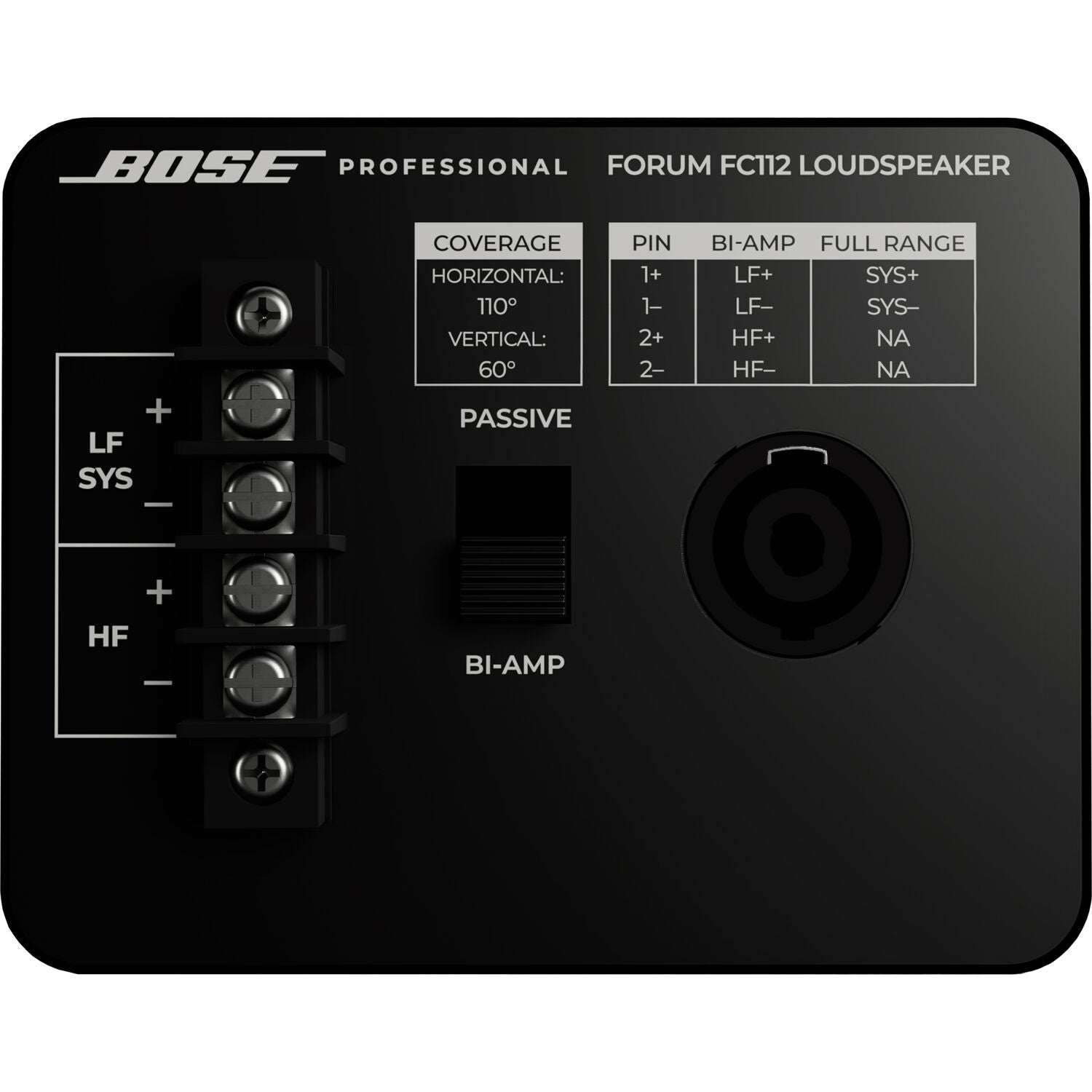

Connectivity

Inputs/Outputs

1 × speakON NL4 Speaker Input, 1 × Barrier Strip Speaker

Maximum Wire Gauge

12 AWG / 3.3 mm

Physical

Color

Black

Mounting

6 × M10 Fly Point (Bottom, Side, Top), 4 × M6 Fly Point (Bottom, Side, Top), 3 × M8 Fly Point (Bottom)

Construction Material

Plywood, Steel

Dimensions

18 × 18 × 14.1 in / 45.7 × 45.7 × 35.8 cm

Weight

44.3 lb / 20.1 kg (Each Speaker)
